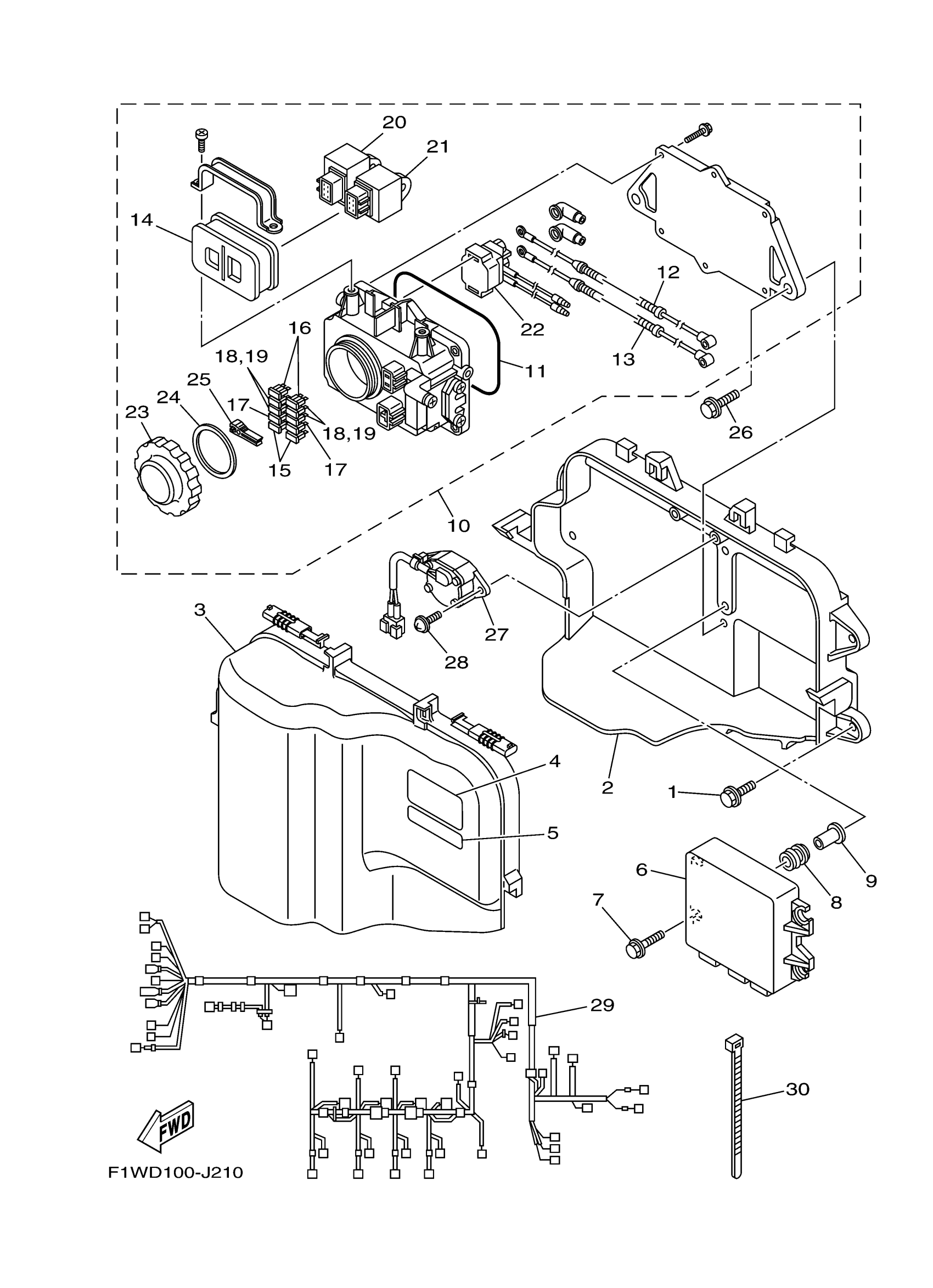

Yamaha FX1800AJ (FX CRUISER SHO) F1WD 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

Unavailable

2

PLATE

6S5-81845-00-00

Unavailable

3

COVER

6S5-81942-11-00

Unavailable

4

MARK 3

6B6-83623-00-00

Unavailable

5

LABEL, CAUTION 7

60E-83627-00-00

Unavailable

6

ENGINE CONTROL UNIT ASSY

6S5-8591A-01-00

Unavailable

7

BOLT, WITH WASHER

90119-06311-00

Unavailable

8

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

9

. COLLAR

90387-06119-00

Unavailable

10

FUSE BOX ASSY

6S5-82170-00-00

Unavailable

11

. GASKET, TERMINAL

6D3-81921-00-00

Unavailable

12

. WIRE, PLUS LEAD

6S5-82115-00-00

Unavailable

13

. WIRE, LEAD

6S5-82117-00-00

Unavailable

14

. DAMPER

6D3-82157-00-00

Unavailable

15

FUSE

5JJ-82151-20-00

$7.99

16

FUSE

5JJ-82151-60-00

Unavailable

17

. FUSE (3A)

67F-82151-30-00

Unavailable

18

. FUSE (10A)

67F-82151-40-00

Unavailable

19

. FUSE (10A)

67F-82151-40-00

Unavailable

20

RELAY ASSY

60E-81950-00-00

Unavailable

21

. RELAY ASSY

68V-81950-00-00

Unavailable

22

. STARTER RELAY ASSY

6B6-81940-00-00

Unavailable

23

. CAP

66V-8132W-00-00

Unavailable

24

. GASKET

66V-81844-00-00

Unavailable

25

. PULLER, FUSE

67F-2812A-00-00

Unavailable

26

BOLT, WITH WASHER

90119-08123-00

Unavailable

27

SWITCH ASSY

6S5-8259E-00-00

Unavailable

28

SCREW, TAPPING

97780-60520-00

Unavailable

29

WIRE HARNESS ASSY 1

6S5-8259L-03-00

Unavailable

30

CLAMP

90465-14M66-00

Unavailable
