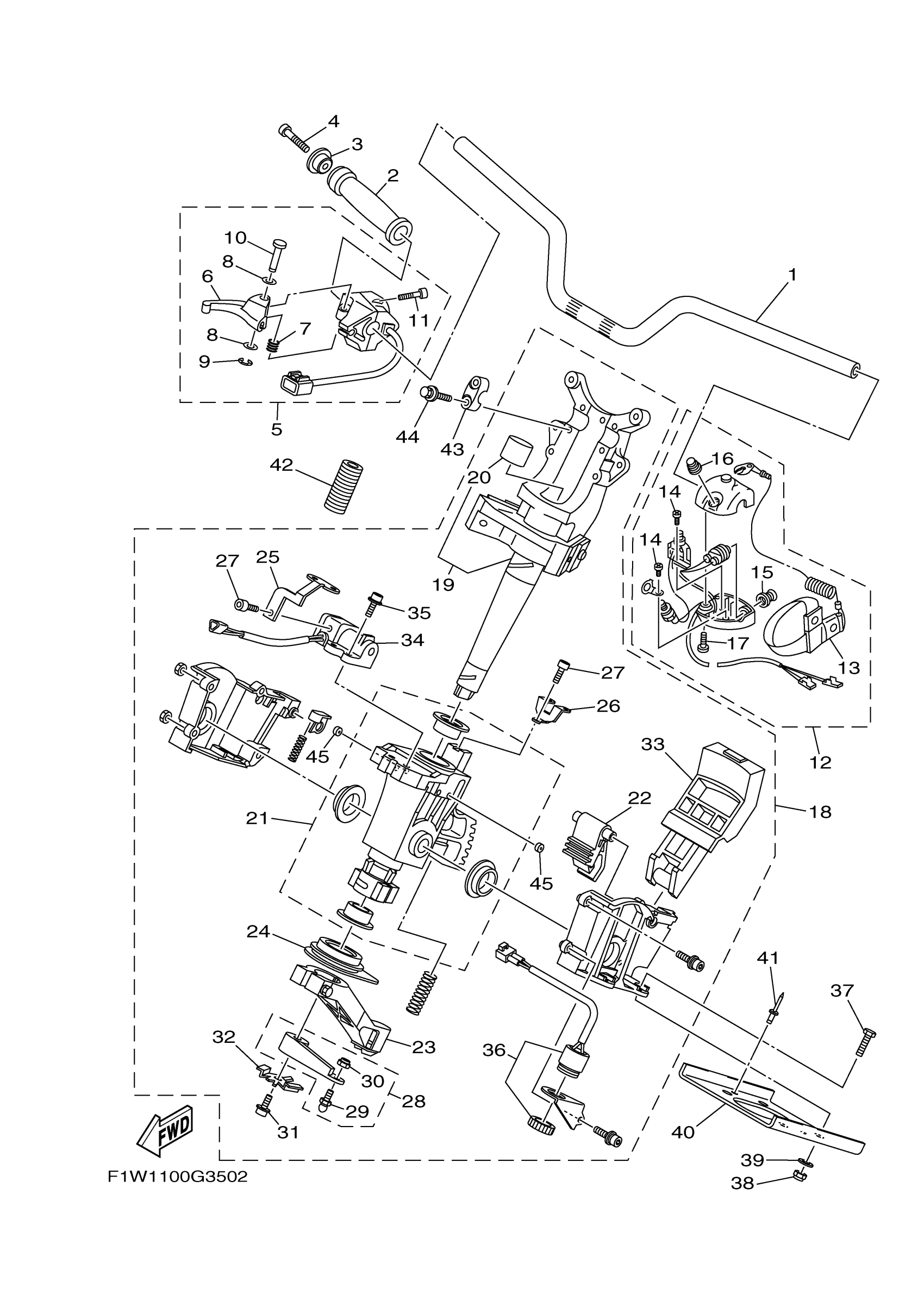

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F1S-61552-00-00

$168.17

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

F1S-U155F-00-00

$63.18

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F1W-67250-01-00

$468.17

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

. BOLT, THROTTLE

F1X-6725F-01-00

$3.64

12

SWITCH BOX ASSY

F1S-68310-01-00

$234.83

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER AS

F1W-61400-19-00

Unavailable

19

. SHAFT ASSY

F1W-67410-10-00

Unavailable

20

.. PIPE, SEAL

F1W-61435-00-00

$15.89

21

. TUBE & BUSHING SET

F1W-6773D-00-00

$303.02

22

. LOCK 1

F1S-61782-00-00

$56.05

23

. CABLE STOPPER ASSY

F1S-6146A-00-00

$130.29

24

. SEAL, RUBBER

F1S-6143C-00-00

$34.49

25

. STAY 1

F1W-65938-00-00

$23.47

26

. STAY 2

F1S-65939-00-00

$16.99

27

SCREW

F1B-613C1-10-00

Unavailable

28

ARM ASSY.

F1S-6153R-02-00

$90.89

29

STUD, JOINT BALL

EU0-61461-02-00

$14.38

30

NUT, SELF-LOCKING

95720-06300-00

$1.82

31

BOLT

F1W-61355-10-00

Unavailable

32

. PLATE, RETAINING

F1W-6142B-00-00

$18.49

33

. LEVER ASSY

F1W-6151M-00-00

$62.11

34

. SENSOR ASSY

F1W-68303-00-00

$603.02

35

. BOLT

F1S-61355-00-00

$10.99

36

BUZZER

F1S-68341-00-00

$113.62

37

BOLT (62K)

97095-08035-00

Unavailable

38

NUT, NYLON (6J8)

95780-08300-00

$10.55

39

WASHER

F1W-U725E-00-00

$11.35

40

PLATE, RETAINING

F1X-U1554-00-00

$54.53

41

RIVET, BLIND

90267-489U6-00

$1.37

42

TUBE

90447-22803-00

Unavailable

43

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

44

BOLT, WITH WASHER

90119-089U1-00

$3.23

45

. PLUG

F1W-6358B-00-00

$19.68
