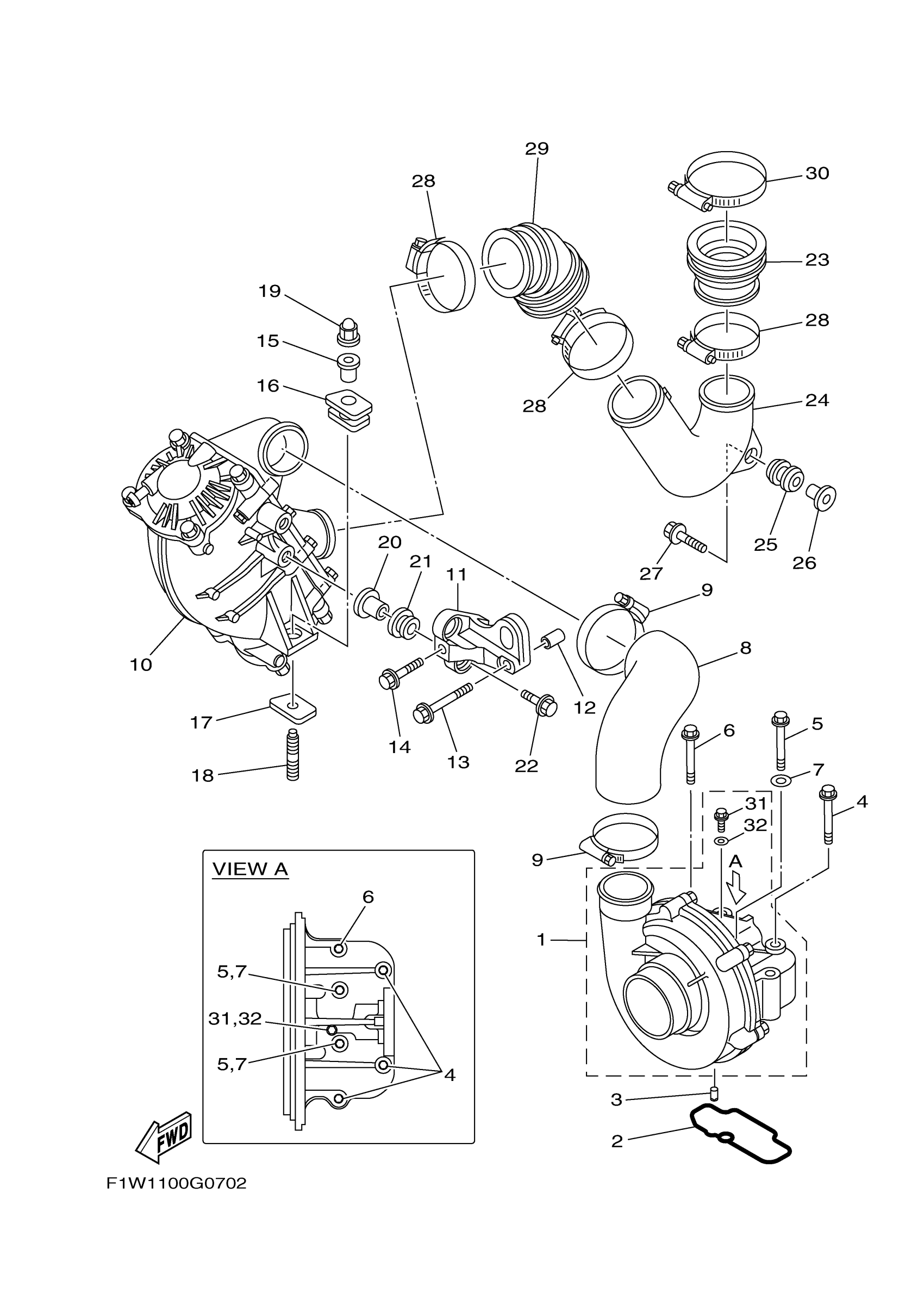

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 INTAKE 2 Diagram

#

Description
Price

1

SUPER CHARGER ASSY

6S5-141A0-08-00

Unavailable

2

. O-RING

6S5-1416A-00-00

$11.01

3

PIN, DOWEL

93604-10M03-00

$4.17

4

BOLT, FLANGE

95814-08065-00

$3.29

5

BOLT, FLANGE

95814-06065-00

$1.70

6

BOLT, FLANGE

90105-08188-00

$5.31

7

WASHER, PLATE

90201-06028-00

$2.39

8

PIPE

6S5-14349-00-00

$369.10

9

HOSE CLAMP ASSY

90450-75003-00

$29.40

10

AIR COOLER ASSY.

6S5-13670-10-00

Unavailable

11

BRACKET, AIR COOLER

6S5-13691-00-94

$111.75

12

PIN, DOWEL(4JT)

99590-14016-00

$3.69

13

BOLT, WITH WASHER

90119-10047-00

$7.06

14

BOLT, WITH WASHER

90119-10046-00

$6.18

15

COLLAR

90387-11007-00

$8.07

16

GROMMET

6S5-14435-01-00

$4.41

17

PLATE

6S5-14243-01-00

$8.07

18

BOLT, STUD

90116-10044-00

$11.01

19

NUT, CAP

90176-10001-00

$3.41

20

COLLAR

90387-11008-00

$19.10

21

GROMMET(62L)

90480-21M63-00

Unavailable

22

BOLT, WITH WASHER

90119-10011-00

$5.74

23

PIPE, INTAKE

6S5-13652-00-00

$122.04

24

PIPE, BOOST

6S5-13651-00-00

$155.87

25

GROMMET

90480-22M15-00

$11.01

26

COLLAR

90387-08M37-00

$9.68

27

BOLT, WITH WASHER

90119-08187-00

$2.82

28

HOSE CLAMP ASSY

90450-70005-00

$39.69

29

PIPE

6S5-14148-00-00

$108.81

30

HOSE CLAMP ASSY

90450-70M13-00

$45.57

31

. BOLT, FLANGE

90105-05020-00

$1.32

32

. GASKET

6S5-14199-00-00

$1.70
