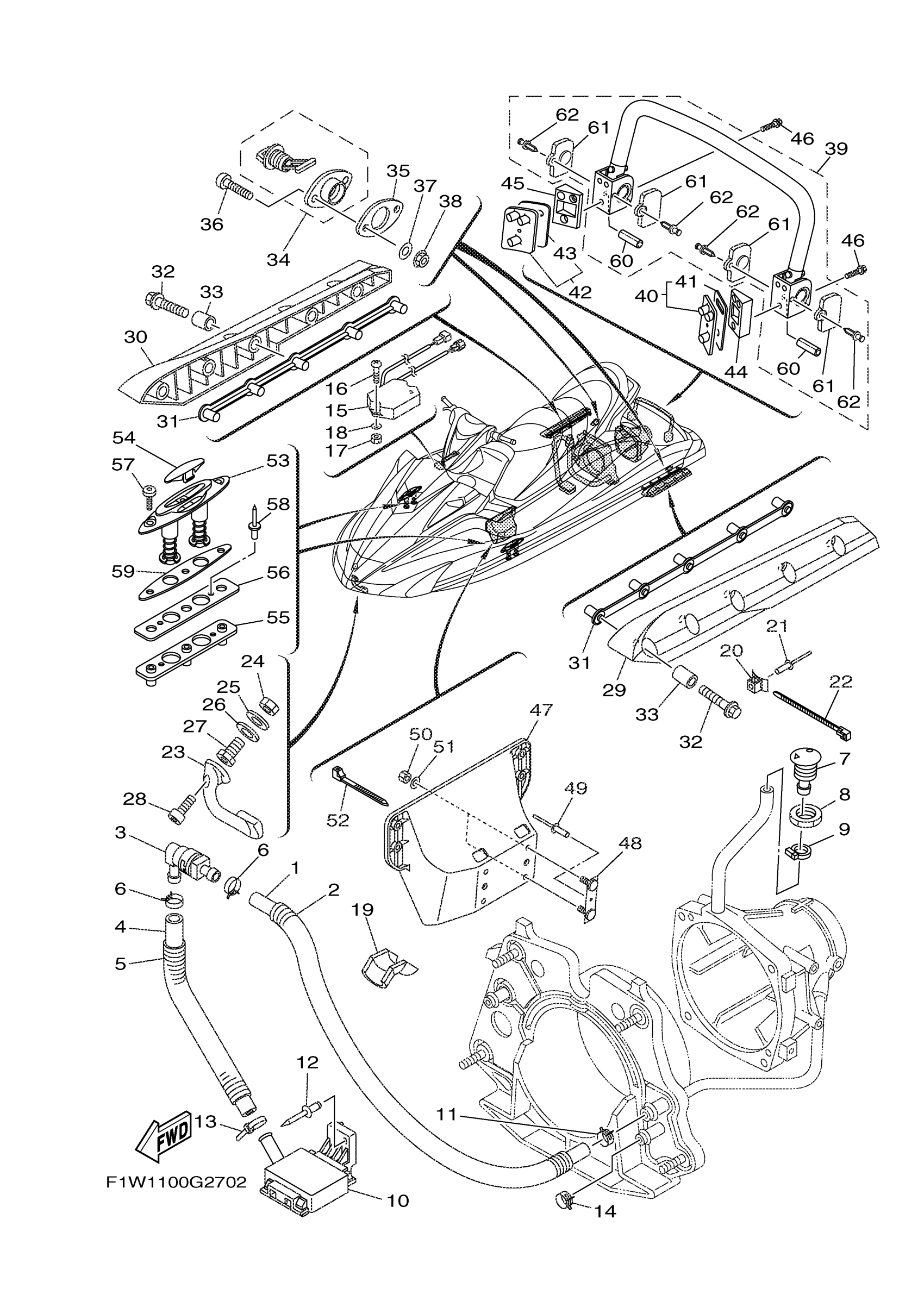

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 HULL DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.67

2

HOSE

90446-27M73-00

$18.55

3

JOINT, HOSE

68N-5112T-00-00

$47.39

4

HOSE (L500)

90445-20800-00

$12.67

5

HOSE(63M)

90446-27M55-00

$14.15

6

CLIP

90467-18804-00

$2.87

7

SPOUT

F1W-U269B-00-00

$1.87

8

NUT

EU0-61652-00-00

$11.77

9

BAND, HOSE 18

90601-118UF-00

$2.22

10

STRAINER, BILGE

F1B-U761D-02-00

$5.35

11

CLIP

90467-21800-00

$3.02

12

RIVET, BLIND

90267-489U8-00

$1.37

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-200A0-00

$7.59

15

SENSOR, COMPASS

F1X-U8K22-01-00

$522.37

16

SCREW, PAN HEAD

9788R-05025-00

$2.66

17

NUT, FLANGE

9572R-05300-00

$1.51

18

WASHER

9299R-05200-00

$4.60

19

TRIM, 1

F1S-U828H-01-00

$6.42

20

CLAMP COMP (EU0)

90600-91736-00

Unavailable

21

RIVET, BLIND

90267-48802-00

$1.98

22

CLAMP

90464-32801-00

$1.29

23

BOW EYE 1

F1K-61624-00-00

$43.69

24

NUT.HEX.(COARS)

99780-12600-00

$2.80

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

WASHER

F0X-61637-00-00

$1.24

27

NUT

F0X-61652-01-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.02

29

STABILIZER LH

F1S-U883N-01-00

$32.82

30

STABILIZER RH

F1S-U883P-01-00

$32.82

31

BRACKET,STABILIZER

F1X-U883T-02-00

$43.27

32

BOLT,WASHER BASED

90105-088F9-00

$2.91

33

SPACER

F1K-U8169-00-00

Unavailable

34

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.91

35

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

36

SCREW, PAN HEAD

9788R-05025-00

$2.66

37

WASHER

9299R-05200-00

$4.60

38

NUT, FLANGE

9572R-05300-00

$1.51

39

LADDER, STEP ASSY

F1W-U278A-01-00

$292.52

40

BRACKET, LADDER LH

F2H-U278F-00-00

Unavailable

41

. PACKING, BRKT 1

F2H-U278H-00-00

Unavailable

42

BRACKET, LADDER RH

F2H-U278G-00-00

Unavailable

43

. PACKING, BRKT 1

F2H-U278H-00-00

Unavailable

44

BRACKET 1

F2H-U278K-00-00

Unavailable

45

BRACKET 2

F2H-U278L-00-00

Unavailable

46

BOLT, WITH WASHER

90119-08844-00

$1.37

47

BRACKET 2

F1W-U8572-01-00

$47.75

48

BRACKET

F1K-U826C-03-00

$12.67

49

RIVET (EU0)

90267-48938-00

$4.72

50

NUT, NYLON (6J8)

95780-08300-00

$11.48

51

WASHER

9299R-08200-00

Unavailable

52

CLAMP

90464-32801-00

$1.29

53

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

54

COVER

F1X-U826D-01-00

$2.00

55

BRACKET

F1X-U826C-10-00

$12.20

56

PACKING

F1X-U2157-00-00

$1.72

57

BOLT

F1W-U2624-00-00

$2.44

58

RIVET, BLIND

90267-489U6-00

Unavailable

59

PACKING

F4G-U2284-10-00

$3.02

60

. SLEEVE 1

F1W-U771H-00-00

$24.39

61

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.43

62

. PIN

F2C-U1314-00-00

$2.58
