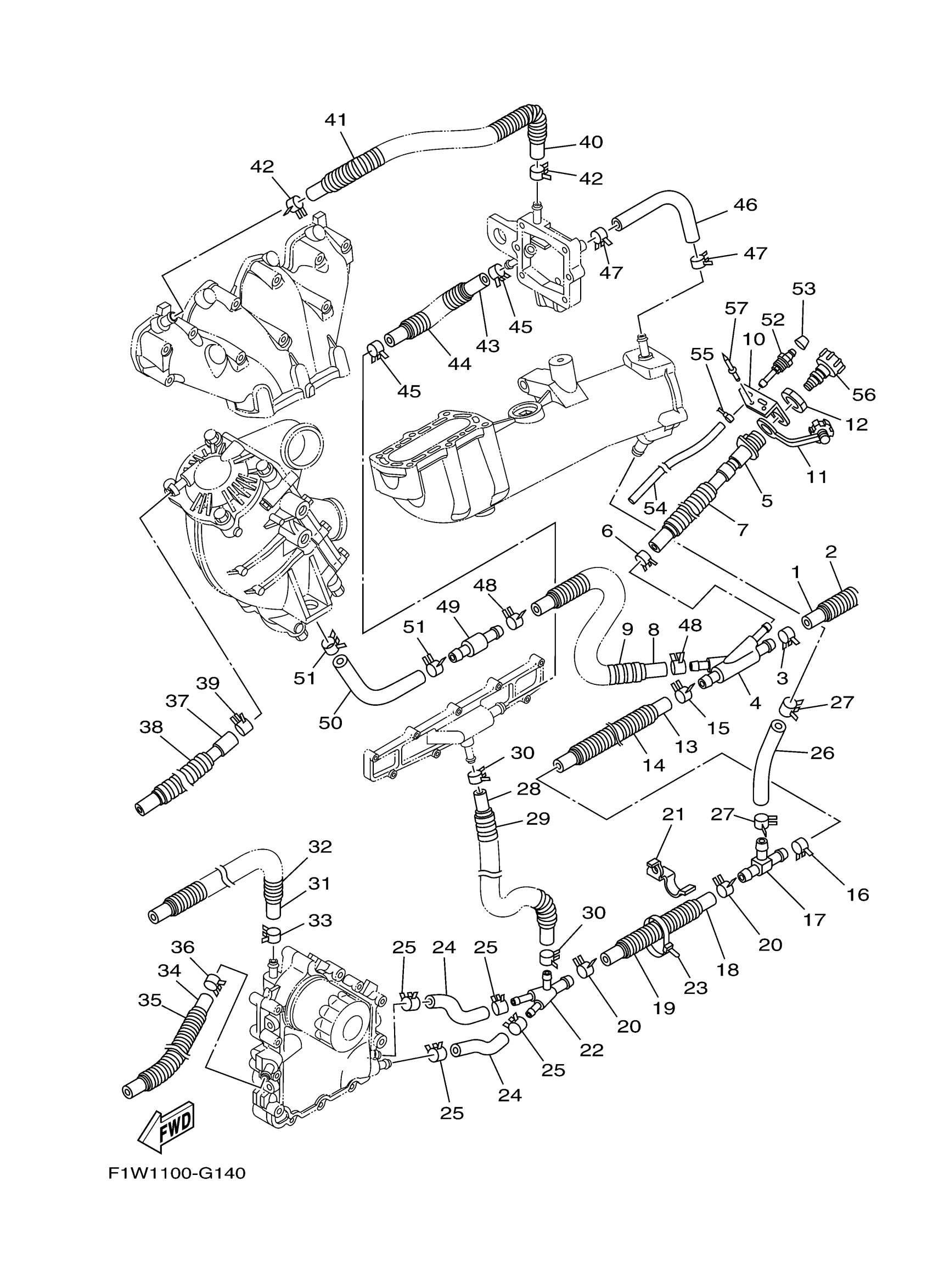

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.86

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A0-00

$7.40

4

JOINT, HOSE 1

6CS-12581-00-00

$32.99

5

JOINT ASSY

63M-12580-00-00

$99.98

6

CLIP

90467-150A0-00

$3.33

7

TUBE (L485)

90447-19801-00

$3.56

8

HOSE (L970)

90445-21807-00

$14.38

9

TUBE (L850)

90447-22802-00

$4.09

10

STAY

6S5-12443-00-00

$22.71

11

CAP,1

682-84385-01-00

$9.08

12

NUT

EU0-61652-00-00

$11.48

13

HOSE 2

6S5-1243E-01-00

$22.11

14

TUBE

F2T-U773D-00-00

$1.36

15

CLIP

90467-200A0-00

$7.40

16

CLIP

90467-200A0-00

$7.40

17

JOINT, HOSE 3

6S5-12584-00-00

$5.45

18

HOSE,3

6S5-1243F-00-00

$18.92

19

TUBE(L140)

90447-22013-00

Unavailable

20

CLIP

90467-200A0-00

$7.40

21

CLAMP

90462-10044-00

$15.49

22

JOINT, HOSE 2

6S5-12582-00-00

Unavailable

23

CLAMP(3XW)

90464-35132-00

Unavailable

24

HOSE 6

6S5-1244J-00-00

$11.35

25

CLIP

90467-160A0-00

$2.95

26

HOSE 6

6S5-12589-01-00

Unavailable

27

CLIP

90467-200A0-00

$7.40

28

HOSE 5

6S5-1244H-00-00

$20.99

29

TUBE (L150)

90447-19011-00

$2.73

30

. CLIP

90467-150A1-00

$3.33

31

HOSE 5

6S5-12588-00-00

$16.22

32

HOSE, WITH SPRING (L=630)

90447-19006-00

$6.39

33

CLIP

90467-160A0-00

$2.95

34

HOSE

6S5-14987-00-00

$31.80

35

HOSE, WITH SPRING (L=630)

90447-19006-00

$6.39

36

CLIP

90467-160A0-00

$2.95

37

HOSE 8

6S5-12552-00-00

$22.71

38

HOSE (L420)

90446-24M89-00

$9.08

39

CLIP

90467-170A0-00

$2.80

40

HOSE 2

6S5-12577-00-00

$15.89

41

HOSE(63M)

90446-27M55-00

Unavailable

42

CLIP

90467-160A0-00

$2.95

43

HOSE 4

6S5-12579-00-00

$14.44

44

TUBE (L150)

90447-19011-00

$2.73

45

CLIP

90467-160A0-00

$2.95

46

HOSE, 4

6S5-1244G-00-00

$8.32

47

CLIP

90467-160A0-00

$2.95

48

CLIP

90467-200A0-00

$7.40

49

JOINT, HOSE 4

6S5-12594-00-00

$4.55

50

HOSE 1

6S5-12576-01-00

$22.49

51

CLIP

90467-200A0-00

$7.40

52

NIPPLE, GREASE

61L-5169A-00-00

$7.40

53

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

54

HOSE (L445)

90445-09M21-00

Unavailable

55

CLAMP

90465-10098-00

$1.68

56

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

57

RIVET (EU0)

90267-48938-00

$5.00
