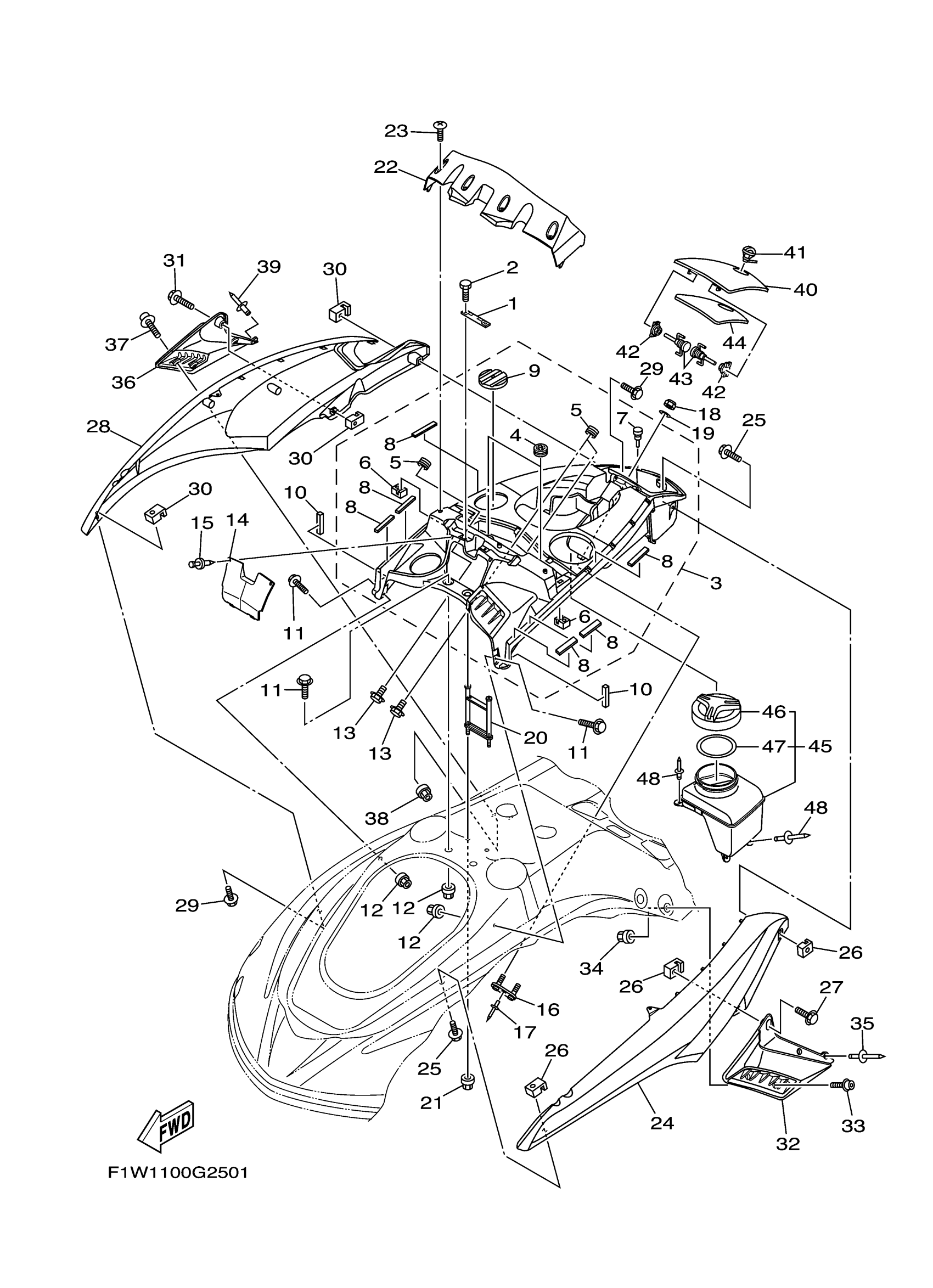

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 ENGINE HATCH 1 Diagram

#

Description
Price

1

HOOK,LID LOCK

F1W-U517F-00-00

$2.76

2

BOLT

90101-05800-00

$1.42

3

CENTER COVER ASSY.

F1W-U5508-02-00

Unavailable

3

CENTER COVER ASSY.

F1W-U5508-22-00

Unavailable

4

. DAMPER 1

F1X-U828E-01-00

$2.24

5

. GROMMET

90480-19800-00

$12.20

6

NUT

F1X-U517E-01-00

$7.89

7

. PLUG

90605-502U2-00

$2.39

8

DAMPER 2

F0X-U515E-02-00

$1.07

9

MAT

F1X-U3844-01-00

$1.94

10

PACKING

F1W-U518D-00-00

Unavailable

11

BOLT, WITH WASHER

90119-06880-00

$3.65

12

NUT, SELF-LOCKING

90185-06014-00

$5.82

13

BOLT, WITH WASHER

90119-05803-00

$4.24

14

SEAL, COVER CENTER

F1W-U555B-00-00

$5.22

15

RIVET

F1W-U2698-00-00

$1.87

16

BRACKET

F1X-U5372-00-00

Unavailable

17

RIVET (EU0)

90267-48938-00

$4.72

18

NUT, NYLON

9572R-06300-00

$2.93

19

WASHER

9299R-06200-00

$0.43

20

BRKT., COVER CENTER 1

F1W-U555D-02-00

$41.78

21

NUT, SELF-LOCKING

90185-06014-00

$5.82

22

COVER METER

F1W-U8262-02-P0

Unavailable

22

COVER METER

F1W-U8262-02-P0

Unavailable

23

SCREW(GH1)

90149-05903-00

Unavailable

24

COVER,SIDE 1

F1W-U377B-60-P4

Unavailable

24

COVER,SIDE 1 (GRAY METALLIC H)

F1W-U377B-40-P0

Unavailable

25

BOLT, WITH WASHER

90119-06880-00

$3.65

26

NUT

F1X-U517E-01-00

$7.89

27

BOLT, WITH WASHER

90119-06880-00

$3.65

28

COVER,SIDE 2

F1W-U377C-60-P4

Unavailable

28

COVER,SIDE 2 (GRAY METALLIC H)

F1W-U377C-40-P0

Unavailable

29

BOLT, WITH WASHER

90119-06880-00

$3.65

30

NUT

F1X-U517E-01-00

$7.89

31

BOLT, WITH WASHER

90119-06880-00

$3.65

32

ORNAMENT, SIDE LH

F1W-U377F-01-00

$92.52

33

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

34

NUT, SELF-LOCKING

90185-06014-00

$5.82

35

RIVET, BLIND

90267-48807-00

$2.22

36

ORNAMENT, SIDE RH

F1W-U377G-01-00

$92.52

37

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

38

NUT, SELF-LOCKING

90185-06014-00

$5.82

39

RIVET, BLIND

90267-48807-00

$2.22

40

LID HATCH

F1W-U517H-01-00

Unavailable

41

LOCK

F1X-62875-01-00

Unavailable

42

GEAR ASSY

F1B-60210-00-00

$10.99

43

PIN, HINGE

F1B-6517R-00-00

$5.69

44

PACKING CASE

F1W-U519D-01-00

Unavailable

45

CASE,ASSY 1

F1W-U591A-00-00

Unavailable

46

. CAP,CASE

F1W-U591C-01-00

$4.66

47

. PACKING,CASE

F1W-U591D-00-00

$2.72

48

RIVET, BLIND

90267-489U6-00

Unavailable
