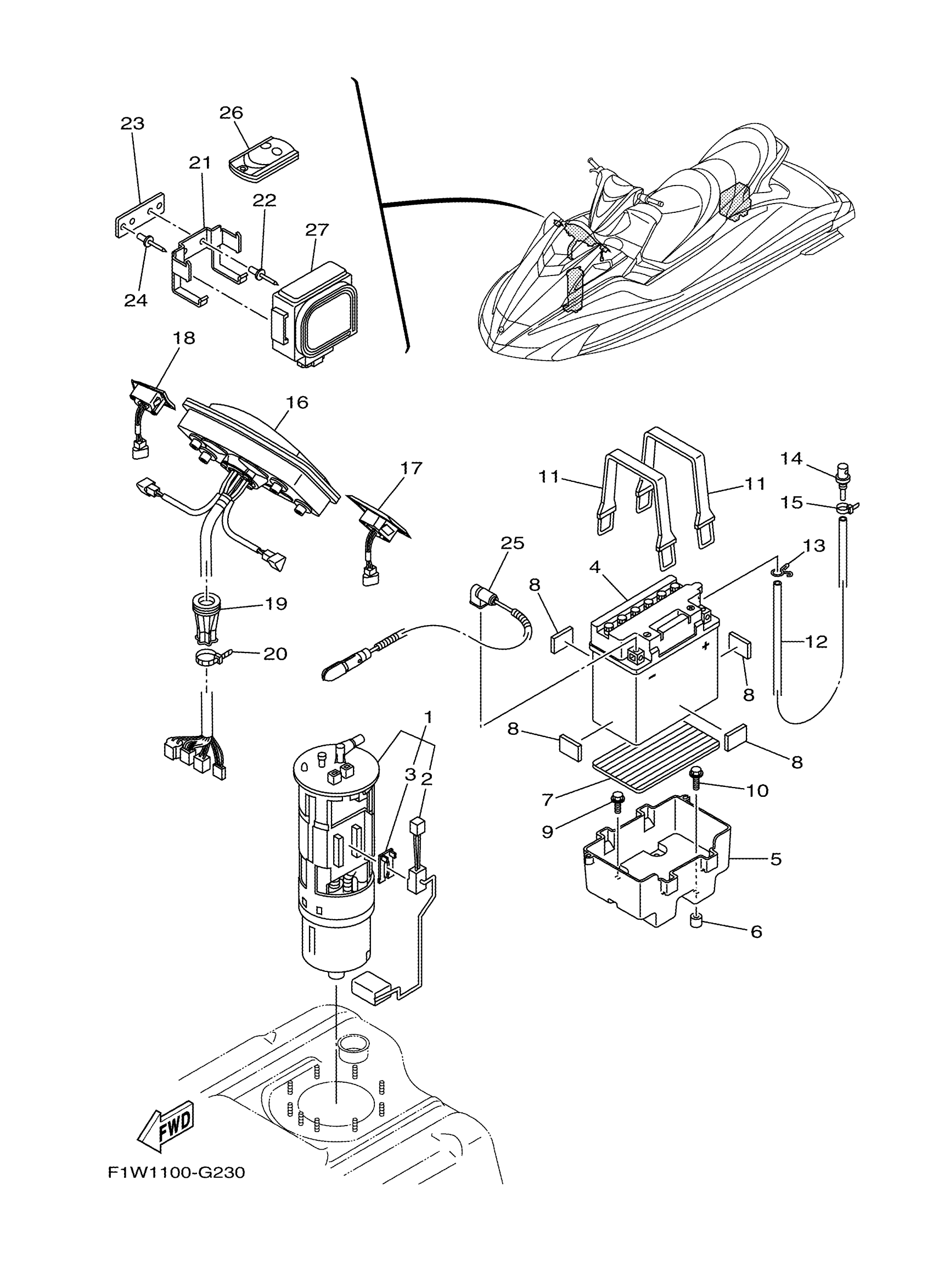

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PLATE, BATTERY

F1B-6821G-01-00

$4.03

7

PAD, BATTERY

F1S-U8221-00-00

$2.88

8

PAD, BATTERY

EU0-U8221-31-00

$1.80

9

BOLT, WITH WASHER

90119-069US-00

$2.66

10

BOLT, WITH WASHER

90119-06820-00

$3.65

11

BAND,BATTERY 1

EU0-U821D-00-00

$10.28

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

$1.42

14

NIPPLE

GJ3-6215F-00-00

$8.94

15

CLAMP

90465-10098-00

$2.24

16

METER ASSY

F1W-6820A-02-00

$1,380.58

17

SWITCH ASSY.

F1X-68090-00-00

$189.54

18

SWITCH ASSY.

F1X-68090-10-00

$297.00

19

GROMMET

F3J-U822E-01-00

$5.87

20

CLAMP

90464-32801-00

$1.29

21

BRACKET

F1W-U826C-00-00

$17.90

22

RIVET (EU0)

90267-48938-00

$4.72

23

PLATE

F1W-U8376-00-00

$2.76

24

RIVET (EU0)

90267-48938-00

$4.72

25

WIRE, MINUS LEAD

6JP-82116-00-00

$64.16

26

XMTR. COMP.

6B6-86261-00-00

$272.07

27

RECEIVER COMPLETE

6B6-86265-00-00

$420.88
