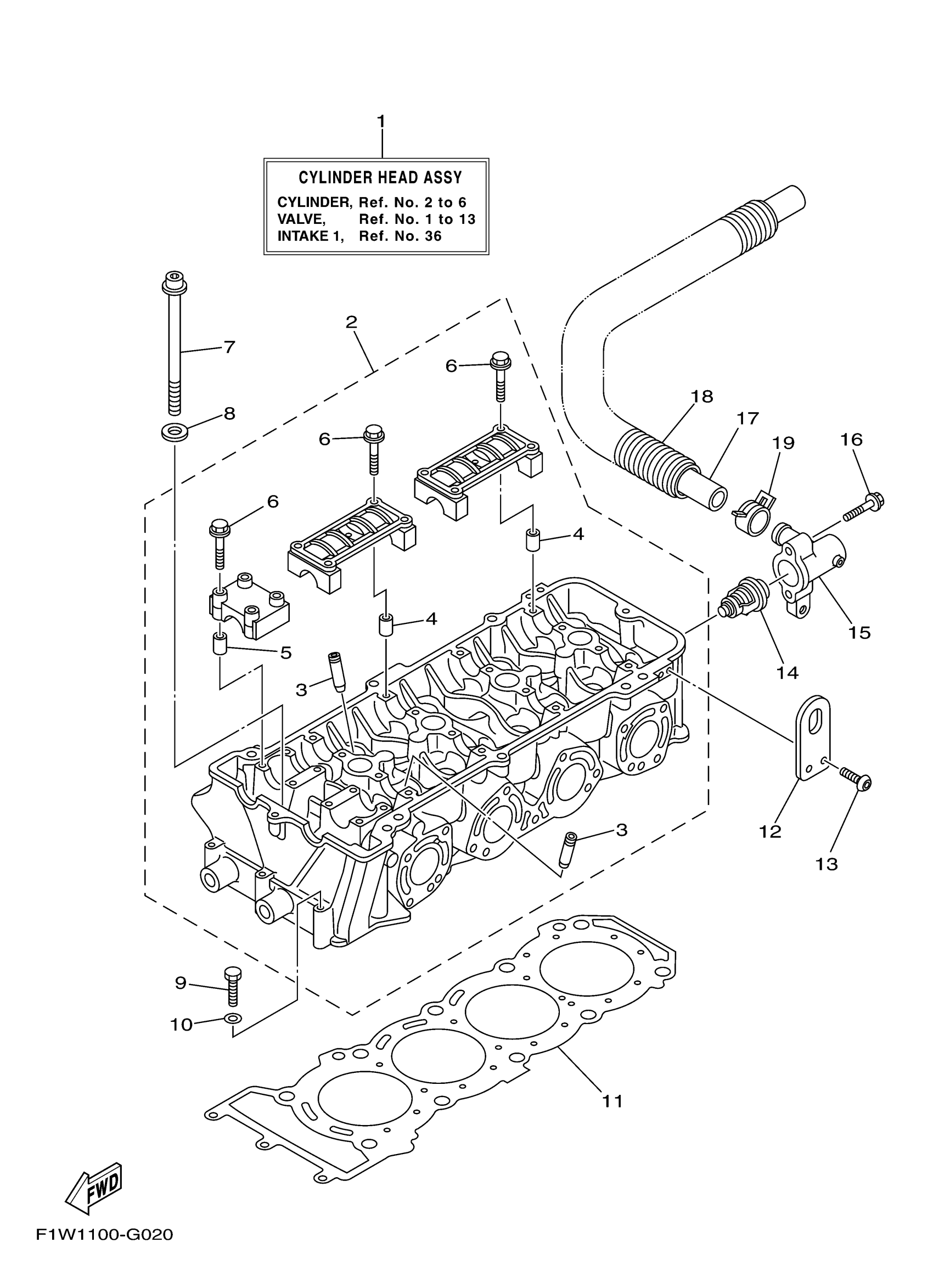

Yamaha FX1800AHZ (WAVERUNNER FX CRUISER SHO) F1W70 2009 CYLINDER 2 Diagram

Description

Price

CYLINDER HEAD COMPLETE (6S5_02

99999-04246-00

$6,154.53

CYLINDER HEAD ASSY

6S5-11102-20-00

$1,658.20

. GUIDE, VALVE 1

6S5-11133-10-00

$43.67

. PIN, DOWEL

91809-16001-00

$2.73

. PIN, DOWEL

91809-16001-00

$2.73

. BOLT, FLANGE

90105-07009-00

$2.95

BOLT

6S5-12228-01-00

$18.93

WASHER, PLATE

90201-12039-00

$2.95

BOLT(64D)

97013-06055-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$1.84

. GASKET, CYLINDER HEAD 1

6S5-11181-00-00

$126.44

HANGER, ENGINE

6S5-11119-00-00

$21.95

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$2.31

THERMOSTAT

60E-12411-01-00

$116.65

COVER, THERMOSTAT

6BH-12413-00-00

$39.38

BOLT, FLANGE

90105-06035-00

$2.27

HOSE 3

6S5-12578-00-00

$62.11

TUBE (L850)

90447-28008-00

$18.49

CLIP

90467-240A0-00

$6.82
