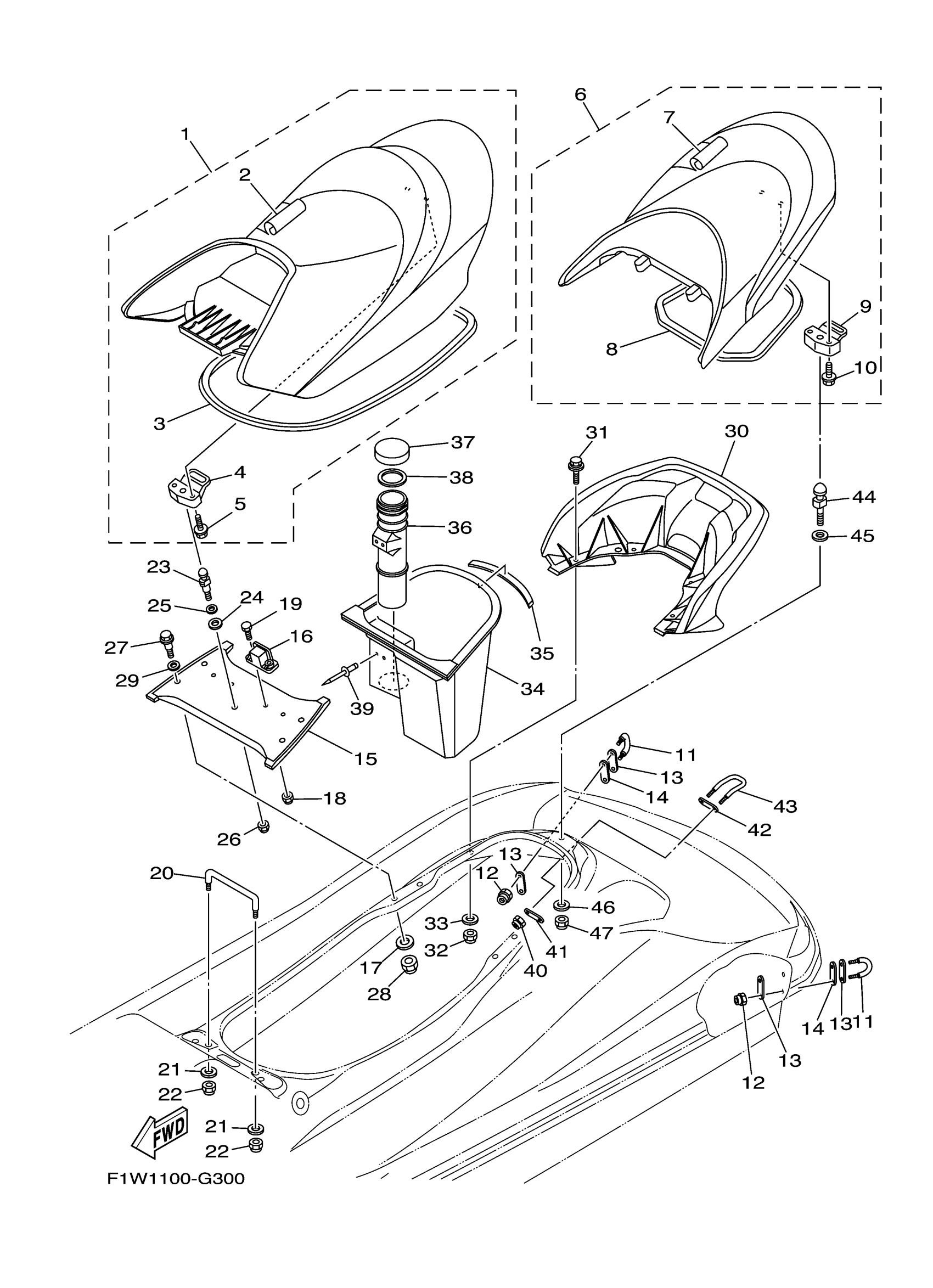

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F1W-U371A-12-00

Unavailable

1

DOUBLE SEAT ASSY

F1W-U371A-22-00

Unavailable

2

. COVER, SEAT 1

F1W-U371B-11-00

Unavailable

2

COVER, SEAT 1

F1W-U371B-21-00

Unavailable

3

. PACKING

F1W-U2664-01-00

$32.82

4

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F1W-U372A-13-00

$592.52

6

SINGLE SEAT ASSY

F1W-U372A-22-00

Unavailable

7

COVER, SEAT

F1W-U372B-12-00

$140.28

7

COVER, SEAT

F1W-U372B-21-00

$153.72

8

. PACKING 5

F1W-U266D-00-00

Unavailable

9

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STERN EYE (BLACK)

F1K-61628-00-00

$38.79

12

NUT, NYLON (6J8)

95780-08300-00

$11.48

13

PLATE A

GP7-U4953-10-00

$3.65

14

PACKING

F1B-U1653-03-00

Unavailable

15

BEAM, DECK 1

F1B-U8952-01-00

$225.36

16

STAY,SEAT 2

GU2-6378D-02-00

$19.39

17

WASHER

9299R-08200-00

Unavailable

18

NUT, NYLON

9572R-06300-00

$2.93

19

BOLT

90101-069U0-00

$1.34

20

STAY, SEAT 1

F0X-6378C-00-00

$50.73

21

WASHER, PLATE

90201-099U3-00

$2.30

22

NUT, NYLON (6J8)

95780-08300-00

$11.48

23

PIN

F1B-U3774-00-00

$22.37

24

PACKING 1

F0X-6375E-00-00

$3.58

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

NUT, NYLON

9572R-10300-00

$3.52

27

BOLT

F1B-U2624-00-00

Unavailable

28

NUT, NYLON (6J8)

95780-08300-00

$11.48

29

WASHER

9299R-10200-00

$1.72

30

GRIP, HAND

F1W-U271B-01-00

Unavailable

31

BOLT, WITH WASHER

90119-08907-00

$5.17

32

NUT, NYLON (6J8)

95780-08300-00

$11.48

33

WASHER

9299R-08200-00

Unavailable

34

LOCKER, UNDER 2

F1B-U4742-01-00

Unavailable

35

.. PACKING,6

F0X-U266E-01-00

$15.66

36

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

37

. CAP, CASE

EW2-U5912-01-00

Unavailable

38

PACKING, CASE

EW2-U5913-01-00

Unavailable

39

RIVET, 1

F3J-U516R-00-00

$2.52

40

NUT, NYLON (6J8)

95780-08300-00

$11.48

41

PLATE A

GP7-U4953-10-00

$3.65

42

PLATE A

GP7-U4953-10-00

$3.65

43

SKI TOWS

F1B-U1629-00-00

$26.54

44

PIN

GH1-U3774-00-00

$20.81

45

WASHER, PLATE

90201-109U6-00

$3.43

46

WASHER

9299R-10200-00

$1.72

47

NUT, NYLON

9572R-10300-00

$3.52
