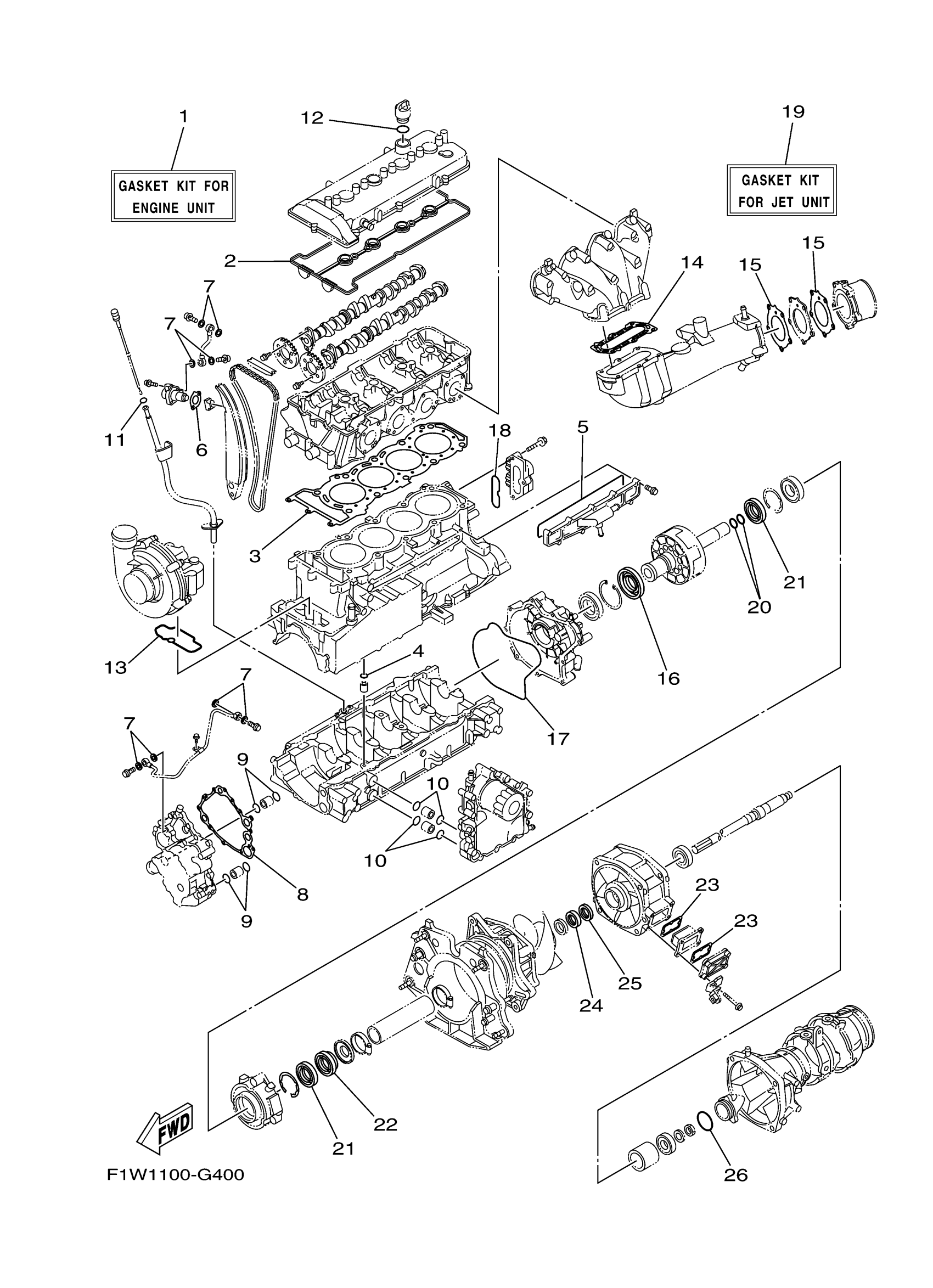

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

6S5-W0001-02-00

Unavailable

2

. GASKET, HEAD COVER 1

6S5-11193-00-00

Unavailable

3

. GASKET, CYLINDER HEAD 1

6S5-11181-00-00

Unavailable

4

O-RING (4G0)

93210-11453-00

$7.49

5

. GASKET, WATER INLET

6S5-12517-01-00

Unavailable

6

. GASKET

6S5-121E2-00-00

Unavailable

7

. GASKET

90430-10007-00

Unavailable

8

. GASKET

6S5-13563-00-00

Unavailable

9

O-RING (26H)

93210-21631-00

$7.49

10

O-RING (1L9)

93210-18322-00

$5.60

11

O-RING(3LD)

93210-12790-00

$7.49

12

O-RING (437)

93210-24235-00

$7.49

13

. O-RING

6S5-1416A-00-00

Unavailable

14

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

Unavailable

15

. GASKET, MUFFLER DAMPER 2

6S5-14749-00-00

Unavailable

16

OIL SEAL

6LE-81167-00-00

Unavailable

17

. O-RING

6S5-81168-00-00

Unavailable

18

O-RING

93210-60ME8-00

Unavailable

19

GASKET KIT FOR JET UNIT

6S5-W0001-20-00

Unavailable

20

O-RING(6U1)

93210-22MF1-00

Unavailable

21

. OIL SEAL

93102-29008-00

Unavailable

22

OIL SEAL

93102-29009-00

Unavailable

23

. O-RING

66V-42414-00-00

Unavailable

24

. OIL SEAL

93102-31009-00

Unavailable

25

. OIL SEAL

93101-31001-00

Unavailable

26

O-RING

93210-54010-00

Unavailable
