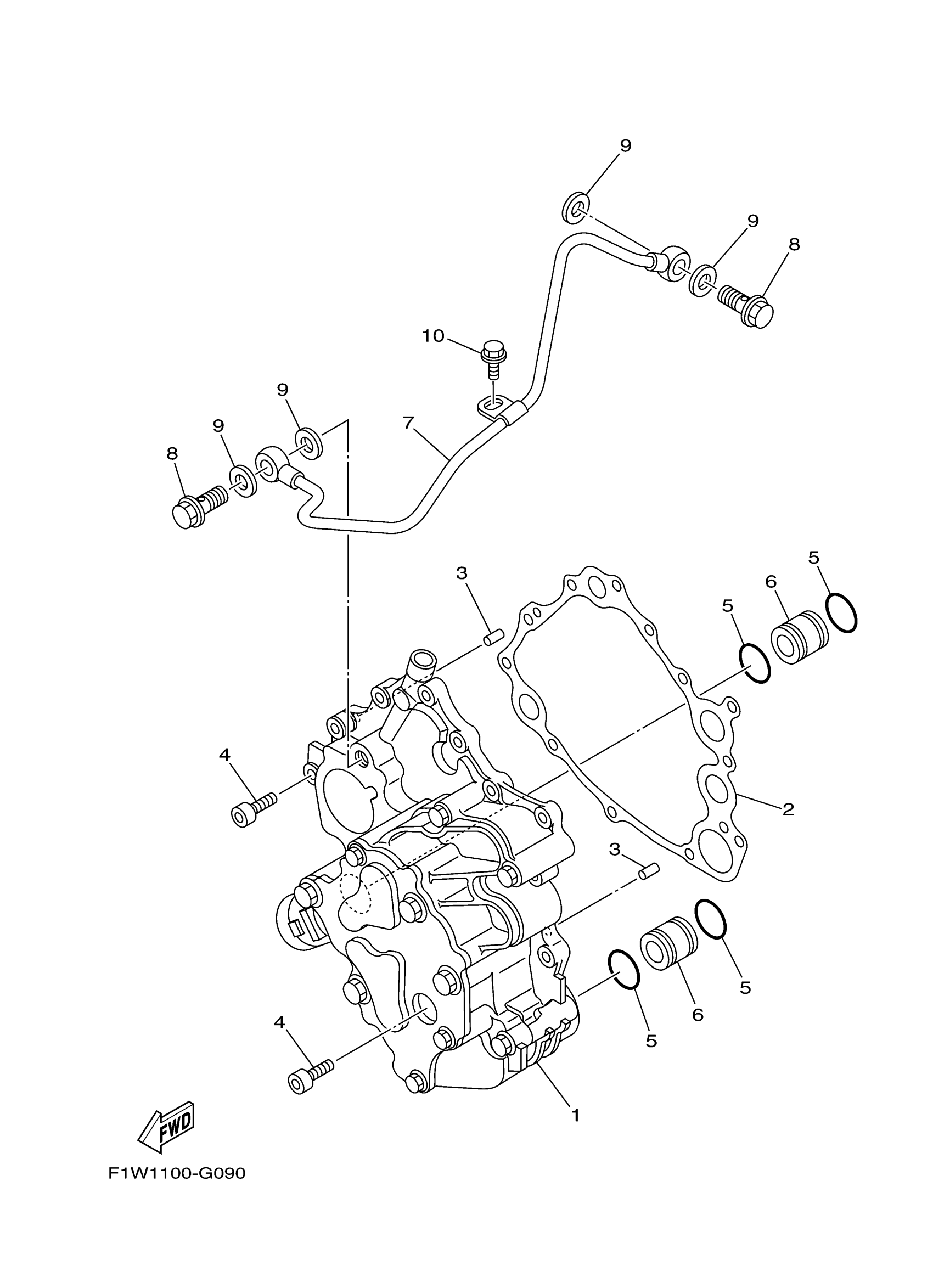

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

6S5-13300-11-00

$1,262.67

2

. GASKET

6S5-13563-00-00

$11.01

3

PIN, DOWEL (614)

93606-12019-00

$3.50

4

BOLT,SOCKET HEAD

91314-06020-00

$1.91

5

O-RING (26H)

93210-21631-00

$5.99

6

CONNECTOR

6S5-13446-00-00

$19.39

7

PIPE, OIL 1

6S5-13416-00-00

$122.35

8

BOLT, UNION

90401-10040-00

$7.59

9

. GASKET

90430-10007-00

$3.60

10

BOLT, FLANGE(2UJ)

95024-06012-00

$3.43
