Partiron

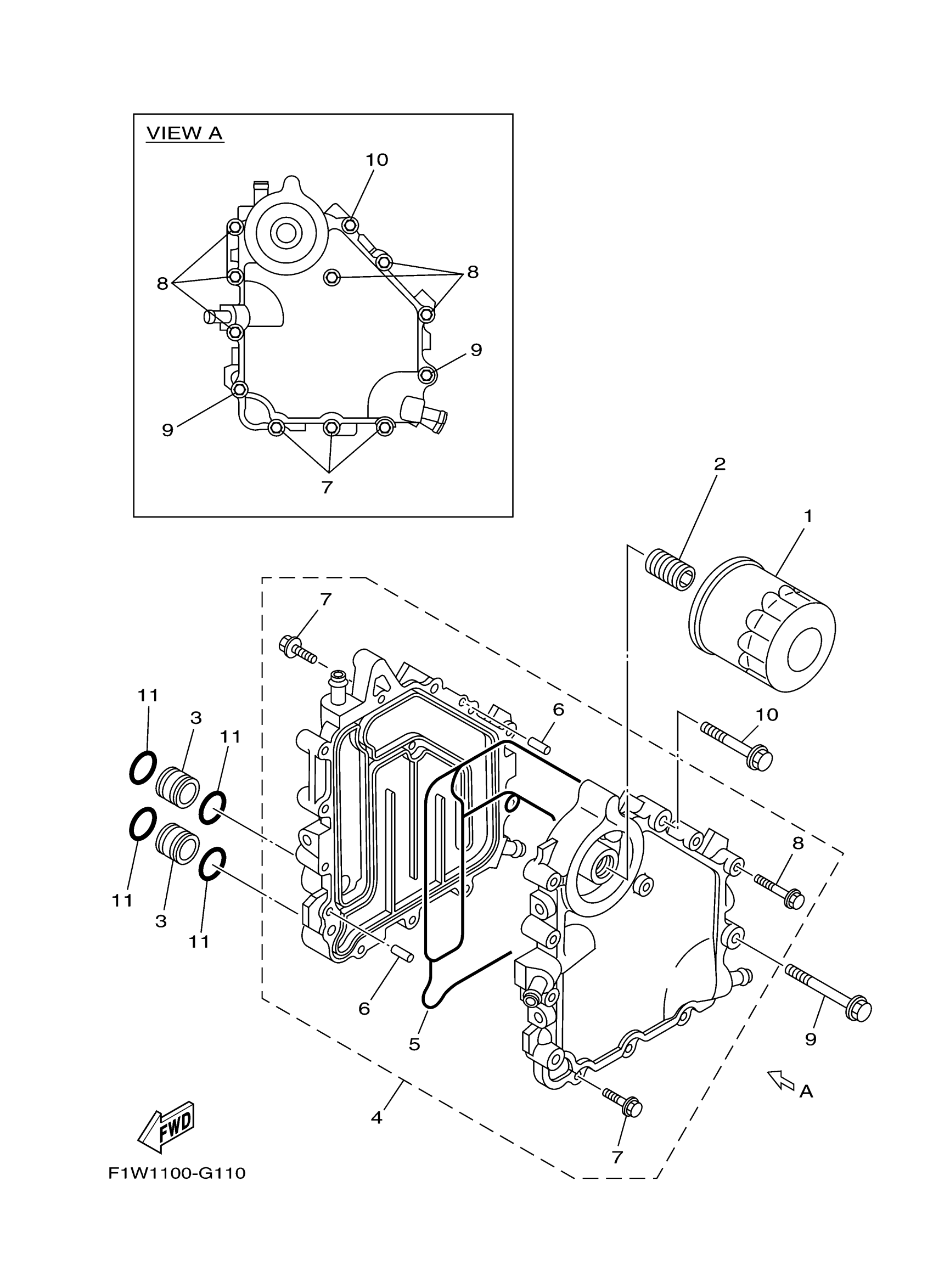

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 OIL COOLER Diagram

#

Description
Price

1

ELEMENT ASSY, OIL CLEANER

69J-13440-05-00

Unavailable

2

BOLT, UNION

6S5-12858-00-00

$19.68

3

CONNECTOR

60E-13446-00-00

$14.44

4

OIL COOLER ASSY

6S5-13470-00-00

Unavailable

5

. GASKET, MANIFOLD

6S5-13556-00-00

$98.47

6

PIN, DOWEL

93604-10M03-00

$3.86

7

BOLT (6G1)

90105-06M24-00

$1.82

8

BOLT (6E0)

90105-06M16-00

$1.82

9

BOLT, FLANGE

90105-08169-00

$2.80

10

BOLT, FLANGE

90105-08170-00

$2.72

11

O-RING (1L9)

93210-18322-00

$4.24
