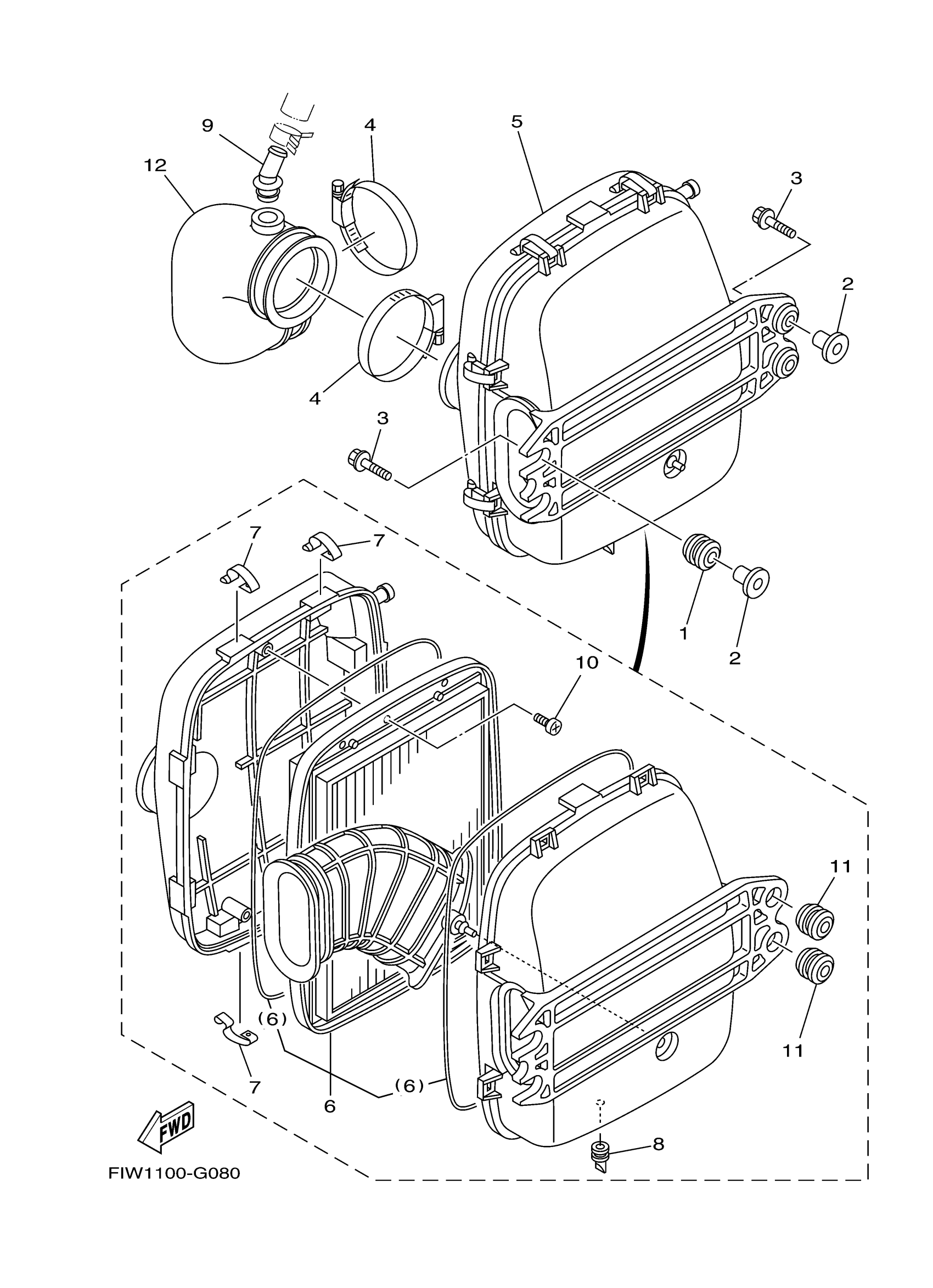

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 INTAKE 3 Diagram

#

Description
Price

1

GROMMET

90480-22M15-00

$10.18

2

COLLAR

90387-08M37-00

$9.81

3

BOLT, WITH WASHER

90119-08187-00

$3.17

4

CLAMP, HOSE

90460-90M11-00

$42.60

5

AIR CLEANER ASSY.

6S5-E4410-00-00

Unavailable

6

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$166.59

6

. SEAL

6S5-E4462-00-00

Unavailable

7

. HOOK

6S5-E4436-00-00

$3.79

8

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.58

9

CONNECTION

6S5-R1142-00-00

$110.59

10

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

11

. GROMMET

90480-22801-00

$2.73

12

PIPE

6S5-E4419-00-00

$77.26
