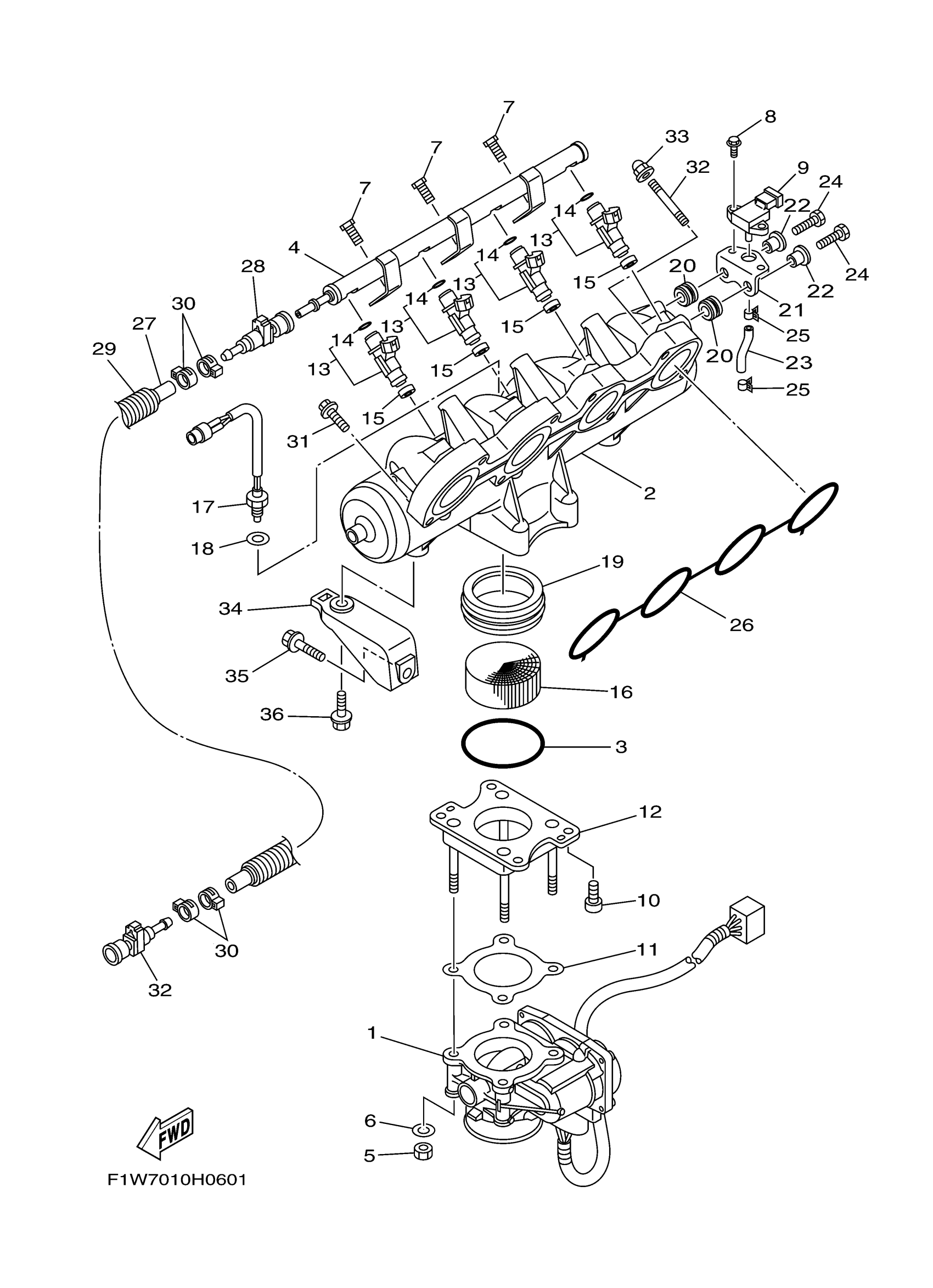

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6S5-13750-12-00

Unavailable

2

MANIFOLD 1

6S5-13641-00-00

Unavailable

3

O-RING

6S5-14147-00-00

$64.99

4

DELIVERY PIPE

6S5-12880-00-00

Unavailable

5

NUT

6P2-13588-00-00

$19.71

6

WASHER

6P2-13578-00-00

$6.57

7

. BOLT

63P-14446-00-00

$9.27

8

BOLT 1

6S5-13573-00-00

$9.08

9

SENSOR, PRESSURE

6S5-82380-00-00

$286.35

10

BOLT

6S5-14496-00-00

$12.86

11

GASKET

6S5-14536-00-00

$115.14

12

THROTTLE DAMPER ASSY

6S5-14360-00-00

$674.23

13

INJECTOR

6S5-13761-00-00

$199.98

14

.. O-RING

60E-14147-00-00

$7.27

15

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

16

RIBBON

6D3-1444B-01-00

Unavailable

17

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

$156.05

18

. WASHER

6S5-14285-00-00

$2.19

19

HOLDER

6S5-14457-00-00

$78.49

20

GROMMET

6S5-14445-00-00

$25.74

21

BRACKET 1

6S5-14291-00-00

$110.59

22

COLLAR

6S5-14534-00-00

$86.35

23

HOSE, VACUUM SENSING 3

69J-13532-00-00

$9.99

24

BOLT

6S5-14446-00-00

$5.91

25

CLIP

6S5-14159-01-00

Unavailable

26

. GASKET, MANIFOLD 1

6S5-13645-00-00

$172.71

27

HOSE

6S5-14294-09-00

Unavailable

28

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

29

TUBE

F3J-U773D-00-00

$4.77

30

HOSE CLAMP ASSY

90450-17M17-00

$7.40

31

BOLT, WITH WASHER

90119-08022-00

$3.41

32

BOLT, STUD

90116-08032-00

$3.33

33

NUT, CROWN(4BR)

90176-08080-00

Unavailable

34

STAY

6S5-14413-00-00

Unavailable

35

BOLT, WITH WASHER

90119-08043-00

$4.55

36

BOLT, WITH WASHER

90119-08099-00

$5.00
