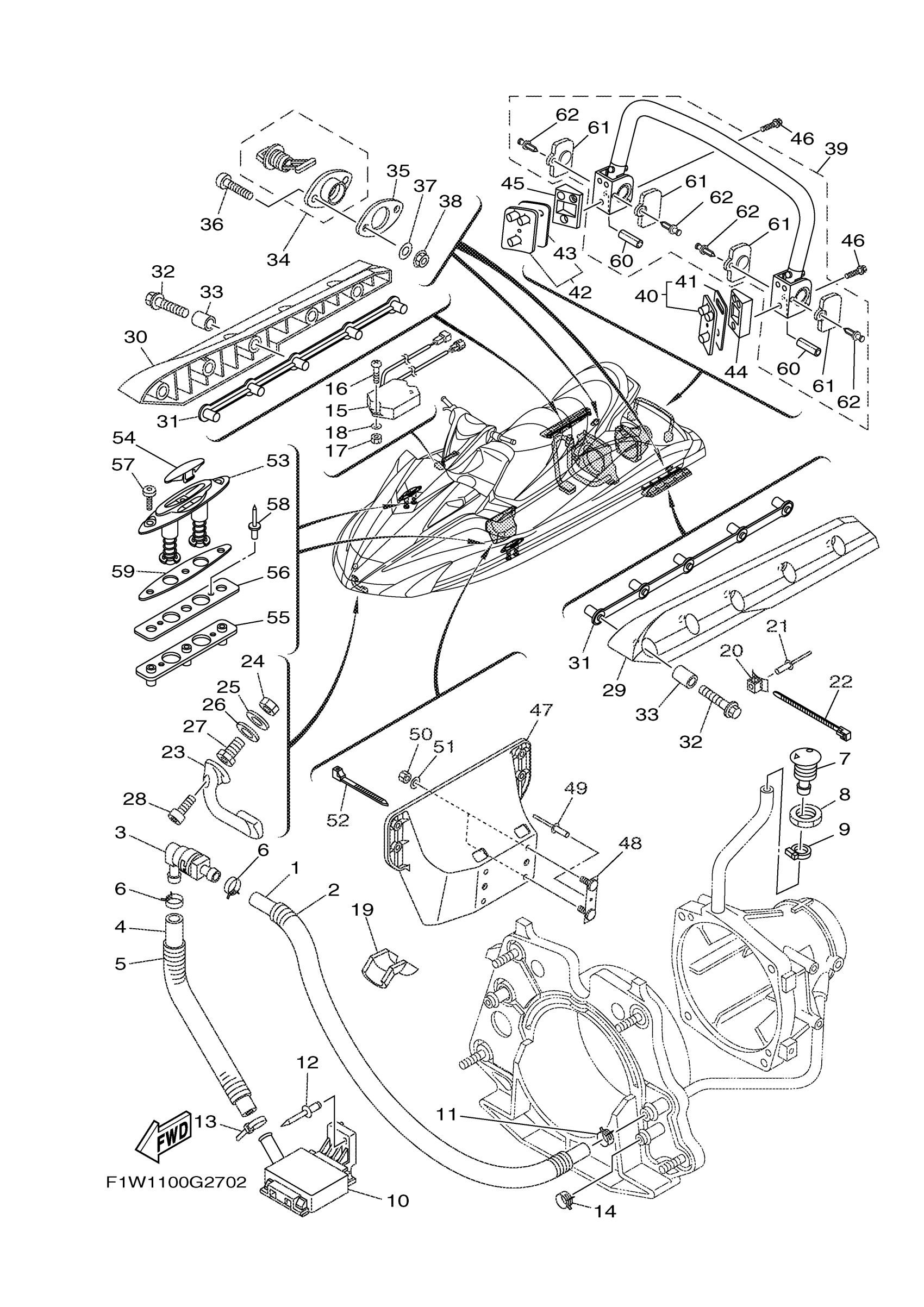

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 HULL DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.86

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L500)

90445-20800-00

$12.86

5

HOSE(63M)

90446-27M55-00

$14.36

6

CLIP

90467-18804-00

$2.72

7

SPOUT

F1W-U269B-00-00

$1.80

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

F1B-U761D-02-00

$5.15

11

CLIP

90467-21800-00

$2.87

12

RIVET, BLIND

90267-489U8-00

$0.99

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-200A0-00

$7.40

15

SENSOR, COMPASS

F1X-U8K22-01-00

$530.29

16

SCREW, PAN HEAD

9788R-05025-00

$2.52

17

NUT, FLANGE

9572R-05300-00

$1.43

18

WASHER

9299R-05200-00

$3.16

19

TRIM, 1

F1S-U828H-01-00

$6.52

20

CLAMP COMP (EU0)

90600-91736-00

Unavailable

21

RIVET, BLIND

90267-48802-00

$1.98

22

CLAMP

90464-32801-00

$1.23

23

BOW EYE 1

F1K-61624-00-00

$42.60

24

NUT.HEX.(COARS)

99780-12600-00

$2.80

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

WASHER

F0X-61637-00-00

$1.29

27

NUT

F0X-61652-01-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

29

STABILIZER LH

F1S-U883N-01-00

$33.32

30

STABILIZER RH

F1S-U883P-01-00

$33.32

31

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

32

BOLT,WASHER BASED

90105-088F9-00

$2.91

33

SPACER

F1K-U8169-00-00

Unavailable

34

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

35

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

36

SCREW, PAN HEAD

9788R-05025-00

$2.52

37

WASHER

9299R-05200-00

$3.16

38

NUT, FLANGE

9572R-05300-00

$1.43

39

LADDER, STEP ASSY

F1W-U278A-01-00

$296.95

40

BRACKET, LADDER LH

F1X-U278F-01-00

$31.80

41

. PACKING, BRACKET 1

F1X-U278H-10-00

Unavailable

42

BRACKET, LADDER RH

F1X-U278G-01-00

$31.80

43

. PACKING, BRACKET 1

F1X-U278H-10-00

Unavailable

44

BRACKET 1

F1X-U278K-00-00

Unavailable

45

BRACKET 2

F1X-U278L-00-00

Unavailable

46

BOLT, WITH WASHER

90119-08844-00

$1.29

47

BRACKET 2

F1W-U8572-01-00

$48.47

48

BRACKET

F1K-U826C-03-00

$12.86

49

RIVET (EU0)

90267-48938-00

$5.00

50

NUT, NYLON (6J8)

95780-08300-00

$10.55

51

WASHER

9299R-08200-00

Unavailable

52

CLAMP

90464-32801-00

$1.23

53

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

54

COVER

F1X-U826D-01-00

$1.87

55

BRACKET

F1X-U826C-10-00

$11.48

56

PACKING

F1X-U2157-00-00

$1.63

57

BOLT

F1W-U2624-00-00

$2.30

58

RIVET, BLIND

90267-489U6-00

$1.37

59

PACKING

F4G-U2284-10-00

$2.87

60

. SLEEVE 1

F1W-U771H-00-00

$22.97

61

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

62

. PIN

F2C-U1314-00-00

$2.44
