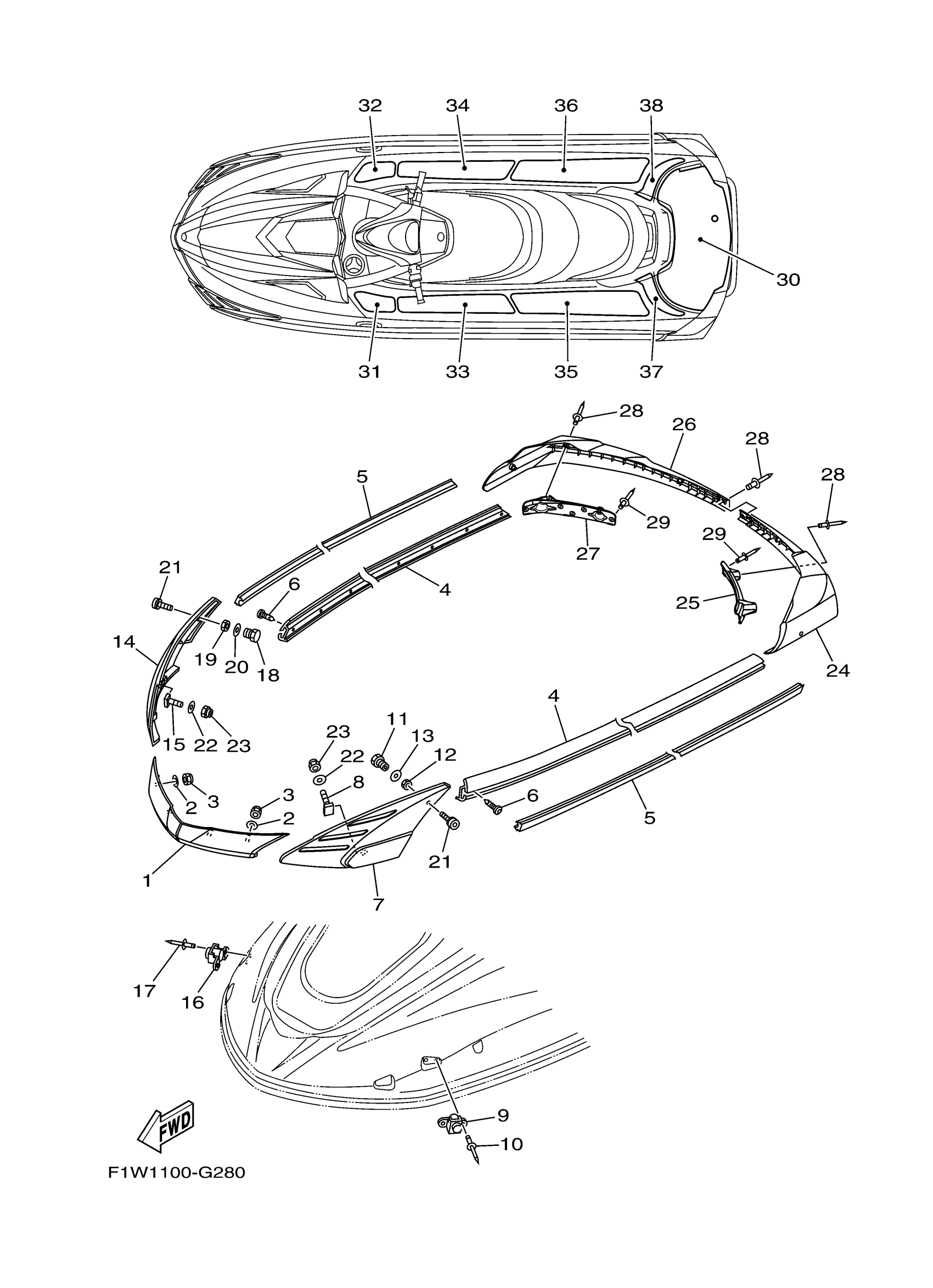

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 GUNWALE MAT Diagram

#

Description

Price

1

BOW GUNWALE COMP.

F1W-U2501-01-00

Unavailable

1

BOW GUNWALE COMP.

F1W-U2501-11-00

Unavailable

2

WASHER

9299R-06200-00

Unavailable

3

NUT, NYLON

9572R-06300-00

Unavailable

4

GUNWALE, SIDE

F1B-U2512-00-00

Unavailable

4

GUNWALE, SIDE

F1B-U2512-20-00

Unavailable

5

INNER,GUNWALE

F1B-U2519-10-00

Unavailable

6

SCREW,TAPPING

90169-059U1-00

Unavailable

7

JOINT,GUNWALE LH

F1W-U252E-02-00

Unavailable

7

JOINT,GUNWALE LH

F1W-U252E-11-00

Unavailable

8

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

9

GROMMET ASSY

F1W-U250B-00-00

Unavailable

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

NUT, SPECIAL

F1W-62873-00-00

Unavailable

12

. NUT

95380-14700-00

Unavailable

13

PACKING

F1W-62157-00-00

Unavailable

14

JOINT,GUNWALE RH

F1W-U252F-02-00

Unavailable

14

JOINT,GUNWALE RH

F1W-U252F-11-00

Unavailable

15

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

16

GROMMET ASSY

F1W-U250B-00-00

Unavailable

17

RIVET, BLIND

90267-489U6-00

Unavailable

18

NUT, SPECIAL

F1W-62873-00-00

Unavailable

19

. NUT

95380-14700-00

Unavailable

20

PACKING

F1W-62157-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06115-00

Unavailable

22

WASHER

9299R-06200-00

Unavailable

23

NUT, NYLON

9572R-06300-00

Unavailable

24

GUNWALE, STERN 1

F1W-U251D-02-00

Unavailable

24

GUNWALE, STERN 1

F1W-U251D-11-00

Unavailable

25

BRACKET, GUNWALE 1

F1W-U251L-01-00

Unavailable

26

GUNWALE, STERN 2

F1W-U251E-02-00

Unavailable

26

GUNWALE, STERN 2

F1W-U251E-11-00

Unavailable

27

BRACKET, GUNWALE 2

F1W-U251M-01-00

Unavailable

28

RIVET, BLIND

90267-48825-00

Unavailable

29

RIVET, BLIND

90267-489U8-00

Unavailable

30

MAT, UPPER

F1W-U3581-00-00

Unavailable

30

MAT, UPPER

F1W-U3581-10-00

Unavailable

31

MAT, STEP 1

F1W-U351H-00-00

Unavailable

31

MAT, STEP 1

F1W-U351H-10-00

Unavailable

32

MAT, STEP 2

F1W-U351J-00-00

Unavailable

32

MAT, STEP 2

F1W-U351J-10-00

Unavailable

33

MAT, STEP 3

F1W-U351K-00-00

Unavailable

33

MAT, STEP 3

F1W-U351K-10-00

Unavailable

34

MAT, STEP 4

F1W-U351M-00-00

Unavailable

34

MAT, STEP 4

F1W-U351M-10-00

Unavailable

35

MAT, STEP 5

F1W-U351N-00-00

Unavailable

35

MAT, STEP 5

F1W-U351N-10-00

Unavailable

36

MAT, STEP 6

F1W-U351P-00-00

Unavailable

36

MAT, STEP 6

F1W-U351P-10-00

Unavailable

37

MAT, STEP 7

F1W-U351R-00-00

Unavailable

37

MAT, STEP 7

F1W-U351R-10-00

Unavailable

38

MAT, STEP 8

F1W-U351S-00-00

Unavailable

38

MAT, STEP 8

F1W-U351S-10-00

Unavailable
