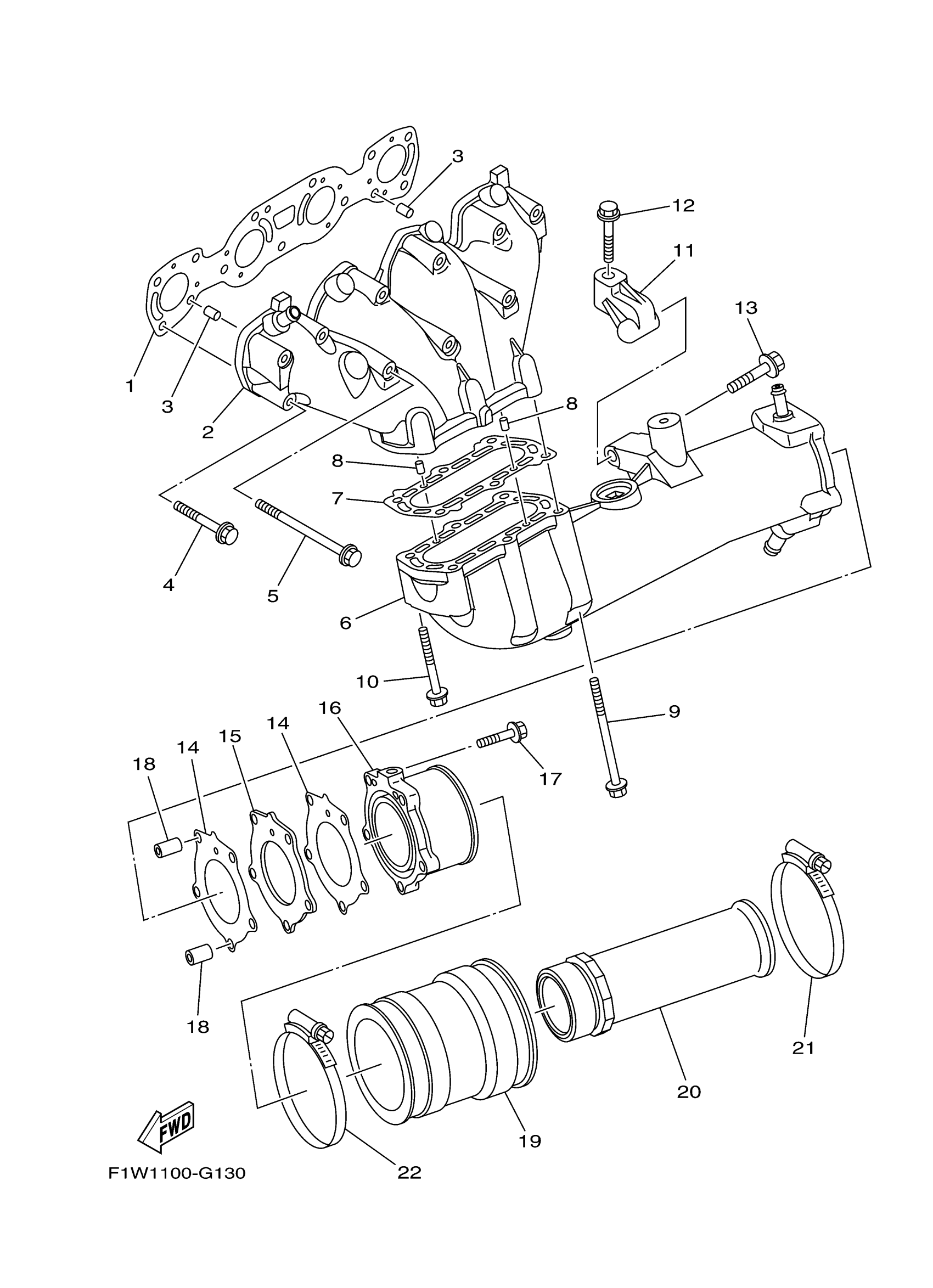

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 EXHAUST 1 Diagram

. GASKET, EXHAUST PIPE

6S5-14613-00-00

$35.93

MUFFLER 1

6S5-14711-00-94

$921.20

PIN, DOWEL

93608-16M16-00

$2.41

BOLT, WITH WASHER

90119-08034-00

$3.33

BOLT, WITH WASHER

90119-08097-00

$5.18

MUFFLER 2

6S5-14721-00-94

$883.32

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

$22.22

PIN, DOWEL (614)

93606-12019-00

$3.05

BOLT, WITH WASHER

90119-08097-00

$5.18

BOLT, WITH WASHER

90119-08034-00

$3.33

STAY, MUFFLER 1

6S5-14771-00-00

$75.74

BOLT, WITH WASHER

90119-08096-00

$5.00

BOLT, WITH WASHER

90119-10076-00

$4.09

. GASKET, MUFFLER DAMPER 2

6S5-14749-00-00

$18.15

PLATE, SILENCER 6

6S5-1469W-00-00

$63.62

PIPE, TAIL

6S5-14784-00-94

$187.86

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

PIN, DOWEL

99590-10114-00

$4.11

PIPE, OUTLET

6S5-E4752-01-00

Unavailable

PIPE 1

6CS-1475A-00-00

$206.05

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

HOSE CLAMP ASSY

90450-90M10-00

$52.99
