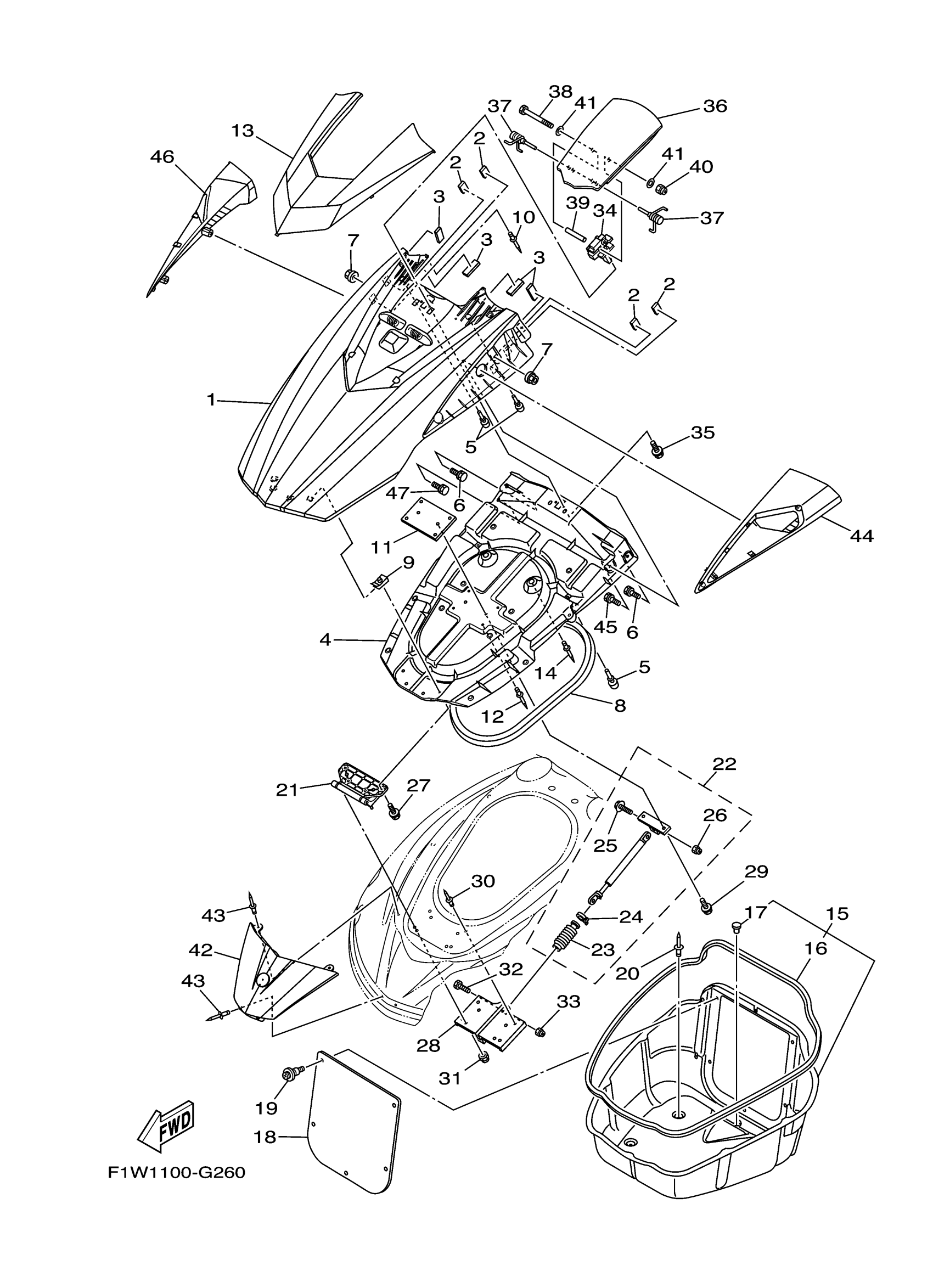

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F1W-U517B-60-P4

Unavailable

1

LID, ENGINE ROOM

F1W-U517B-60-P3

Unavailable

2

STOPPER, HATCH 2

F1W-U5136-00-00

$1.23

3

. PACKING 3

F1K-U266B-00-00

$1.15

4

COVER,VENTILATOR 1

F1W-U213B-01-00

$131.08

5

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

6

BOLT, WITH WASHER

90119-06880-00

$3.52

7

NUT, SELF-LOCKING

90185-06014-00

$5.91

8

PACKING 1

F1K-U2663-01-00

$27.26

9

NUT, SPRING(GJ3)

90183-06902-00

$8.53

10

RIVET, BLIND

90267-48807-00

$2.07

11

PLATE, HATCH

F1W-U5148-00-00

$15.07

12

RIVET, BLIND

90267-48807-00

$2.07

13

VISOR

F1W-U515N-00-P0

Unavailable

13

VISOR

F1W-U515N-20-P1

Unavailable

14

RIVET, BLIND

90267-48807-00

$2.07

15

LOCKER,BOW

F1W-U475B-04-00

Unavailable

16

. PACKING 4

F1W-U266C-00-00

Unavailable

17

. PLUG, BLIND

90605-502U1-00

$2.16

18

PLATE, LOKER BOW

F1W-U475F-01-00

$12.91

19

RIVET

90269-08801-00

$0.83

20

RIVET, 1

F3J-U516R-00-00

$2.36

21

HINGE, LID

F1W-U517D-01-00

Unavailable

22

DAMPER ASSY

F2C-6514S-00-00

$254.53

23

. COVER, DAMPER

F1W-6514T-00-00

$23.99

24

. BAND

90601-20005-00

$1.89

25

BOLT

90109-06218-00

$10.49

26

NUT, SELF-LOCKING

95720-06300-00

$1.82

27

BOLT, WITH WASHER

90119-06896-00

$5.03

28

PLATE, HINGE LID

F1W-U518E-02-00

$54.53

29

BOLT, WITH WASHER

90119-06830-00

Unavailable

30

RIVET, BLIND

90267-48020-00

$7.27

31

NUT, NYLON

9572R-06300-00

$2.80

32

BOLT

90109-06218-00

$10.49

33

NUT, NYLON

9572R-06300-00

$2.80

34

LOCK, LID

F1W-6517C-02-00

$124.23

35

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

36

VISOR, 2

F1W-U515P-01-00

Unavailable

36

VISOR, 2

F1W-U515P-30-00

$307.56

37

PIN, HINGE

F1W-6517R-00-00

$8.88

38

SHAFT A

F1W-U515H-00-00

$4.47

39

PIPE

F1W-U2693-00-00

$1.29

40

NUT, FLANGE

9572R-05300-00

$1.43

41

WASHER

9299R-05200-00

$3.16

42

COVER, FRONT

F1W-U513M-60-P4

$221.20

42

COVER, FRONT

F1W-U513M-60-P3

Unavailable

43

RIVET, BLIND

90267-489U6-00

$1.37

44

MIRROR ASSY. 1

F1W-U590D-01-00

Unavailable

44

MIRROR ASSY. 1

F1W-U590D-11-00

Unavailable

45

BOLT, WITH WASHER

90119-08907-00

$5.45

46

MIRROR ASSY. 2

F1W-U590E-01-00

Unavailable

46

MIRROR ASSY. 2

F1W-U590E-10-00

$207.56

47

BOLT, WITH WASHER

90119-08907-00

$5.45
