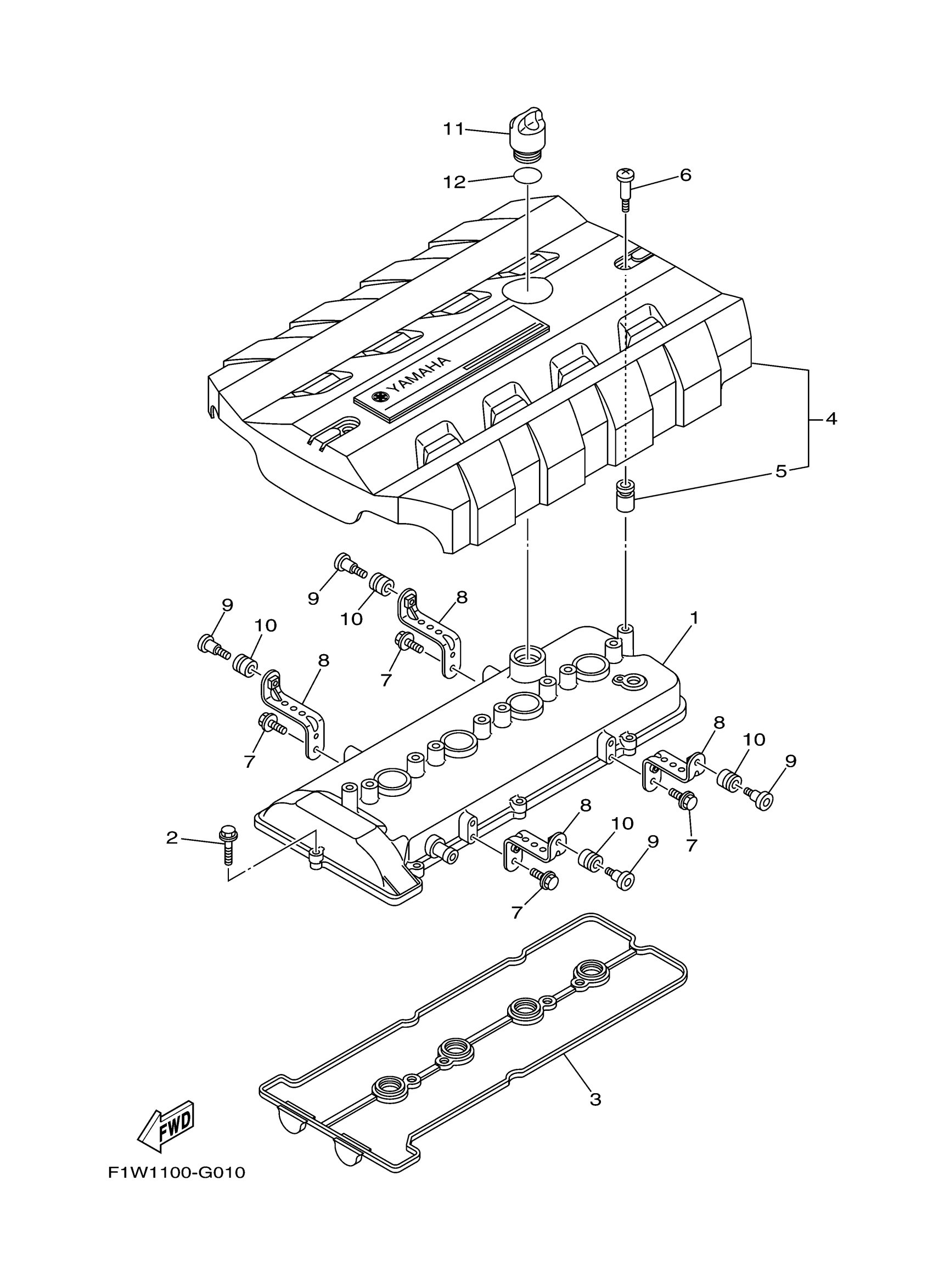

Yamaha FX1800AGS (WAVERUNNER FX CRUISER SUPER HIGH OUT) F1W10 2008 CYLINDER 1 Diagram

COVER, CYLINDER HEAD 1

6S5-11191-01-00

Unavailable

BOLT, FLANGE

90105-06028-00

Unavailable

. GASKET, HEAD COVER 1

6S5-11193-00-00

Unavailable

COVER ASSY 1

6S5-E110M-01-00

Unavailable

. GROMMET, ANODE

6S5-E1328-00-00

Unavailable

BOLT, COVER MOUNTING

6S5-E118E-02-00

$3.99

BOLT, FLANGE

90105-06007-00

Unavailable

STAY

6S5-11941-11-00

$27.99

BOLT, MOUNT

6S5-11026-00-00

Unavailable

RUBBER MOUNT 1

6S5-1111G-01-00

Unavailable

PLUG, OIL

6S5-15363-00-00

Unavailable

O-RING (437)

93210-24235-00

$7.49
