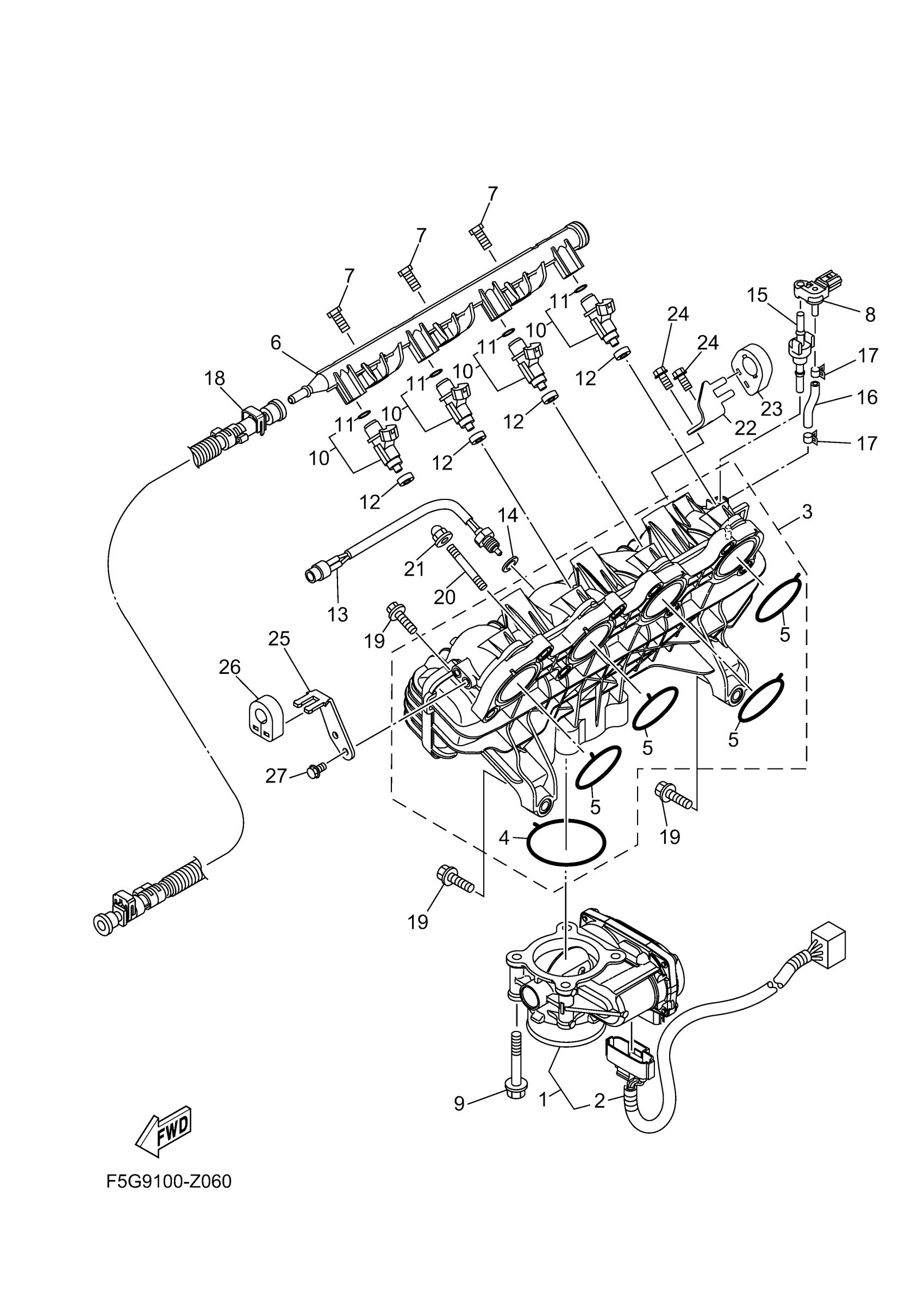

Yamaha FX1800AC (FX LIMITED SVHO) F5GF 2026 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6ET-13750-01-00

Unavailable

2

. WIRE, SUB LEAD

6S5-82509-00-00

$114.69

3

MANIFOLD, INTAKE 1

6ET-13641-11-00

$339.69

4

. GASKET, INSULATING

6EY-14156-00-00

$38.75

5

. GASKET, INSULATING

6ET-14156-00-00

$14.43

6

DELIVERY PIPE

6CS-12880-00-00

$160.28

7

BOLT

6CS-14446-00-00

$8.81

8

. SENSOR, PRESSURE

6BH-82380-00-00

$215.07

9

BOLT, FLANGE

90105-08243-00

$1.70

10

INJECTOR

6ET-13761-00-00

$305.87

11

. O-RING

68V-1416A-00-00

$11.01

12

. GASKET, MANIFOLD

8FP-13556-10-00

$5.69

13

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

$119.69

14

. WASHER

6S5-14285-00-00

$2.13

15

GROMMET

6BH-14445-00-00

$20.57

16

HOSE, VACUUM SENSING 3

69J-13532-00-00

$9.99

17

CLIP

6S5-14159-01-00

Unavailable

18

FUEL HOSE ASSY

6AN-2450B-10-00

$119.10

19

BOLT, WITH WASHER

97513-08535-00

$1.70

20

BOLT, STUD

90116-08032-00

$3.41

21

NUT, CROWN(4BR)

90176-08080-00

Unavailable

22

PLATE, STAY

6ET-14572-00-00

$6.18

23

GROMMET

6ET-14445-01-00

$8.81

24

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable

25

PLATE, STAY

6CS-14572-00-00

$7.06

26

GROMMET

6CS-14445-01-00

$5.29

27

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable
