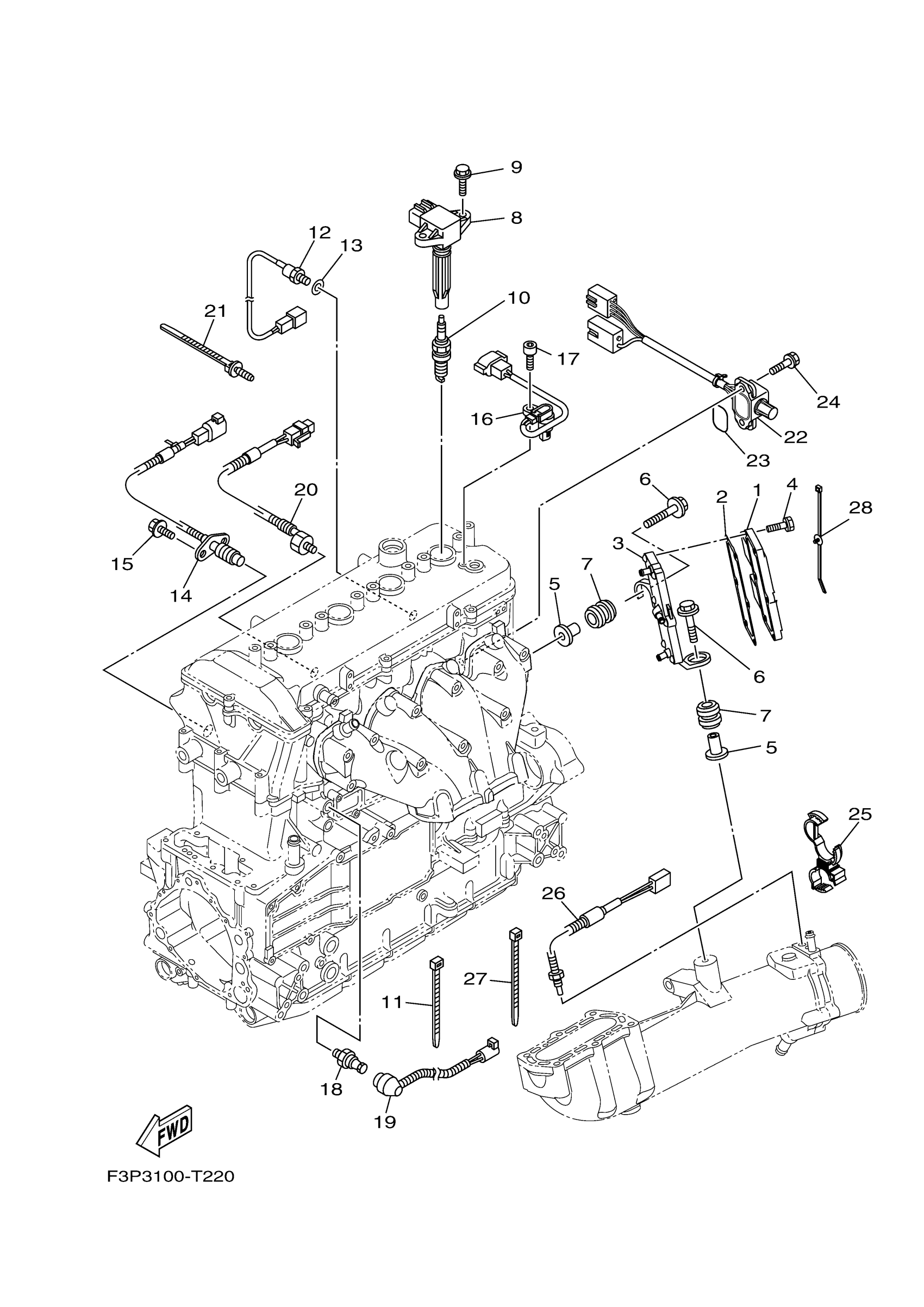

Yamaha FX1800AC (FX LIMITED SVHO) F5GF 2026 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6EK-81960-10-00

$163.35

2

PLATE, RECTIFIER FITTING

6ET-81975-01-00

$6.18

3

COVER, RECTIFIER

6ET-81972-00-00

$113.22

4

BOLT, WITH WASHER

90119-06MA4-00

$3.42

5

COLLAR

90387-08M37-00

$9.68

6

BOLT, WITH WASHER

90119-08187-00

$2.82

7

GROMMET

90480-22M15-00

$11.01

8

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

9

BOLT,FLANGE (EW2)

90105-06903-00

$4.99

10

PLUG, SPARK (NGK LFR7A)

LFR-7A000-00-00

$12.13

11

CLAMP(3XW)

90464-35132-00

$6.57

12

THERMOSENSOR ASSY

61A-85790-01-00

$118.70

13

WASHER, PLATE

92990-10600-00

$2.51

14

THERMO SWITCH ASSY

6CR-82560-00-00

$73.71

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-06516-00

$3.68

16

SENSOR, CAM POSITION

60E-85896-02-00

$137.65

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$30.45

19

LEAD WIRE ASSY

6S5-81315-01-00

Unavailable

20

SENSOR, KNOCK

6AN-85780-01-00

$278.64

21

CLAMP

90464-20005-00

$2.13

22

EARTH PLATE COMP.

6CS-8273J-11-00

$174.99

23

O-RING (341)

93210-32172-00

Unavailable

24

BOLT, WITH WASHER

90119-06MA3-00

$2.66

25

CLAMP

90464-20008-00

Unavailable

26

THERMOSENSOR ASSY

6AA-85790-00-00

$103.73

27

CLAMP

90464-20005-00

$2.13

28

CLAMP

90464-31002-00

Unavailable
