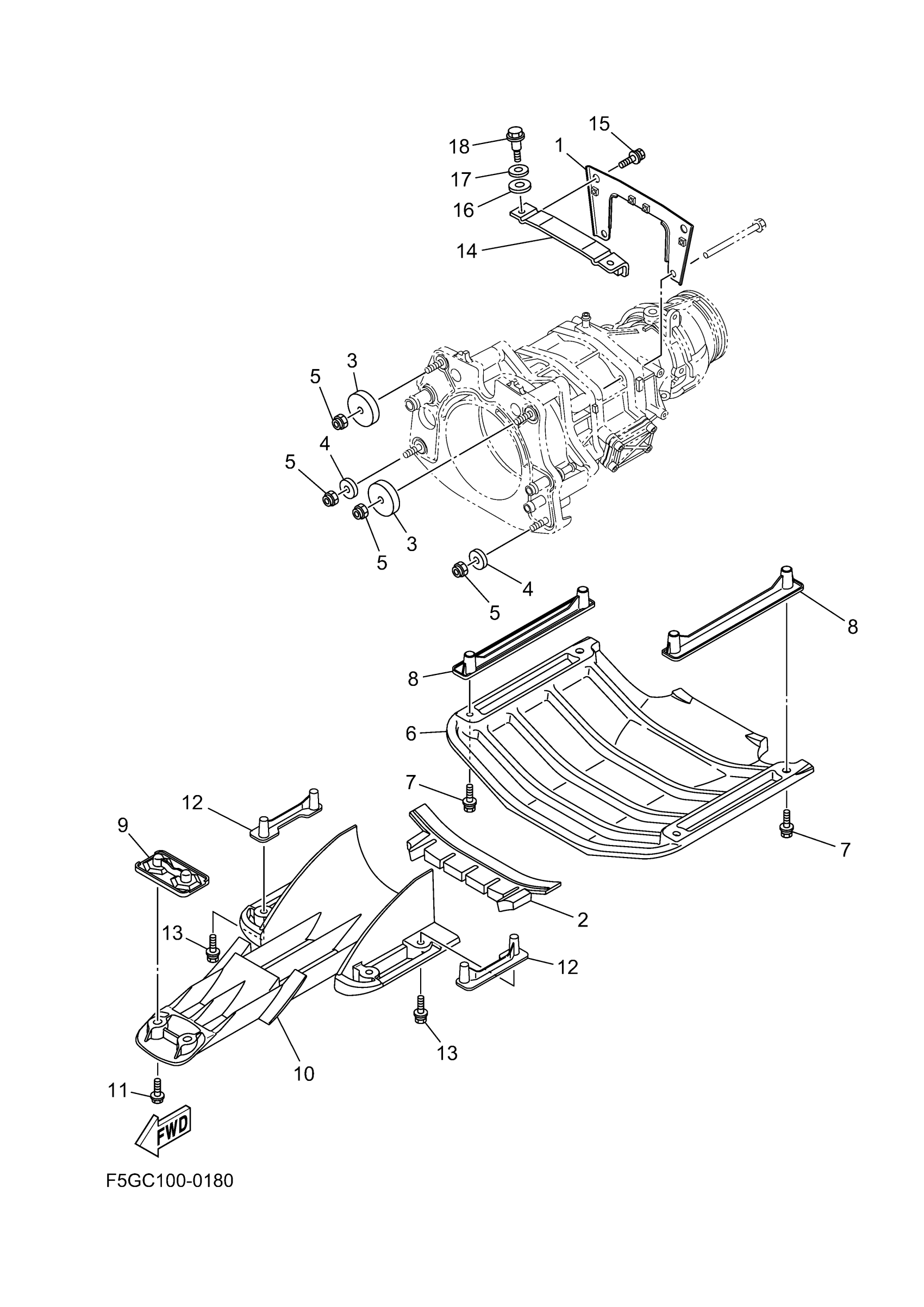

Yamaha FX1800AB (FX LIMITED SVHO) F5GC 2025 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6EY-R1959-00-00

$15.07

2

SPACER

F2S-U72C0-01-00

$15.79

3

WASHER

F1S-U725E-01-00

$8.61

4

WASHER, PLATE

90201-10801-00

$3.65

5

NUT, NYLON

9572R-10300-00

$3.52

6

PLATE 2

F5G-U273B-00-00

$125.36

7

BOLT, WITH WASHER

90119-08829-00

$4.09

8

BRACKET 2

F7K-U8572-00-00

$14.35

9

BRACKET, 3

F2S-U8577-00-00

$15.79

10

SCREEN, INTAKE

6ET-R1333-00-00

$111.93

11

BOLT, WITH WASHER

90119-08829-00

$4.09

12

BRACKET 1

F2X-U8571-00-00

$13.63

13

BOLT, WITH WASHER

90119-08829-00

$4.09

14

BRACKET

F2C-U7557-01-00

$29.84

15

BOLT, WITH WASHER

90119-08800-00

$4.31

16

GASKET

90430-12002-00

$1.72

17

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

18

BOLT

90109-08043-00

$4.03
