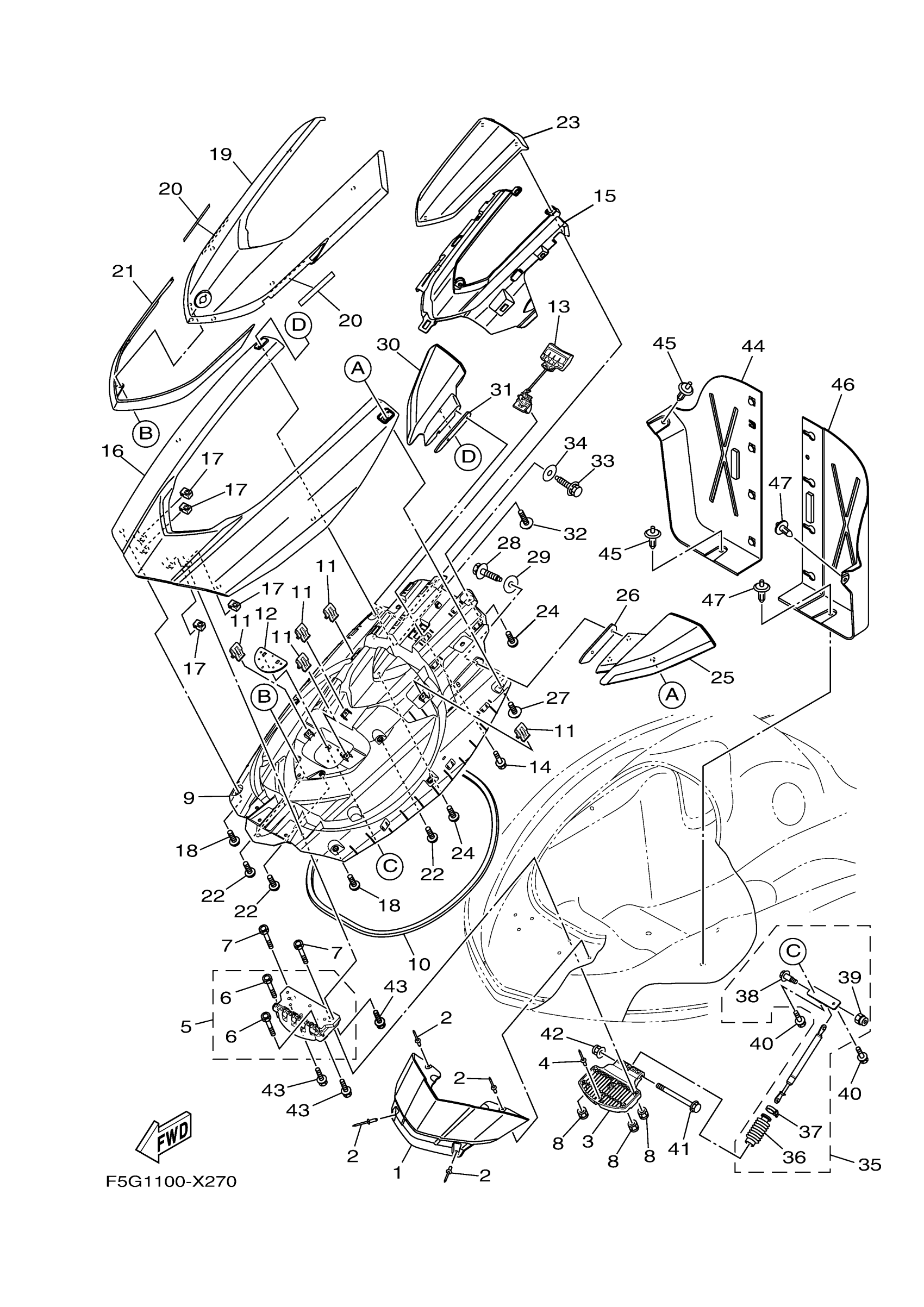

Yamaha FX1800AA (FX LIMITED SVHO) F5G9 2024 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT (SSA)

F3X-U513M-02-PC

Unavailable

2

RIVET, BLIND

90267-489U6-00

Unavailable

3

PLATE, HINGE LID

F3X-U518E-00-00

$21.63

4

RIVET, BLIND

90267-48806-00

$2.16

5

HINGE, LID

F3X-U517D-01-00

$28.34

6

BOLT

F3X-U3222-00-00

$0.79

7

BOLT

F3X-U3222-00-00

$0.79

8

NUT, LOCK

F2N-U142L-00-00

$1.00

9

INNER, ENGINE HATCH

F5G-U519G-02-00

$111.93

10

PACKING 1

F3X-U2663-10-00

Unavailable

11

CLIP

F3Y-U153K-00-00

$1.37

12

PLATE, HATCH

F3X-U5148-00-00

$7.24

13

LOCK, LID

F3X-U517C-00-00

$28.70

14

BOLT, WITH WASHER (EW3)

90119-05912-00

$3.88

15

OUTER, ENGINE HATCH

F5G-U519F-00-00

$29.09

16

LID, ENGINE ROOM (

F5G-U517B-01-P6

Unavailable

17

NUT

F3X-U517E-00-00

$1.29

18

SCREW

F2S-U13C1-00-00

$2.52

19

VISOR

F5G-U515N-02-P7

Unavailable

20

DAMPER 2

F0X-U515E-02-00

Unavailable

21

ORNAMENT, CENTER

F5G-U517V-01-00

$15.07

22

SCREW

F2S-U13C1-00-00

$2.52

23

VISOR, 2

F5G-U515P-01-00

$12.91

24

SCREW

F2S-U13C1-00-00

$2.52

25

MIRROR ASSY 1

F3X-U590D-D0-00

$114.91

26

PLATE

F5G-U5193-00-00

$3.73

27

SCREW

F5G-U6829-09-00

Unavailable

28

BOLT, WITH WASHER

90119-06820-00

$3.65

29

WASHER, PLATE

90201-068G0-00

$1.04

30

MIRROR ASSY 2

F3X-U590E-D0-00

$114.91

31

PLATE

F5G-U5193-00-00

$3.73

32

SCREW

F5G-U6829-09-00

Unavailable

33

BOLT, WITH WASHER

90119-06820-00

$3.65

34

WASHER, PLATE

90201-068G0-00

$1.04

35

DAMPER ASSY

F2S-6514S-00-00

$199.11

36

. COVER, DAMPER

F1W-6514T-00-00

$23.87

37

BAND

1UA-82591-00-00

Unavailable

38

BOLT

90109-06218-00

$10.43

39

NUT, SELF-LOCKING

95720-06300-00

$1.72

40

BOLT, WITH WASHER

90119-06830-00

Unavailable

41

BOLT, SPECIAL

F3X-U491K-00-00

$2.24

42

NUT, LOCK

F3Y-U142L-00-00

$2.66

43

BOLT, WITH WASHER

90119-06896-00

$5.23

44

LOCKER,BOW

F3X-U475B-00-00

$23.12

45

RIVET

F4P-U1454-00-00

$1.01

46

PLATE, LOKER BOW

F3X-U475F-00-00

$23.12

47

RIVET

F4P-U1454-00-00

$1.01
