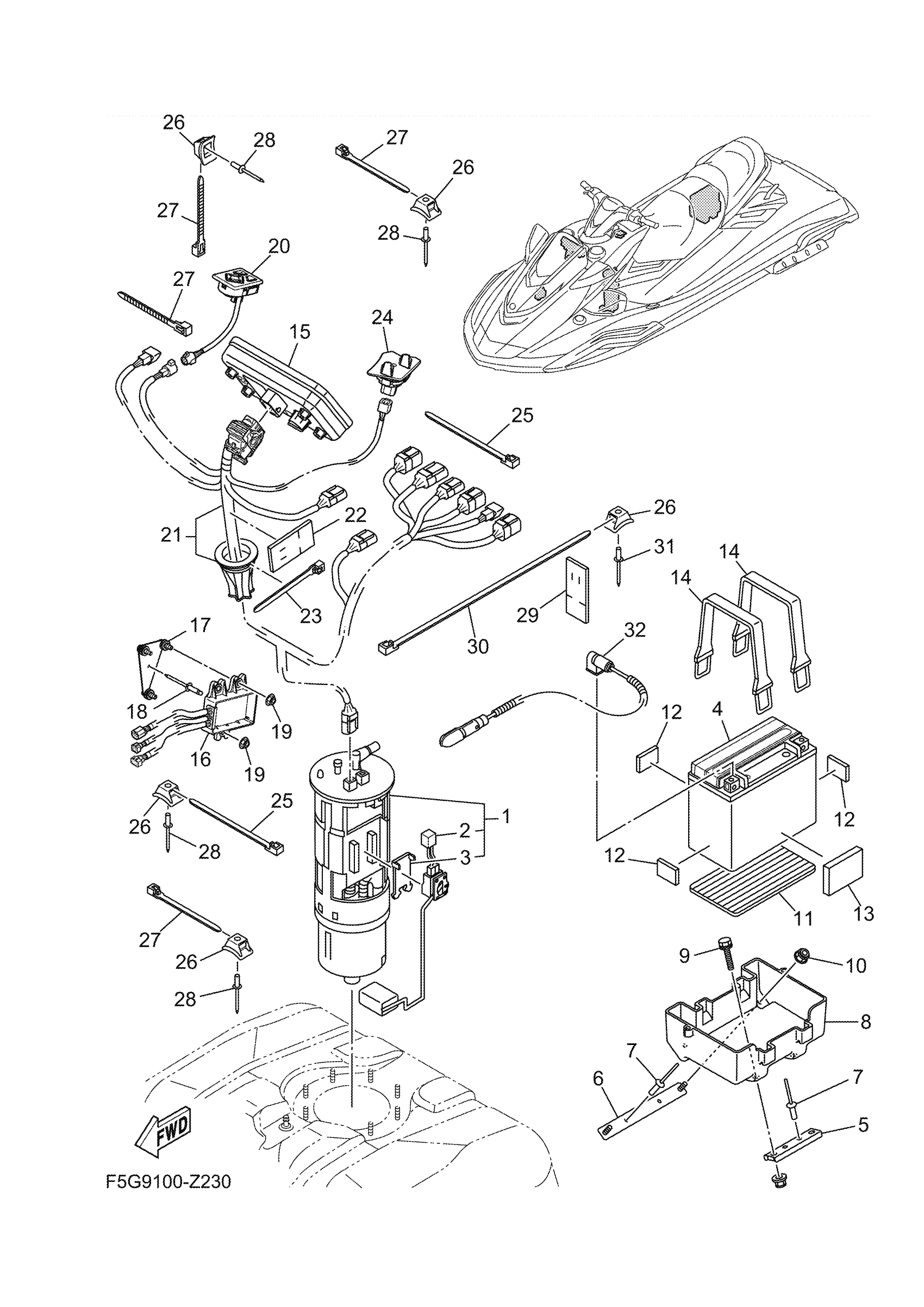

Yamaha FX1800AA (FX LIMITED SVHO) F5G9 2024 ELECTRICAL 3 Diagram
#
1
FUEL PUMP COMP.
6S5-13907-05-00
Unavailable
2
FUEL SENDER ASSY
6S5-682E0-10-00
Unavailable
3
DAMPER, STOPPER
60E-82556-10-00
Unavailable
4
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
5
PLATE, BASE 2
F2S-U8592-00-00
Unavailable
6
PLATE, BASE 3
F2S-U8593-00-00
Unavailable
7
RIVET (EU0)
90267-48938-00
Unavailable
8
CASE, BATTERY
F2S-U8211-00-00
Unavailable
9
BOLT, WITH WASHER
90119-06820-00
Unavailable
10
NUT, LOCK
F2N-U142L-00-00
Unavailable
11
PAD, BATTERY
F1S-U8221-00-00
Unavailable
12
PAD, BATTERY
EU0-U8221-31-00
$2.99
13
PACKING
F7K-U1743-00-00
$4.99
14
BAND, BATTERY 1
F4P-U821D-00-00
Unavailable
15
METER ASSY
F7K-U820A-00-00
Unavailable
16
CONVERTING UNIT
F5G-HA260-00-00
Unavailable
17
BRACKET
F5G-U826C-00-00
Unavailable
18
RIVET (EU0)
90267-48938-00
Unavailable
19
NUT, LOCK
F2N-U142L-00-00
Unavailable
20
SWITCH ASSY.
F5G-U8090-01-00
Unavailable
21
WIRE HARNESS,1
F5G-U0891-00-00
Unavailable
22
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
23
CLAMP
90464-32801-00
Unavailable
24
MIC ASSY
F5G-U827A-00-00
Unavailable
25
CLAMP
90464-32801-00
Unavailable
26
BASE, CLAMP
F1W-U828M-00-00
Unavailable
27
CLAMP
90464-32801-00
Unavailable
28
RIVET, BLIND
90267-48806-00
Unavailable
29
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
30
CLAMP
F5G-U4256-00-00
Unavailable
31
RIVET, BLIND
90267-48806-00
Unavailable
32
WIRE, MINUS LEAD
6JP-82116-00-00
Unavailable
