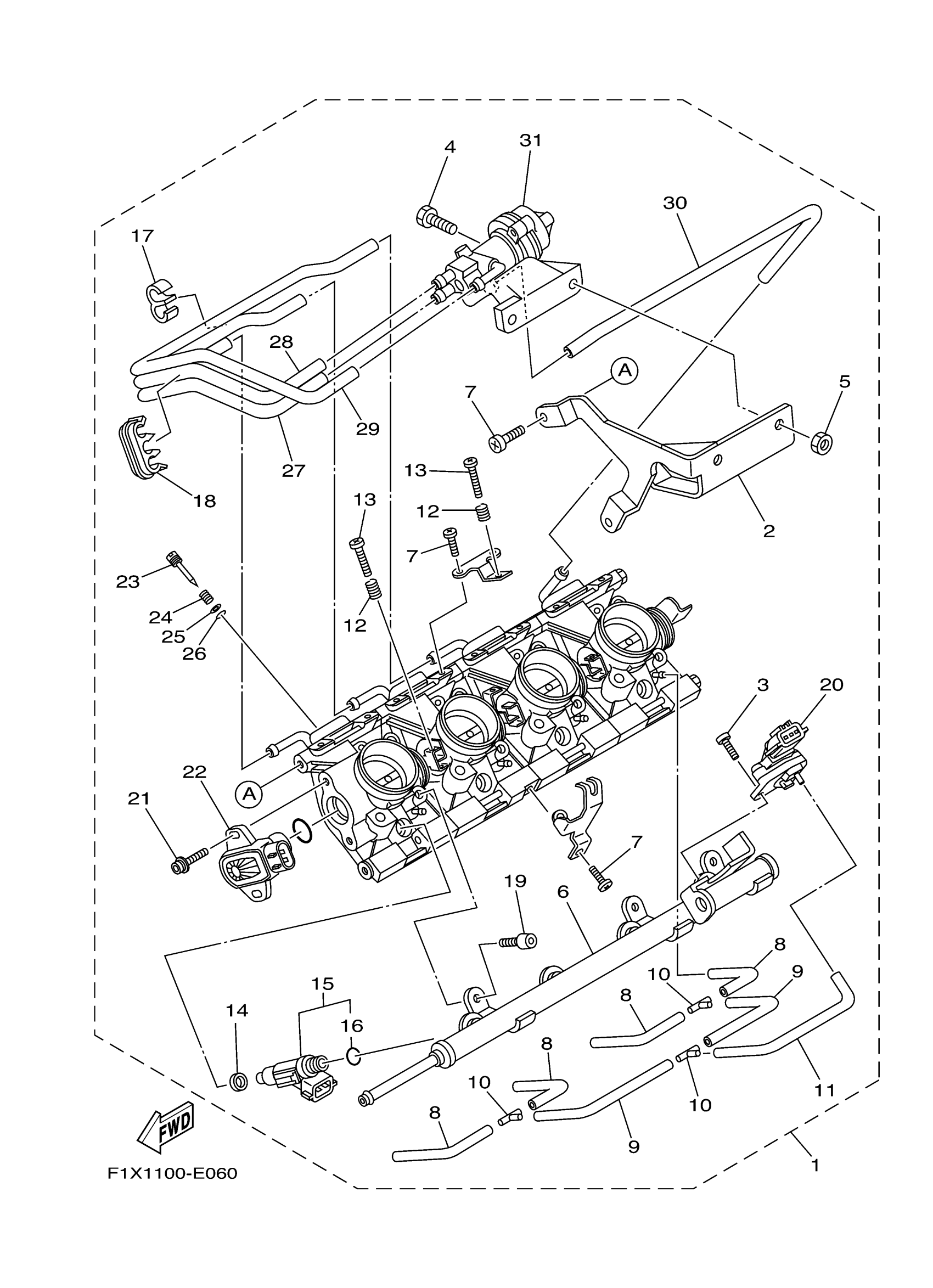

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 INJECTION PUMP 1 CA NY Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6B6-13750-01-00

Unavailable

2

. BRACKET 1

6B6-14291-00-00

Unavailable

3

. SCREW 3

68V-81147-00-00

Unavailable

4

. BOLT

63P-14446-00-00

Unavailable

5

. NUT

6B6-14358-00-00

Unavailable

6

. DELIVERY PIPE

60E-12880-11-00

Unavailable

7

. SCREW

60E-14216-00-00

Unavailable

8

HOSE

5FL-14987-10-00

Unavailable

9

PIPE

5FL-14349-10-00

$7.99

10

NIPPLE

4N0-14251-00-00

Unavailable

11

PIPE

5PW-14396-00-00

$11.99

12

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

13

. SCREW, THROTTLE

69J-14321-00-00

Unavailable

14

GASKET

90430-09002-00

$11.49

15

. INJECTOR

60E-13761-10-00

Unavailable

16

.. O-RING

60E-14147-00-00

Unavailable

17

. CLIP

6B6-12486-00-00

Unavailable

18

. CLIP 2

6B6-12487-00-00

Unavailable

19

. BOLT

6B6-14446-00-00

Unavailable

20

. SENSOR ASSY

6B6-83688-00-00

Unavailable

21

. SCREW 1

68V-81145-01-00

Unavailable

22

. THROTTLE SENSOR ASSY

60E-85885-10-00

Unavailable

23

. SCREW, PILOT

4BH-14923-00-00

Unavailable

24

. SPRING, AIR ADJUSTING

4BH-14134-00-00

Unavailable

25

WASHER

3L5-14962-00-00

Unavailable

26

O-RING, PILOT SCREW

3H1-14147-00-00

Unavailable

27

. HOSE 1

6B6-13545-00-00

Unavailable

28

. HOSE 2

6B6-13546-00-00

Unavailable

29

. HOSE 3

6B6-13547-00-00

Unavailable

30

. HOSE, AIR 4

6B6-13548-00-00

Unavailable

31

. BY-PASS VALVE MOTOR ASSY

6B6-13660-00-00

Unavailable
