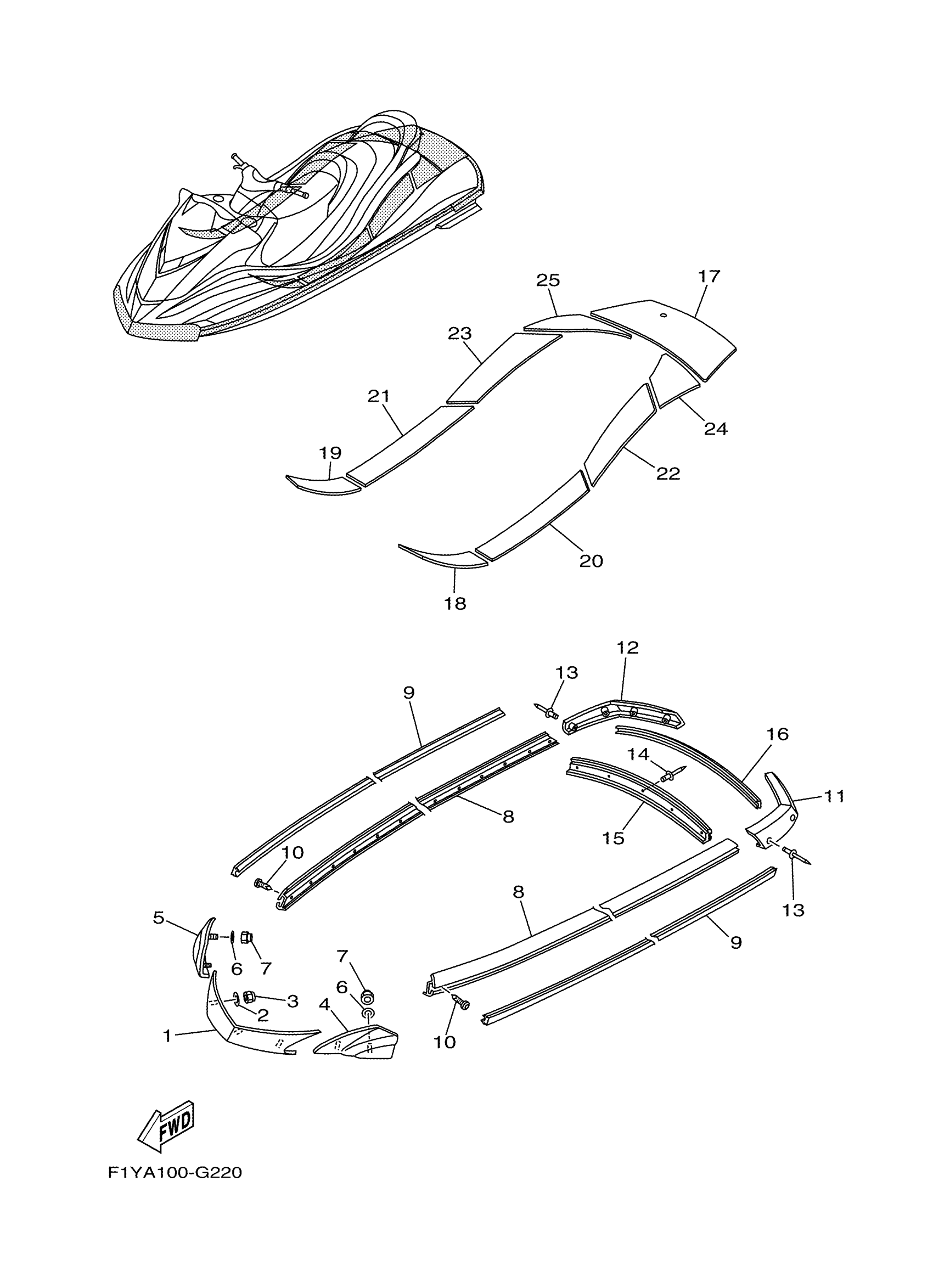

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 GUNWALE MAT Diagram

#

Description

Price

1

BOW GUNWALE COMP.

F1S-U2501-10-00

Unavailable

2

WASHER

9299R-06200-00

Unavailable

3

NUT, NYLON

9572R-06300-00

Unavailable

4

JOINT, GUNWALE LH

F1S-U252E-10-00

Unavailable

5

JOINT, GUNWALE RH

F1S-U252F-10-00

Unavailable

6

WASHER

9299R-06200-00

Unavailable

7

NUT, NYLON

9572R-06300-00

Unavailable

8

GUNWALE, SIDE

F1B-U2512-00-00

Unavailable

9

INNER,GUNWALE

F1B-U2519-10-00

Unavailable

10

SCREW,TAPPING

90169-059U1-00

Unavailable

11

GUNWALE, STERN 1

F1B-U251D-02-00

Unavailable

12

GUNWALE, STERN 2

F1B-U251E-02-00

Unavailable

13

RIVET, BLIND

90267-48825-00

Unavailable

14

RIVET, BLIND

90267-489US-00

Unavailable

15

COVER, GUNWALE 1

F1B-U252C-00-00

Unavailable

16

COVER, GUNWALE 2

F1B-U252D-10-00

Unavailable

17

MAT, UPPER

F1S-U3581-10-00

Unavailable

18

MAT, STEP 1

F1S-U351H-20-00

Unavailable

19

MAT, STEP 2

F1S-U351J-20-00

Unavailable

20

MAT, STEP 3

F1S-U351K-10-00

Unavailable

21

MAT, STEP 4

F1S-U351M-10-00

Unavailable

22

MAT, STEP 5

F1S-U351N-10-00

Unavailable

23

MAT, STEP 6

F1S-U351P-10-00

Unavailable

24

MAT, STEP 7

F1S-U351R-10-00

Unavailable

25

MAT, STEP 8

F1S-U351S-10-00

Unavailable
