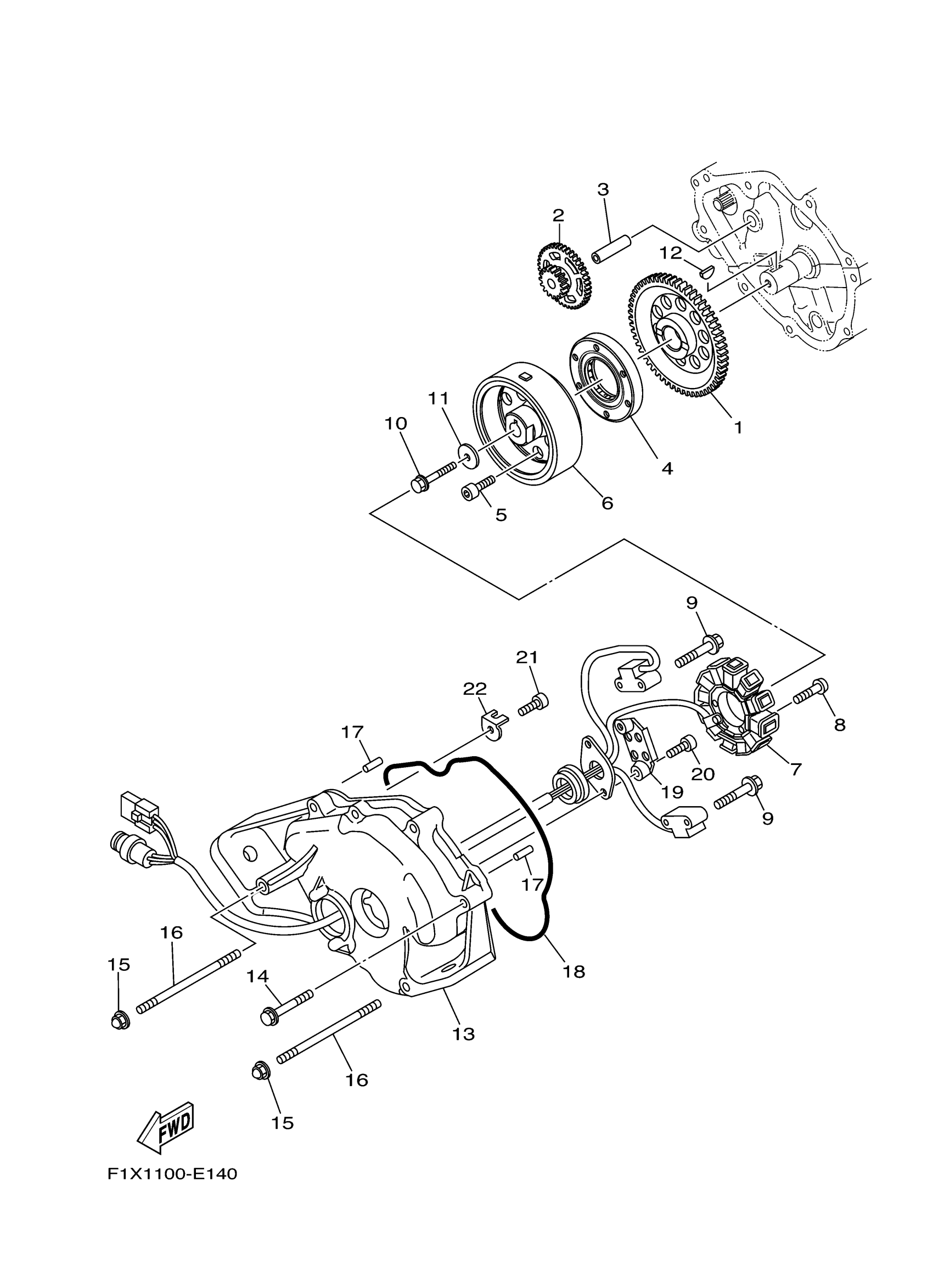

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 GENERATOR Diagram

#

Description
Price

1

GEAR 3

6D3-15515-00-00

$221.20

2

GEAR, IDLER 2

60E-15517-00-00

$112.11

3

SHAFT 1

60E-15521-00-00

$11.35

4

STARTER ONE-WAY ASSY

4WM-15590-00-00

$285.52

5

BOLT, SOCKET

91317-08020-00

$2.19

6

ROTOR ASSY

60E-81450-00-00

$540.89

7

STATOR ASSY

60E-81410-01-00

$490.89

8

SCREW

90149-06013-00

Unavailable

9

BOLT, WITH WASHER

97513-05514-00

$3.64

10

BOLT, WASHER BASED

90105-105A6-00

Unavailable

11

WASHER, PLATE

90201-103U7-00

Unavailable

12

KEY, WOODRUFF(1WG)

90280-03047-00

$4.54

13

COVER, FLYWHEEL

6B6-81337-00-94

$451.50

14

BOLT, WITH WASHER

90119-10016-00

$6.36

15

NUT, CAP

90176-10001-00

$3.33

16

BOLT, STUD

90116-10024-00

$10.99

17

PIN, DOWEL

93608-16M16-00

$2.41

18

O-RING

93212-04001-00

Unavailable

19

CLAMP

60E-81328-00-00

$7.27

20

BOLT,SOCKET

91317-06014-00

Unavailable

21

BOLT, SOCKET

91317-05010-00

Unavailable

22

PLATE

6D3-81845-00-00

$1.64
