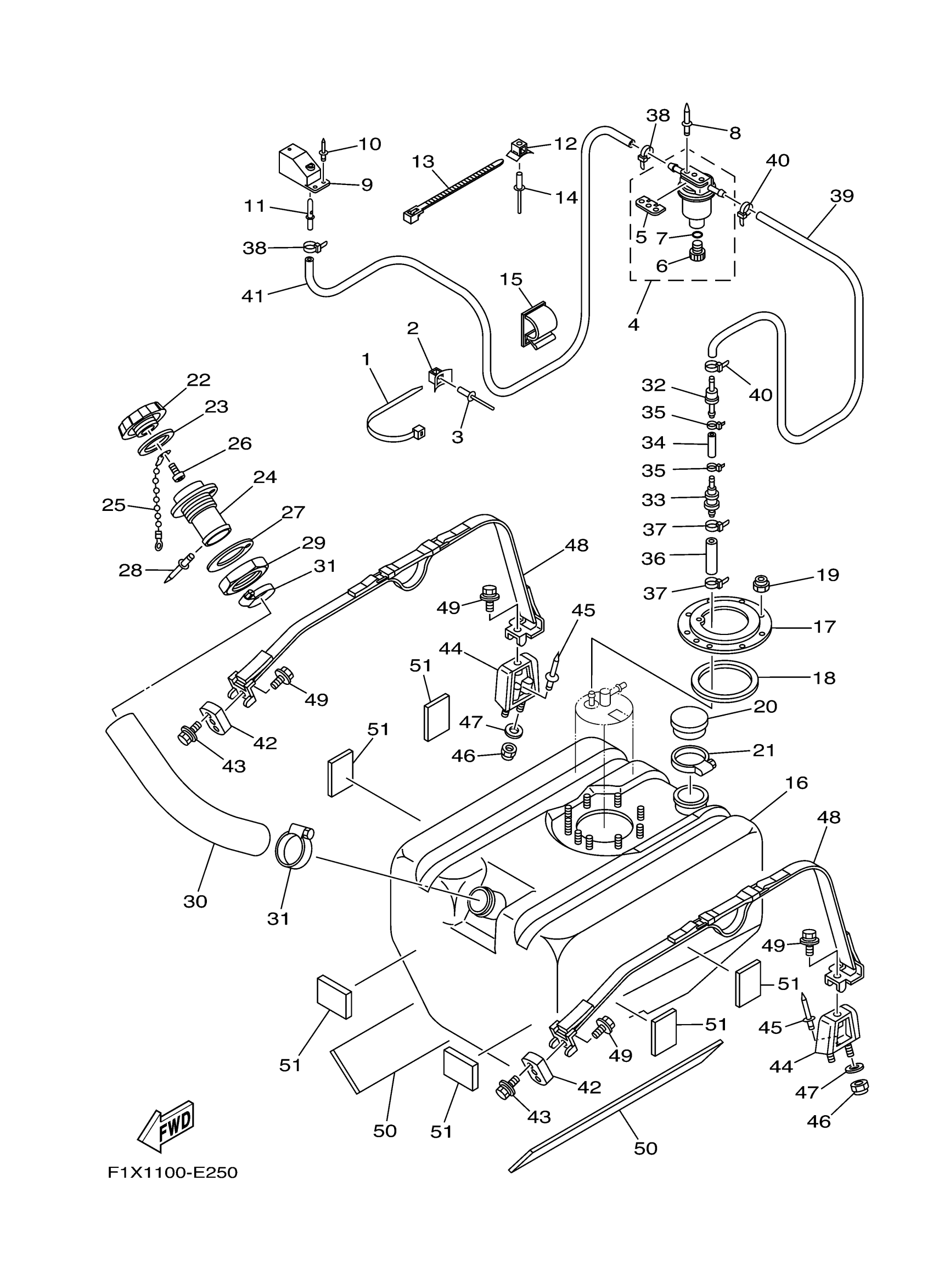

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 FUEL TANK Diagram

#

Description
Price

1

CLAMP

90464-99804-00

$4.10

2

CLAMP COMP (EU0)

90600-91736-00

$6.22

3

RIVET, BLIND

90267-48802-00

$1.98

4

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

5

. PLATE, FILTER

EW2-62142-00-00

$44.76

6

. PLUG, DRAIN

70R-24543-00-00

$8.94

7

. O-RING

70R-24489-00-00

$4.93

8

RIVET, BLIND

90267-489U2-00

$1.51

9

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

PIPE, VENTILATION

F1G-62149-00-00

$11.18

12

CLAMP COMP (EU0)

90600-91736-00

$6.22

13

CLAMP

90464-32801-00

$1.29

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

CLAMP

90464-17800-00

$3.28

16

TANK, FUEL

F1B-U7711-01-00

Unavailable

17

RING

F1B-U7773-00-00

$22.25

18

PACKING, SEAL

F1B-67747-00-00

$17.09

19

NUT, NYLON

9572R-06300-00

$2.93

20

COVER

FN8-6771K-00-00

$15.66

21

BAND, HOSE 62

90601-162U5-00

$6.46

22

CAP, FUEL FILLER

GP7-U7831-11-00

$35.66

23

PACKING

GP7-U7832-01-00

$5.62

24

SOCKET

GP7-U7833-11-00

$11.48

25

CHAIN BALL

GP7-U7835-00-00

$4.72

26

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

27

PACKING FUEL FILLER

GP7-U7834-00-00

$12.34

28

RIVET, BLIND

90267-329UR-00

$1.23

29

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

30

HOSE

F1B-U7844-01-00

Unavailable

31

BAND, HOSE 55

90601-155U4-00

$6.17

32

. CHECK VALVE

F1B-67767-00-00

Unavailable

33

. ROLL OVER VALVE

FJ0-67766-00-00

$53.72

34

HOSE

90699-50100-00

$26.85

35

CLAMP

90465-10098-00

$2.24

36

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.19

37

CLAMP

90465-10098-00

$2.24

38

CLAMP

90465-10098-00

$2.24

39

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

40

CLAMP

90465-10098-00

$2.24

41

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

42

NUT, SPECIAL

F1B-U2873-00-00

Unavailable

43

BOLT, WITH WASHER

90119-08800-00

$4.31

44

BRKT, BAND

F1B-6774J-00-00

$153.72

45

RIVET, BLIND

90267-489UE-00

Unavailable

46

NUT, NYLON

9572R-06300-00

$2.93

47

WASHER

9299R-06200-00

$0.43

48

BELT, TANK 1

F1B-67743-03-00

Unavailable

49

BOLT, WITH WASHER

90119-08800-00

$4.31

50

MAT 1

F1B-U759B-00-00

Unavailable

51

MAT 2

F1B-U759C-00-00

Unavailable
