- FX1100LG (WaveRunner FX High Output CA) F1XN 2008
EXHAUST 3 CA NY

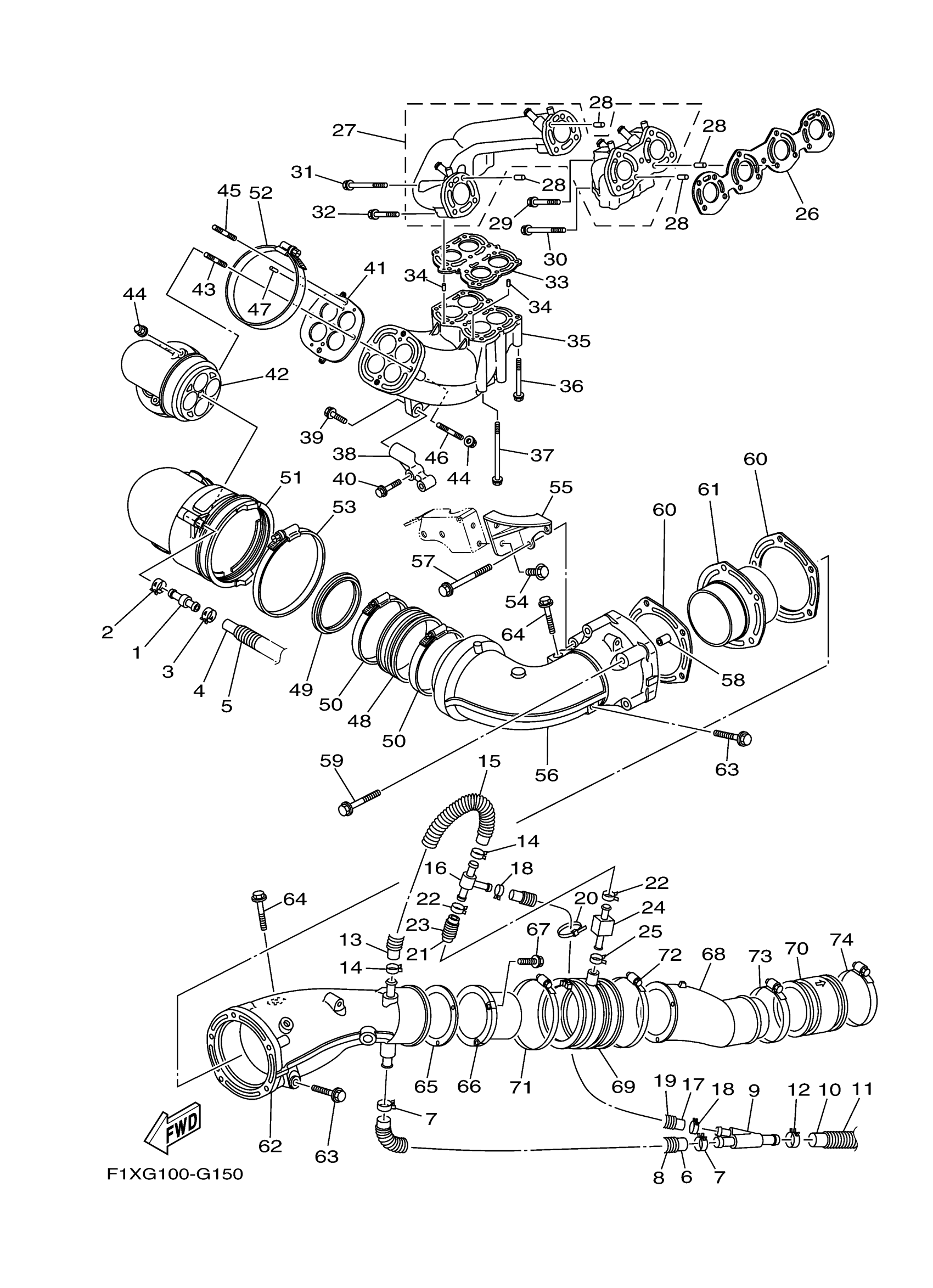

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 EXHAUST 3 CA NY Diagram
#
1
JOINT, HOSE 4
60E-12594-00-00
Unavailable
2
CLIP
90467-120A0-00
Unavailable
3
CLIP
90467-130A0-00
Unavailable
4
HOSE
90445-14M03-00
Unavailable
5
HOSE(GK5)
90446-20M65-00
$7.49
6
HOSE, 4
6AA-1244G-00-00
Unavailable
7
CLIP
90467-180A0-00
$8.49
8
TUBE
F2T-U773D-00-00
Unavailable
9
JOINT, HOSE 1
60E-12581-00-00
Unavailable
10
HOSE (L650)
90445-20005-00
Unavailable
11
HOSE (L550)
90446-27MF2-00
Unavailable
12
CLIP
90467-200A0-00
Unavailable
13
HOSE 5
6AA-1244H-00-00
Unavailable
14
CLIP
90467-180A0-00
$8.49
15
TUBE (L280)
90447-22010-00
Unavailable
16
JOINT, HOSE 3
60E-12584-00-00
Unavailable
17
HOSE 6
6AA-1244J-00-00
Unavailable
18
CLIP
90467-150A0-00
Unavailable
19
TUBE (L285)
90447-19010-00
Unavailable
20
CLAMP
90465-13M18-00
Unavailable
21
HOSE (L70)
90445-19004-00
Unavailable
22
CLIP
90467-180A0-00
$8.49
23
TUBE (L30)
90447-22009-00
Unavailable
24
JOINT 2
6AA-1247A-00-94
Unavailable
25
CLIP
90467-150A0-00
Unavailable
26
GASKET, EXHAUST PIPE
60E-14613-01-00
Unavailable
27
EXHAUST PIPE ASSY 1
60E-14610-00-94
Unavailable
28
PIN, DOWEL
93608-16M16-00
Unavailable
29
BOLT, WITH WASHER
90119-08029-00
Unavailable
30
BOLT, WITH WASHER
90119-08034-00
Unavailable
31
BOLT, WITH WASHER
90119-08029-00
Unavailable
32
BOLT, WITH WASHER
90119-08M66-00
Unavailable
33
GASKET, MUFFLER DAMPER 1
60E-14739-02-00
Unavailable
34
PIN, DOWEL (614)
93606-12019-00
Unavailable
35
PIPE, EXHAUST 3
60E-14631-00-94
Unavailable
36
BOLT, WITH WASHER
90119-08036-00
Unavailable
37
BOLT, WITH WASHER
90119-08031-00
Unavailable
38
STAY, MUFFLER 1
60E-14771-00-94
Unavailable
39
BOLT, WITH WASHER
90119-10013-00
Unavailable
40
BOLT, WITH WASHER
90119-08043-00
Unavailable
41
GASKET, MUFFLER DAMPER 2
60E-14749-02-00
Unavailable
42
RING, JOINT
60E-14712-02-94
Unavailable
43
BOLT, STUD
90116-10016-00
Unavailable
44
NUT
90179-10M35-00
Unavailable
45
BOLT, STUD
90116-10017-00
Unavailable
46
BOLT, STUD
90116-10018-00
Unavailable
47
PIN, DOWEL (614)
93606-12019-00
Unavailable
48
JOINT, EXHAUST 2
60E-14625-00-00
Unavailable
49
. SEAL, EXHAUST
60E-14642-00-00
Unavailable
50
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
51
JOINT, EXHAUST 1
60E-14615-00-00
Unavailable
52
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
53
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
54
BOLT, WITH WASHER
90119-08032-00
Unavailable
55
STAY, MUFFLER 1
6AA-14771-01-00
Unavailable
56
MUFFLER 2
6AA-14721-A0-94
Unavailable
57
BOLT
6AA-14651-00-00
Unavailable
58
PIN, DOWEL
99530-12016-00
Unavailable
59
BOLT, WITH WASHER
90119-08021-00
Unavailable
60
. GASKET, EXHAUST OUTER COVER
6AA-41124-00-00
Unavailable
61
CATALYST ASSY.
6AA-14740-00-00
Unavailable
62
OUTER COVER, EXHAUST
6AA-41123-A0-94
Unavailable
63
BOLT, WITH WASHER
90119-10031-00
Unavailable
64
BOLT, WITH WASHER
90119-10032-00
Unavailable
65
. GASKET, EXHAUST PIPE
60E-14623-00-00
Unavailable
66
PIPE, TAIL
60E-14784-10-94
Unavailable
67
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
68
PIPE, OUTLET
6AA-14752-00-94
Unavailable
69
PIPE 2
60E-1475E-00-00
Unavailable
70
PIPE 3
6B6-1475F-00-00
Unavailable
71
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
72
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
73
CLAMP, HOSE
90460-90M11-00
Unavailable
74
CLAMP, HOSE
90460-90M11-00
Unavailable
