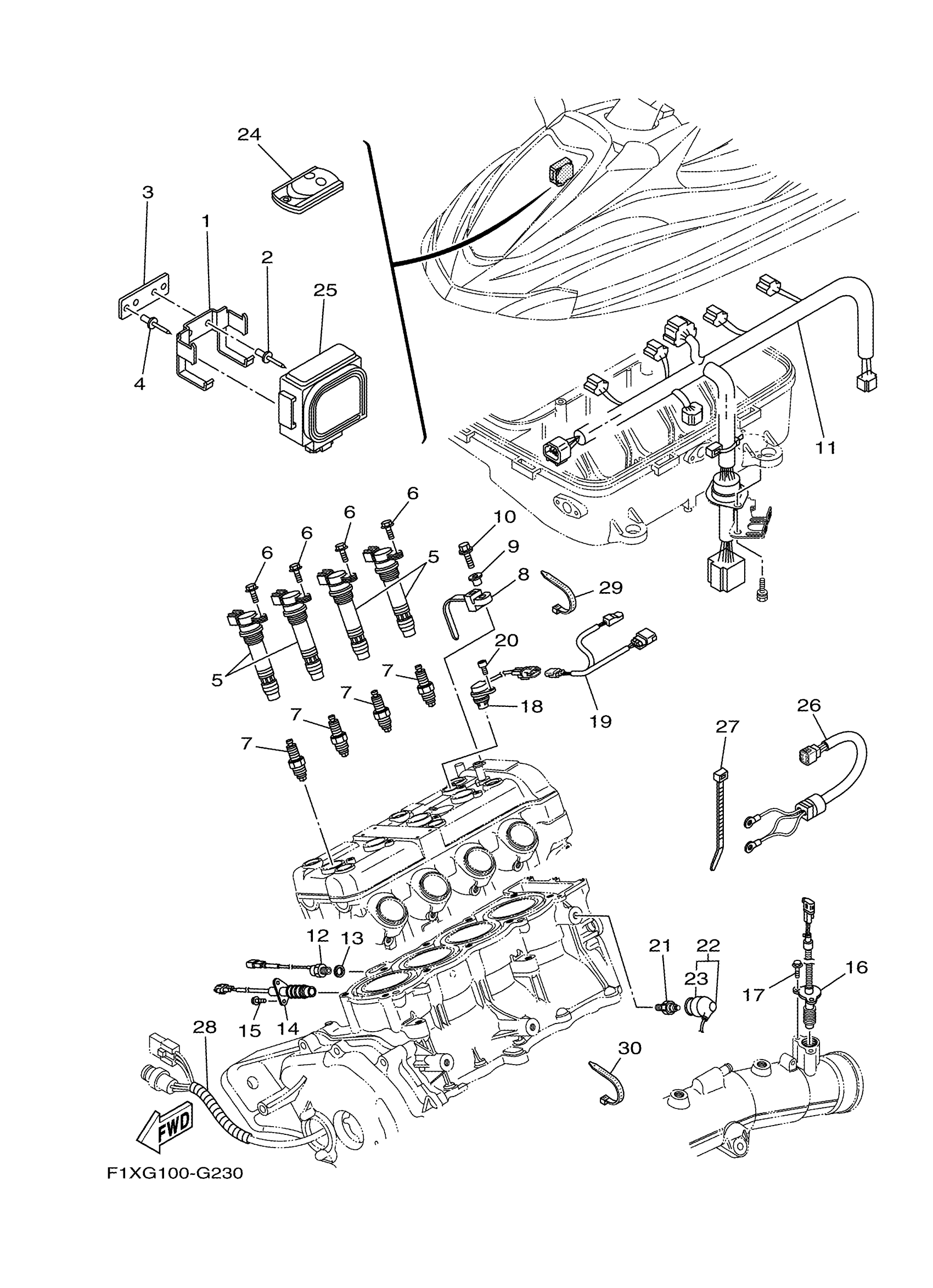

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 ELECTRICAL 2 48 Diagram

#

Description
Price

1

BRACKET

F1W-U826C-00-00

Unavailable

2

RIVET (EU0)

90267-48938-00

Unavailable

3

PLATE

F1W-U8376-00-00

Unavailable

4

RIVET (EU0)

90267-48938-00

Unavailable

5

IGNITION COIL ASSY

6D3-82310-01-00

Unavailable

6

BOLT, FLANGE

95814-06016-00

Unavailable

7

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

8

CLAMP

90465-12M53-00

Unavailable

9

COLLAR

90387-06M05-00

Unavailable

10

BOLT, FLANGE

95814-06016-00

Unavailable

11

WIRE HARNESS ASSY 2

6B6-8259M-00-00

Unavailable

12

THERMOSENSOR ASSY

60E-85790-02-00

Unavailable

13

WASHER, PLATE

92990-10600-00

Unavailable

14

THERMO SWITCH ASSY

60E-82560-A1-00

Unavailable

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

16

THERMO SWITCH ASSY

60E-82560-01-00

Unavailable

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

18

SENSOR, CAM POSITION

60E-85896-02-00

Unavailable

19

CONDENSER 1

60E-81325-10-00

Unavailable

20

BOLT,SOCKET

91380-06016-00

Unavailable

21

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

22

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

23

CAP

60E-82532-01-00

Unavailable

24

XMTR. COMP.

6B6-86261-00-00

Unavailable

25

RECEIVER COMPLETE

6B6-86265-00-00

Unavailable

26

WIRE, LEAD

6AA-82531-00-00

Unavailable

27

CLAMP

90465-13M18-00

Unavailable

28

HOSE, WITH SPRING

90447-19004-00

Unavailable

29

CLAMP (6E5)

90465-13M11-00

Unavailable

30

CLAMP (6E5)

90465-13M11-00

Unavailable
