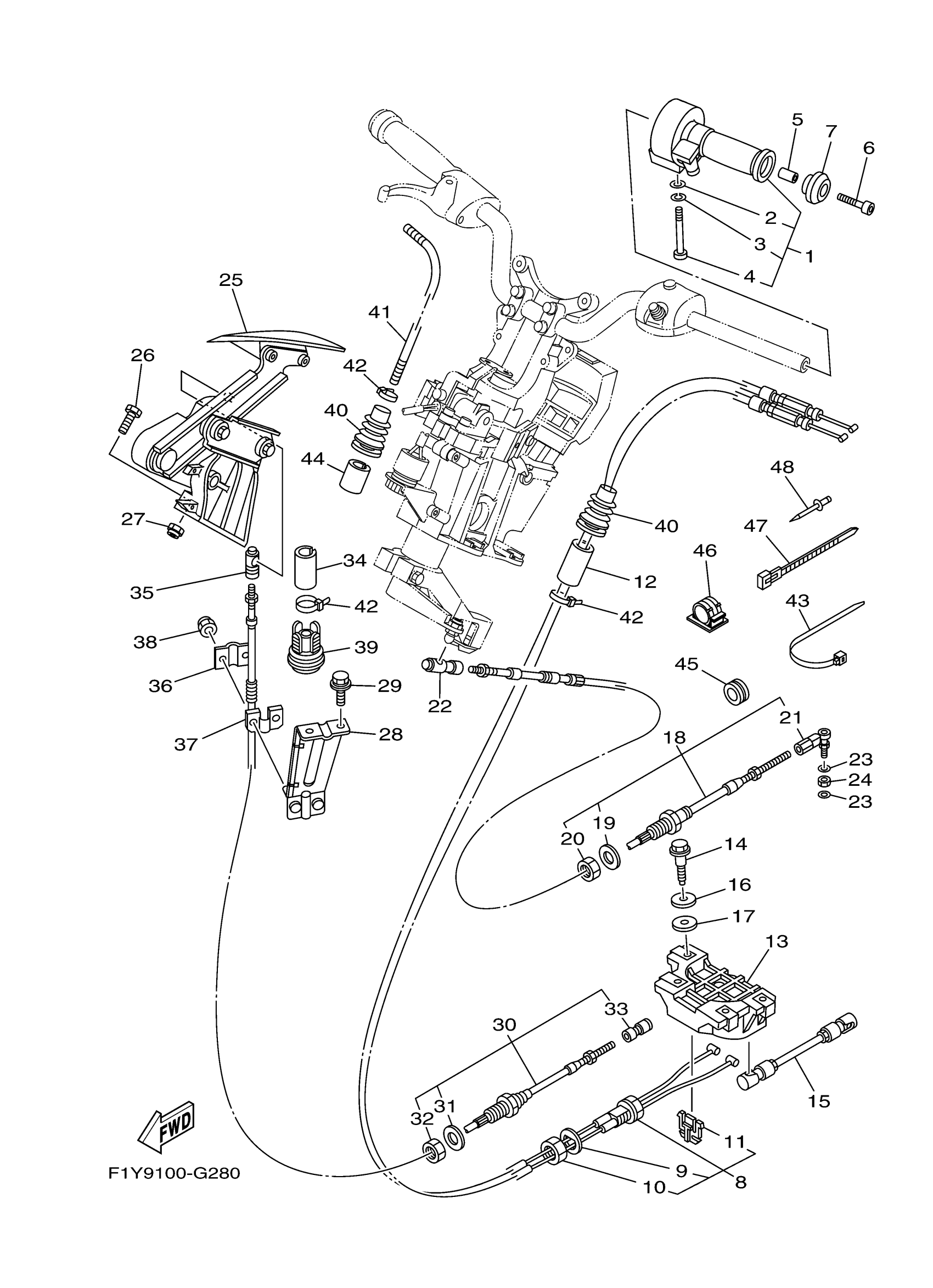

Yamaha FX1100LG (WaveRunner FX High Output CA) F1XN 2008 CONTROL CABLE Diagram

#

Description
Price

1

NOZZLE,CONTROL ASSY

F1W-6153A-00-00

$213.62

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

3

WASHER, SPRING

92995-06100-00

$2.95

4

SCREW

F1W-613C1-10-00

$10.49

5

COLLAR

90387-05800-00

$3.86

6

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

7

GRIP, END

GP7-U155F-00-00

$2.88

8

CABLE,NOZZLE CONTROL 3

F1W-6153E-01-00

$568.17

9

. PACKING C

F1W-61438-00-00

$5.00

10

NUT

F1B-6151S-01-00

$14.31

11

. GUIDE, CABLE

F1W-61557-00-00

$6.36

12

PACKING, HOSE 2

GJ1-U7578-01-00

Unavailable

13

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

14

BOLT

90109-06233-00

$124.23

15

ROD ASSY

F1W-6150A-00-00

$181.80

16

WASHER, PLATE

90201-099U3-00

$2.16

17

WASHER, PLATE

90202-08002-00

$2.07

18

CABLE, STEERING

F1S-61481-02-00

Unavailable

19

. PACKING C

F1B-61438-00-00

$2.72

20

NUT

F1B-6151S-01-00

$14.31

21

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

22

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

23

WASHER, PLATE

90201-06906-00

$2.80

24

NUT

9538R-06700-00

$1.01

25

REMOCON. LEVER ASSY.

F1X-6134A-10-00

$377.26

26

BOLT(JF7)

97080-06030-00

Unavailable

27

NUT, SELF-LOCKING

90185-06014-00

$5.91

28

BRACKET, STOPPER CABLE

F1X-61467-01-00

$84.83

29

BOLT, WITH WASHER

90119-08826-00

$4.62

30

CABLE,REVERSE

F1W-6149C-02-00

Unavailable

31

. PACKING C

F1B-61438-00-00

$2.72

32

NUT

F1B-6151S-01-00

$14.31

33

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

34

PACKING, HOSE 2

GJ1-U7578-01-00

Unavailable

35

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

36

STOPPER, CABLE

GH1-61468-01-00

$8.32

37

HOLDER, STOPPER

GU5-6146K-10-00

$87.86

38

NUT, NYLON

9572R-06300-00

$2.80

39

GROMMET

F1W-U1519-00-00

$6.36

40

GROMMET

F0D-6822E-00-00

$18.49

41

TUBE, 2

F0D-6773E-00-00

$16.99

42

BAND

90601-200U1-00

$2.77

43

CLAMP

90464-32801-00

$1.23

44

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

45

GROMMET

90480-38800-00

$2.73

46

CLAMP COMP (EU0)

90600-91736-00

Unavailable

47

CLAMP

90464-32801-00

$1.23

48

RIVET, BLIND

90267-48802-00

$1.98
