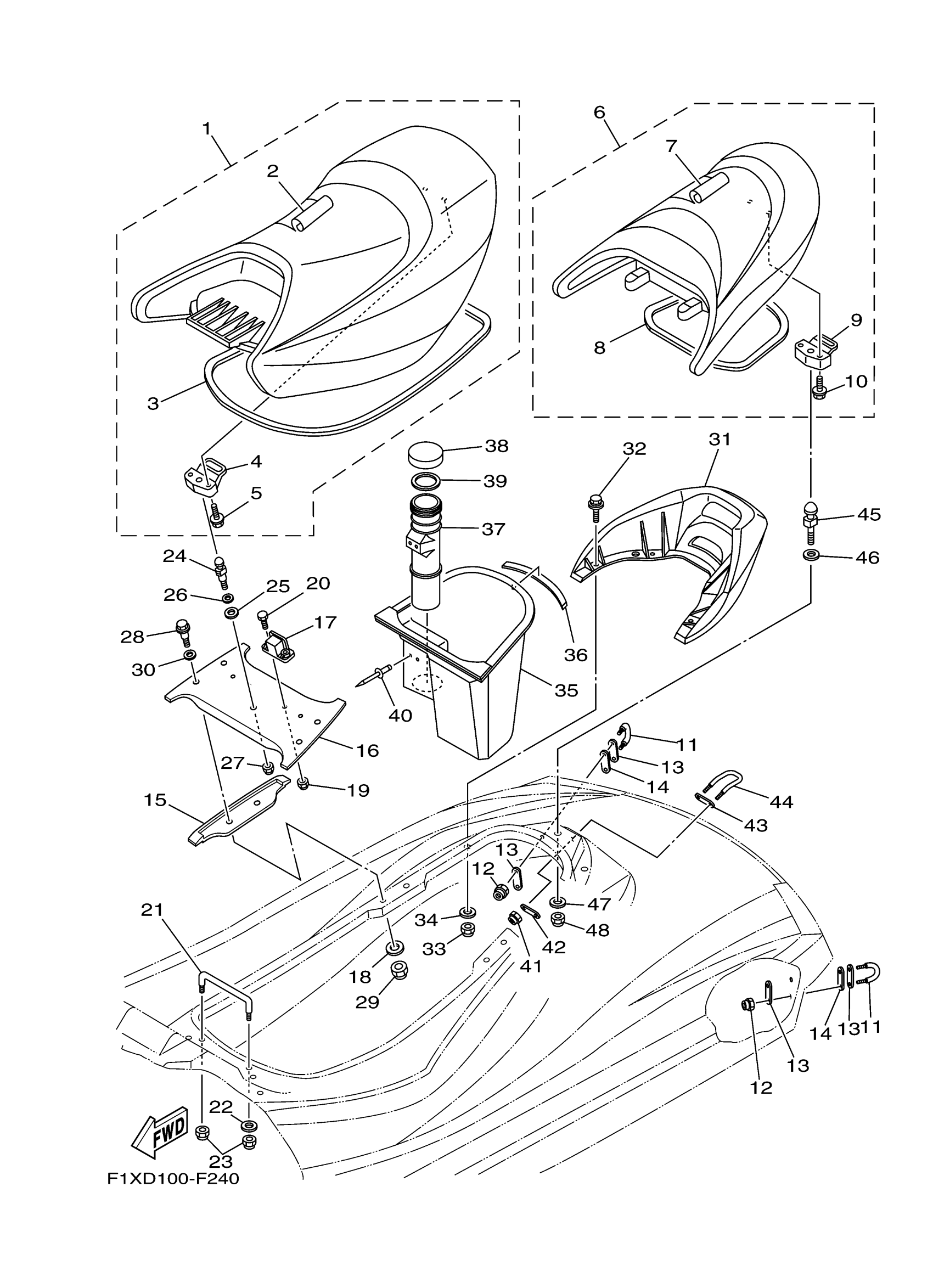

Yamaha FX1100F (WaveRunner FX HO) F1XD 2007 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F1S-U371A-90-00

Unavailable

2

. COVER, SEAT 1

F1S-U371B-90-00

Unavailable

3

. PACKING

F1B-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY(SILVER)

F1B-U372A-91-00

Unavailable

7

. COVER, SEAT

F1B-U372B-90-00

Unavailable

8

. PACKING 5

F1B-U266D-00-00

Unavailable

9

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

12

NUT, NYLON (6J8)

95780-08300-00

$10.55

13

PLATE A

GP7-U4953-10-00

$3.52

14

PACKING

F1B-U1653-03-00

$1.88

15

PACKING

F1X-U1653-00-00

Unavailable

16

BEAM, DECK 1

F1B-U8952-01-00

$228.77

17

STAY,SEAT 2

GU2-6378D-02-00

$19.68

18

WASHER

9299R-08200-00

Unavailable

19

NUT, NYLON

9572R-06300-00

$2.80

20

BOLT

90101-069U0-00

$1.23

21

STAY, SEAT 1

F0X-6378C-00-00

$51.50

22

WASHER, PLATE

90201-099U3-00

$2.16

23

NUT, NYLON (6J8)

95780-08300-00

$10.55

24

PIN

F1B-U3774-00-00

$22.71

25

PACKING 1

F0X-6375E-00-00

$3.64

26

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

27

NUT, NYLON

9572R-10300-00

$3.37

28

BOLT

F1B-U2624-00-00

Unavailable

29

NUT, NYLON (6J8)

95780-08300-00

$10.55

30

WASHER

9299R-10200-00

$1.63

31

GRIP, HAND (YAMAHA BLACK)

F1B-U271B-00-00

$368.17

32

BOLT, WITH WASHER

90119-08907-00

$5.45

33

NUT, NYLON (6J8)

95780-08300-00

$10.55

34

WASHER

9299R-08200-00

Unavailable

35

LOCKER, UNDER 2

F1B-U4742-01-00

Unavailable

36

.. PACKING,6

F0X-U266E-01-00

$15.89

37

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

38

. CAP, CASE

EW2-U5912-01-00

Unavailable

39

PACKING, CASE

EW2-U5913-01-00

Unavailable

40

RIVET, 1

F3J-U516R-00-00

$2.36

41

NUT, NYLON (6J8)

95780-08300-00

$10.55

42

PLATE A

GP7-U4953-10-00

$3.52

43

PLATE A

GP7-U4953-10-00

$3.52

44

SKI TOWS

F1B-U1629-00-00

$25.11

45

PIN

GH1-U3774-00-00

$19.38

46

WASHER, PLATE

90201-109U6-00

$3.29

47

WASHER

9299R-10200-00

$1.63

48

NUT, NYLON

9572R-10300-00

$3.37
