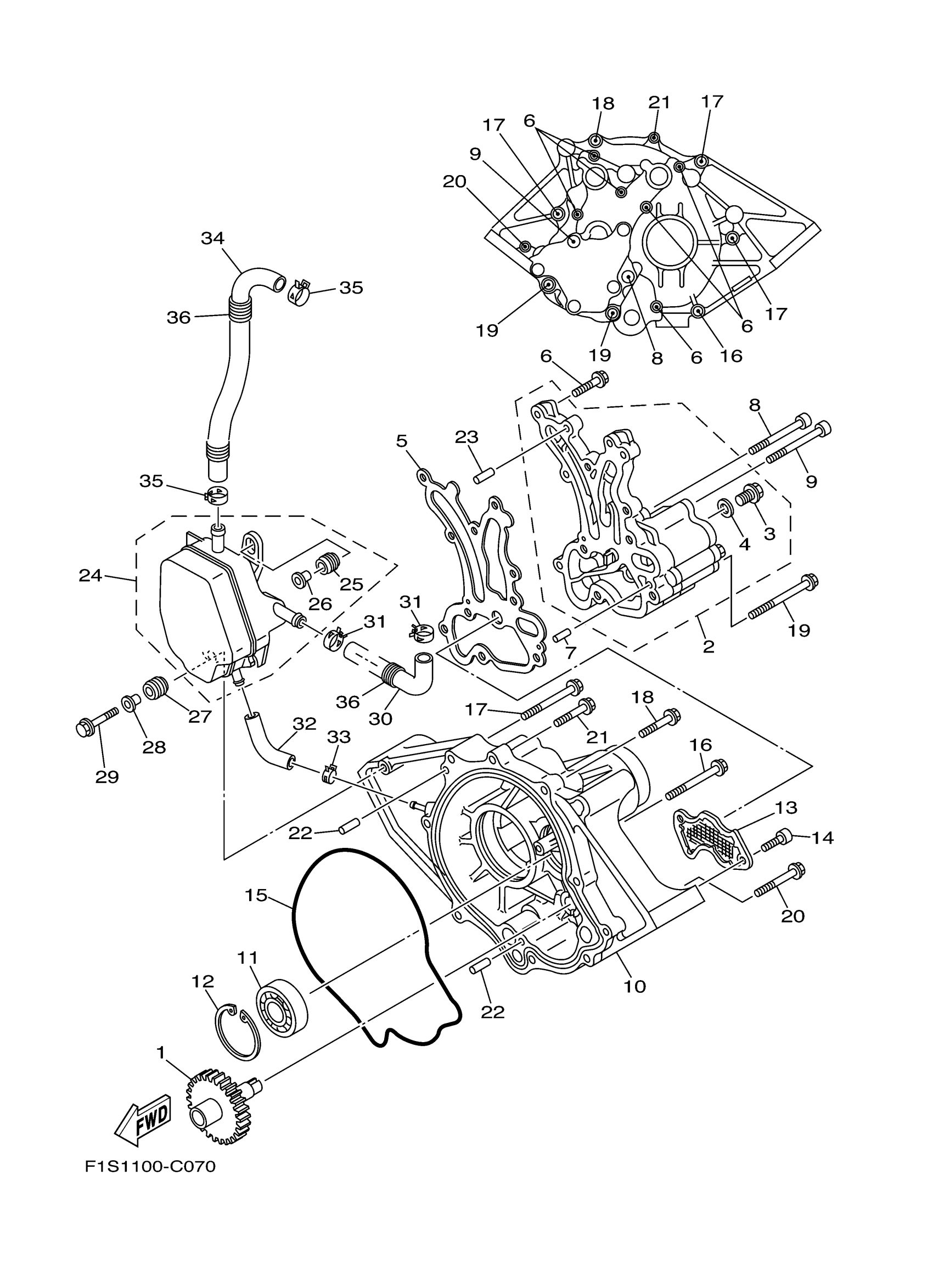

Yamaha FX1100F (WaveRunner FX HO) F1XD 2007 OIL PUMP Diagram
#
1
DRIVEN GEAR ASSY
6B6-13360-00-00
Unavailable
2
OIL PUMP ASSY
6B6-13300-01-00
Unavailable
3
BOLT, FLANGE
95817-08012-00
$5.49
4
GASKET
90430-08119-00
$6.62
5
GASKET
6B6-13563-01-00
Unavailable
6
BOLT, WITH WASHER(61B)
97513-06525-00
$1.49
7
PIN, DOWEL
93603-12221-00
Unavailable
8
BOLT, HEXAGON SOCKET HEAD
90110-08039-00
Unavailable
9
BOLT, HEXAGON SOCKET HEAD
90110-08040-00
Unavailable
10
COVER, PUMP GEAR WITH PIN
99999-03984-00
Unavailable
11
BEARING
93306-30441-00
$63.99
12
CIRCLIP(26H)
99009-52500-00
$12.49
13
STRAINER, OIL
6B6-13411-00-00
Unavailable
14
BOLT,SOCKET
91317-06016-00
$1.25
15
GASKET
6B6-13475-01-00
Unavailable
16
BOLT, WITH WASHER
90119-08045-00
Unavailable
17
BOLT, WITH WASHER
90119-08034-00
Unavailable
18
BOLT, WITH WASHER
90119-08043-00
Unavailable
19
BOLT, WITH WASHER
90119-08073-00
Unavailable
20
BOLT, WITH WASHER
97513-06555-00
Unavailable
21
BOLT, WITH WASHER (62X)
97513-06535-00
Unavailable
22
PIN, DOWEL
93608-16M16-00
Unavailable
23
PIN, DOWEL
93606-25M00-00
Unavailable
24
SEPERATOR, OIL
60E-11164-00-00
Unavailable
25
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
26
. COLLAR
90387-06119-00
Unavailable
27
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
28
. COLLAR
90387-06119-00
Unavailable
29
BOLT, WITH WASHER
90119-06294-00
Unavailable
30
PIPE, BREATHER 3
60E-11126-01-00
Unavailable
31
CLIP
90467-170A0-00
Unavailable
32
PIPE, BREATHER 4
6B6-11125-00-00
Unavailable
33
CLIP
90467-110A1-00
Unavailable
34
PIPE, BREATHER 1
60E-11166-01-00
Unavailable
35
CLIP
90467-170A0-00
Unavailable
36
TUBE (L260)
90447-19005-00
Unavailable
