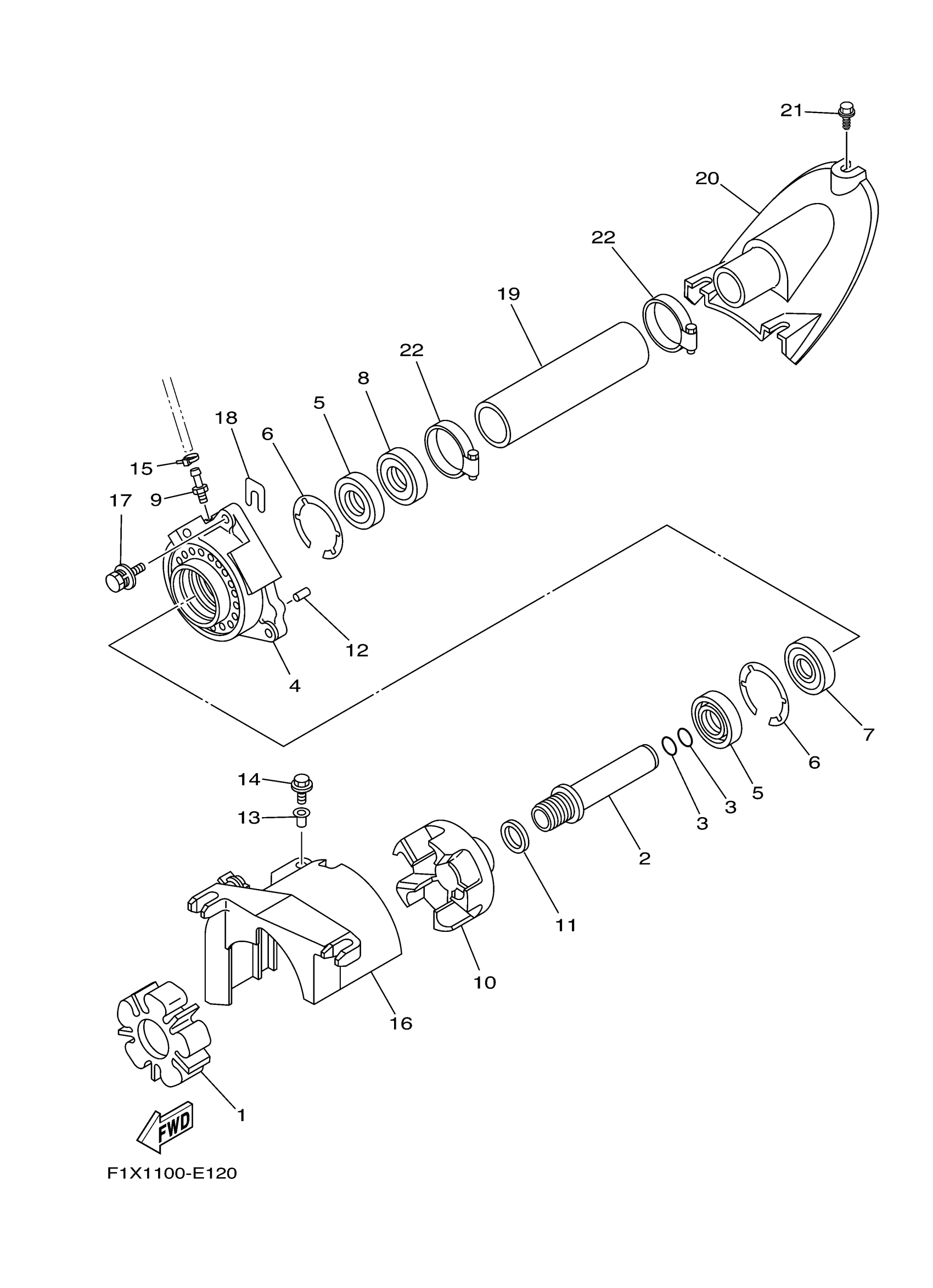

Yamaha FX1100F (WaveRunner FX HO) F1XD 2007 JET UNIT 2 Diagram
#
Description
Price
1
RUBBER SHAFT COUPL
6D3-4581J-01-00
Unavailable
2
SHAFT, COUPLER
60E-R1323-01-00
Unavailable
3
O-RING
93210-19001-00
Unavailable
4
HOUSING, BEARING
61X-G5332-00-00
Unavailable
6
CIRCLIP
93430-47M04-00
Unavailable
7
BEARING(62G)
93306-205U6-00
Unavailable
8
. OIL SEAL
93102-25009-00
Unavailable
9
NIPPLE, HOSE
61L-45378-00-00
Unavailable
10
FLANGE, COUPLING
66E-45813-10-94
Unavailable
11
WASHER, PLATE
90201-27008-00
Unavailable
13
COLLAR
90387-06M60-00
Unavailable
14
BOLT, WITH WASHER
90119-06892-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
COVER
60E-R1381-01-00
Unavailable
17
BOLT, WITH WASHER
90119-08907-00
Unavailable
18
SHIM (0.5)
GD0-U7249-00-05
Unavailable
19
PIPE, 1
F0D-U883B-01-00
Unavailable
19
PIPE, 1
F1W-U883B-00-00
Unavailable
20
JOINT, PIPE
F1B-U883E-00-00
Unavailable
20
JOINT, PIPE
F1W-U883E-00-00
Unavailable
21
SCREW
90149-069UA-00
Unavailable
22
BAND, HOSE 52
90601-152U3-00
Unavailable
