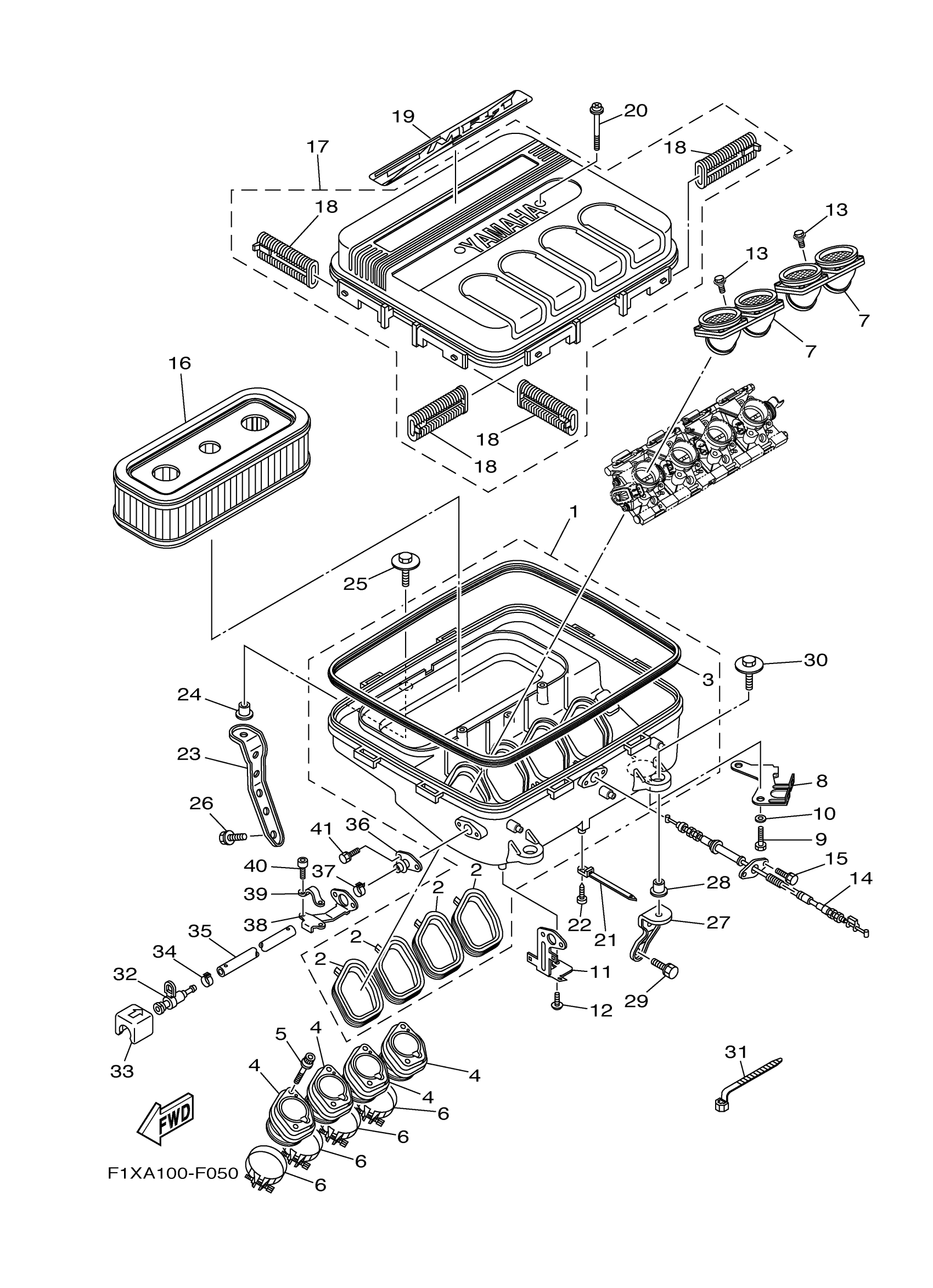

Yamaha FX1100F (WaveRunner FX HO) F1XD 2007 INTAKE Diagram

#

Description
Price

1

AIR CLEANER ASSY.

6B6-14410-02-00

$234.83

2

SEAL

6B6-14239-01-00

Unavailable

3

. SEAL

60E-14457-00-00

$24.23

4

JOINT, THROTTLE BODY 1

6B6-13795-00-00

$81.80

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

$4.09

6

HOSE CLAMP ASSY

90450-57002-00

$17.95

7

RIBBON, SUB ASSY

6B6-1440A-00-00

$340.89

8

BRACKET 3

6B6-14869-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

BRACKET

60E-14867-00-00

Unavailable

12

SCREW, ROUND TAPPING

90160-05003-00

$6.99

13

BOLT

90109-06053-00

$3.70

14

CABLE, THROTTLE 1

6B6-26311-12-00

$115.14

15

BOLT, WITH WASHER

90119-06078-00

$2.27

16

ELEMENT, AIR CLEANER

6B6-14451-01-00

$72.50

17

AIR CLEANER ASSY 2

6B6-14420-00-00

$134.83

18

. HOLDER

66V-13898-00-00

$8.51

19

GRAPHIC 2

6B6-2339F-00-00

$62.11

20

SCREW, WITH WASHER

90159-05006-00

Unavailable

21

CLAMP

90465-12M53-00

$5.00

22

SCREW, ROUND TAPPING

90160-05003-00

$6.99

23

STAY

60E-14413-00-00

$18.49

24

COLLAR

60E-14449-00-94

$15.00

25

BOLT, WITH WASHER

90119-08050-00

$4.44

26

BOLT, WITH WASHER

90119-08032-00

$4.09

27

STAY 2

60E-14414-00-00

$15.89

28

COLLAR

60E-14449-00-94

$15.00

29

BOLT, WITH WASHER

90119-08032-00

$4.09

30

BOLT, WITH WASHER

90119-08050-00

$4.44

31

CLAMP

90464-20005-00

$2.11

32

FUEL PIPE JOINT

60E-24300-01-00

$30.99

33

COVER

60E-24474-00-00

$3.64

34

HOSE CLAMP ASSY

90450-17M17-00

$7.40

35

HOSE

60E-14294-03-00

Unavailable

36

SEAL

60E-24329-00-00

$5.91

37

CLIP

90467-090A4-00

$1.28

38

STAY

60E-24364-00-00

Unavailable

39

CLAMP, FUEL PIPE 1

60E-24366-00-00

Unavailable

40

BOLT

91380-04008-00

$5.45

41

BOLT, WITH WASHER(61B)

97513-06516-00

Unavailable
