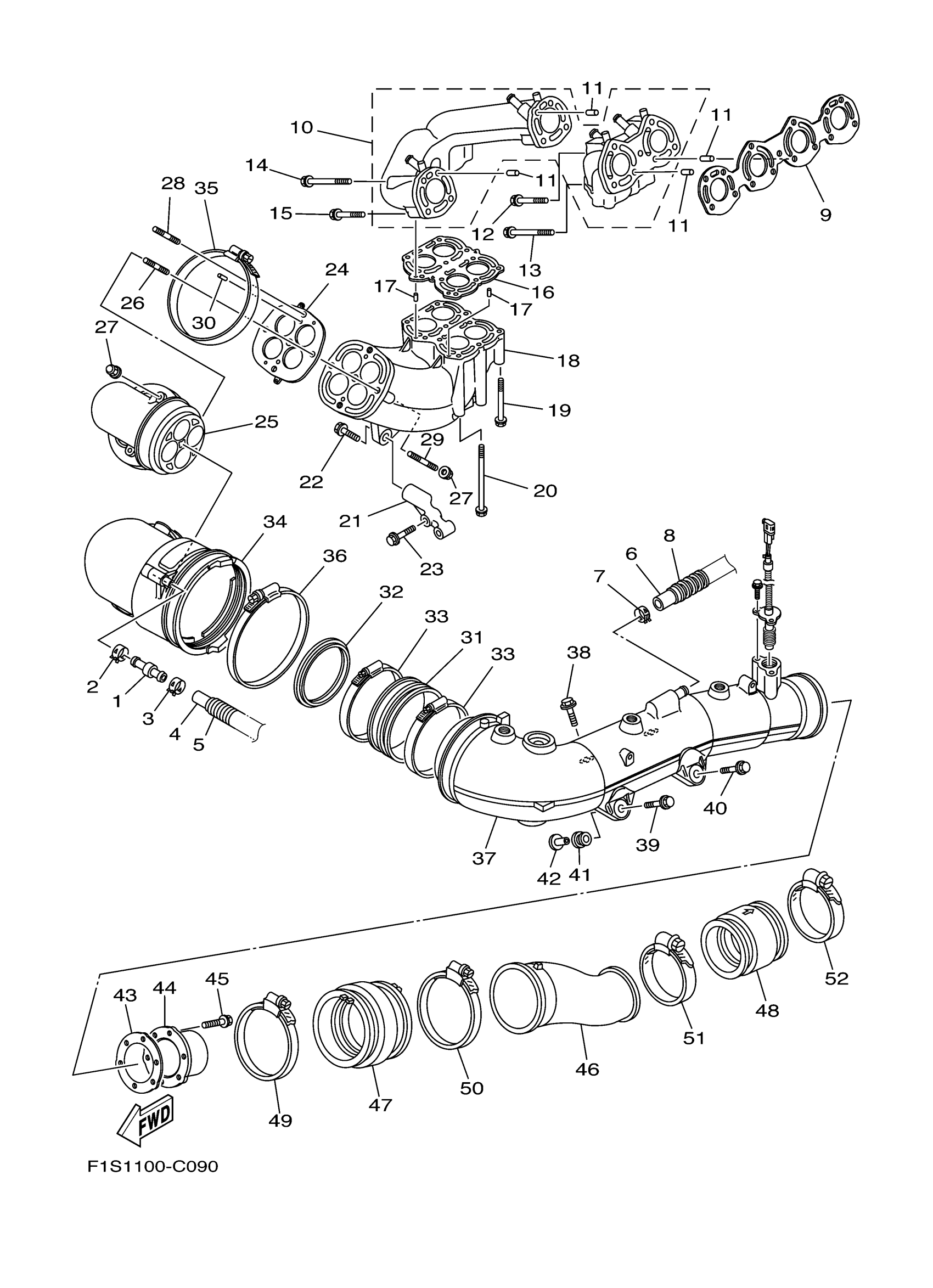

Yamaha FX1100F (WaveRunner FX HO) F1XD 2007 EXHAUST 1 Diagram

#

Description
Price

1

JOINT, HOSE 4

60E-12594-00-00

$4.09

2

CLIP

90467-120A0-00

$4.55

3

CLIP

90467-130A0-00

$2.73

4

HOSE

90445-14M03-00

Unavailable

5

HOSE(GK5)

90446-20M65-00

$6.02

6

HOSE (L1250)

90445-20002-00

$77.26

7

CLIP

90467-200A0-00

$7.40

8

TUBE (L1150)

90447-22002-00

$22.71

9

GASKET, EXHAUST PIPE

60E-14613-01-00

$56.87

10

EXHAUST PIPE ASSY 1

60E-14610-00-94

Unavailable

11

PIN, DOWEL

93608-16M16-00

$2.41

12

BOLT, WITH WASHER

90119-08029-00

$3.70

13

BOLT, WITH WASHER

90119-08034-00

$3.33

14

BOLT, WITH WASHER

90119-08029-00

$3.70

15

BOLT, WITH WASHER

90119-08M66-00

$3.36

16

GASKET, MUFFLER DAMPER 1

60E-14739-02-00

$56.87

17

PIN, DOWEL (614)

93606-12019-00

Unavailable

18

PIPE, EXHAUST 3

60E-14631-00-94

$778.77

19

BOLT, WITH WASHER

90119-08036-00

$4.09

20

BOLT, WITH WASHER

90119-08031-00

$5.00

21

STAY, MUFFLER 1

60E-14771-00-94

$63.62

22

BOLT, WITH WASHER

90119-10013-00

$4.81

23

BOLT, WITH WASHER

90119-08043-00

$4.55

24

GASKET, MUFFLER DAMPER 2

60E-14749-02-00

$56.05

25

RING, JOINT

60E-14712-02-94

$424.23

26

BOLT, STUD

90116-10016-00

$10.99

27

NUT

90179-10M35-00

Unavailable

28

BOLT, STUD

90116-10017-00

$11.35

29

BOLT, STUD

90116-10018-00

$15.49

30

PIN, DOWEL (614)

93606-12019-00

Unavailable

31

JOINT, EXHAUST 2

60E-14625-00-00

$43.92

32

. SEAL, EXHAUST

60E-14642-00-00

$40.22

33

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

34

JOINT, EXHAUST 1

60E-14615-00-00

$118.17

35

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

36

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

37

MUFFLER 2

60E-14721-00-94

Unavailable

38

BOLT, WITH WASHER

90119-10013-00

$4.81

39

BOLT, WITH WASHER

90119-10011-00

$5.91

40

BOLT, WITH WASHER

90119-10017-00

$6.36

41

GROMMET(62L)

90480-21M63-00

Unavailable

42

COLLAR

90387-11008-00

$19.68

43

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

44

PIPE, TAIL

60E-14784-00-94

$50.99

45

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

46

PIPE, OUTLET

6B6-14752-00-94

$143.92

47

PIPE 2

6BU-1475E-00-00

$34.83

48

PIPE 3

6B6-1475F-00-00

$55.99

49

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

50

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

51

CLAMP, HOSE

90460-90M11-00

$42.60

52

CLAMP, HOSE

90460-90M11-00

$42.60
