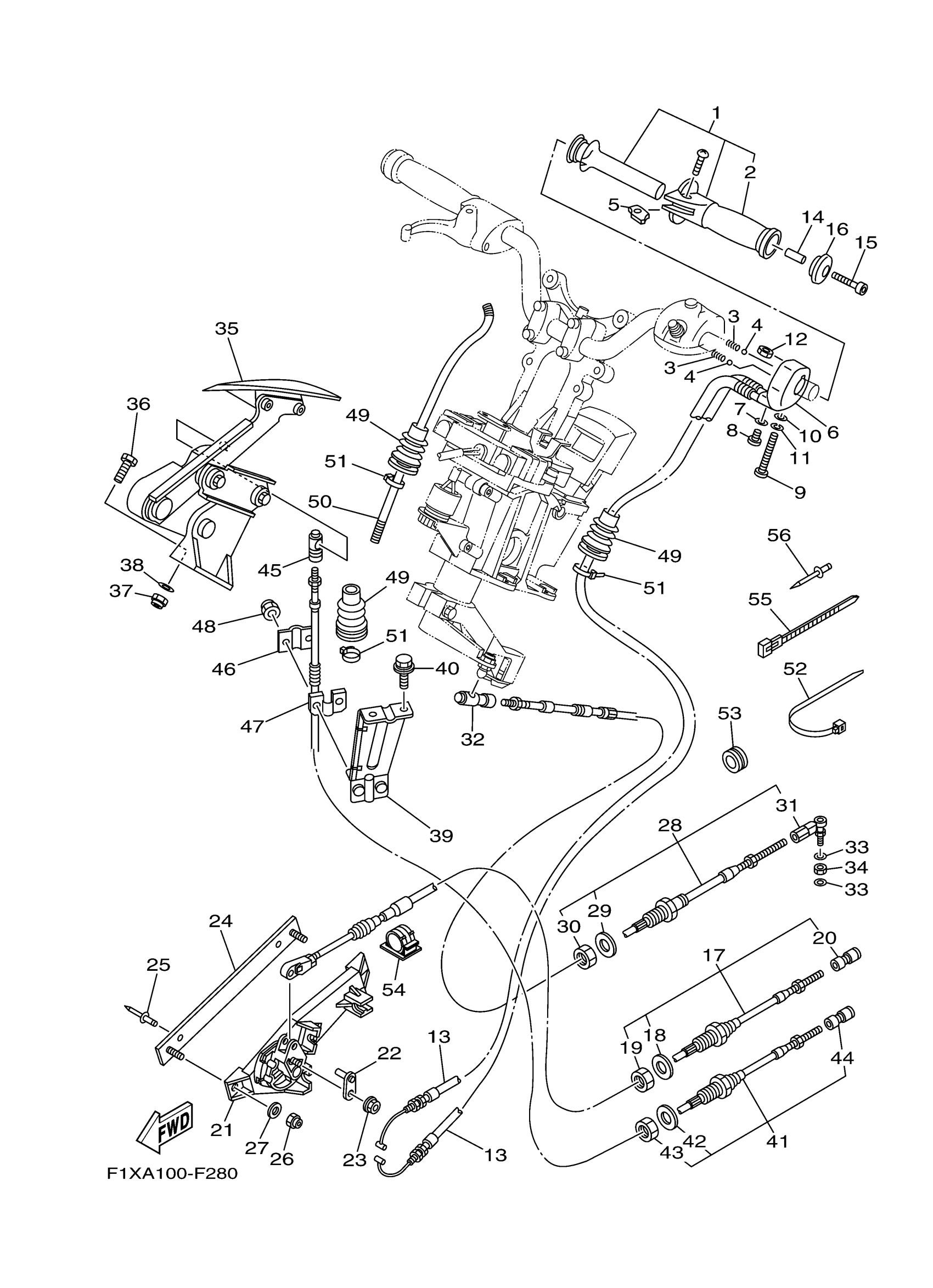

Yamaha FX1100F (WaveRunner FX HO) F1XD 2007 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

2

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

3

SPRING

GP7-U152P-00-00

$12.86

4

BALL

GP7-U152R-00-00

Unavailable

5

LEVER ASSY

GP7-U151M-00-00

Unavailable

6

HOUSING ASSY

GP7-U152M-00-00

Unavailable

7

WASHER, PLAIN (646)

92990-04600-00

$0.91

8

SCREW, BINDING (M01)

98980-04010-00

$5.02

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

WASHER

9299R-06100-00

Unavailable

12

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

13

CABLE, NOZZLE CONTROL 2

F1B-U153D-01-00

Unavailable

14

COLLAR

90387-05800-00

$3.86

15

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

16

GRIP, END

GP7-U155F-00-00

$2.88

17

CABLE,NOZZLE CONTR

F1S-6153E-01-00

Unavailable

18

. PACKING C

F1B-61438-00-00

$2.72

19

NUT

F1B-6151S-01-00

$14.31

20

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

21

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

22

PIN

F0D-U152C-10-00

Unavailable

23

NUT, NYLON

9572R-06300-00

$2.80

24

BASE, REMOCON.

F0X-U4958-00-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

$1.37

26

NUT, NYLON

9572R-06300-00

$2.80

27

WASHER

9299R-06200-00

$0.43

28

CABLE, STEERING

F1S-61481-02-00

Unavailable

29

. PACKING C

F1B-61438-00-00

$2.72

30

NUT

F1B-6151S-01-00

$14.31

31

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

32

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

33

WASHER, PLATE

90201-06906-00

$2.80

34

NUT

9538R-06700-00

$1.01

35

REMOCON. LEVER ASSY.

F1X-6134A-03-00

Unavailable

36

BOLT(JF7)

97080-06030-00

Unavailable

37

NUT, NYLON

9572R-06300-00

$2.80

38

WASHER, PLATE

90201-06020-00

Unavailable

39

BRACKET, STOPPER CABLE

F1X-61467-01-00

$84.83

40

BOLT, WITH WASHER

90119-08826-00

$4.62

41

CABLE,REVERSE

F1B-6149C-03-00

Unavailable

42

. PACKING C

F1B-61438-00-00

$2.72

43

NUT

F1B-6151S-01-00

$14.31

44

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

45

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

46

STOPPER, CABLE

GH1-61468-01-00

$8.32

47

HOLDER, STOPPER

GU5-6146K-10-00

$87.86

48

NUT, NYLON

9572R-06300-00

$2.80

49

GROMMET

F0D-6822E-00-00

$18.49

50

TUBE, 2

F0D-6773E-00-00

$16.99

51

BAND

90601-200U1-00

$2.77

52

CLAMP

90464-32801-00

$1.23

53

GROMMET

90480-279U1-00

$11.35

54

CLAMP COMP (EU0)

90600-91736-00

Unavailable

55

CLAMP

90464-32801-00

$1.23

56

RIVET, BLIND

90267-48802-00

$1.98
