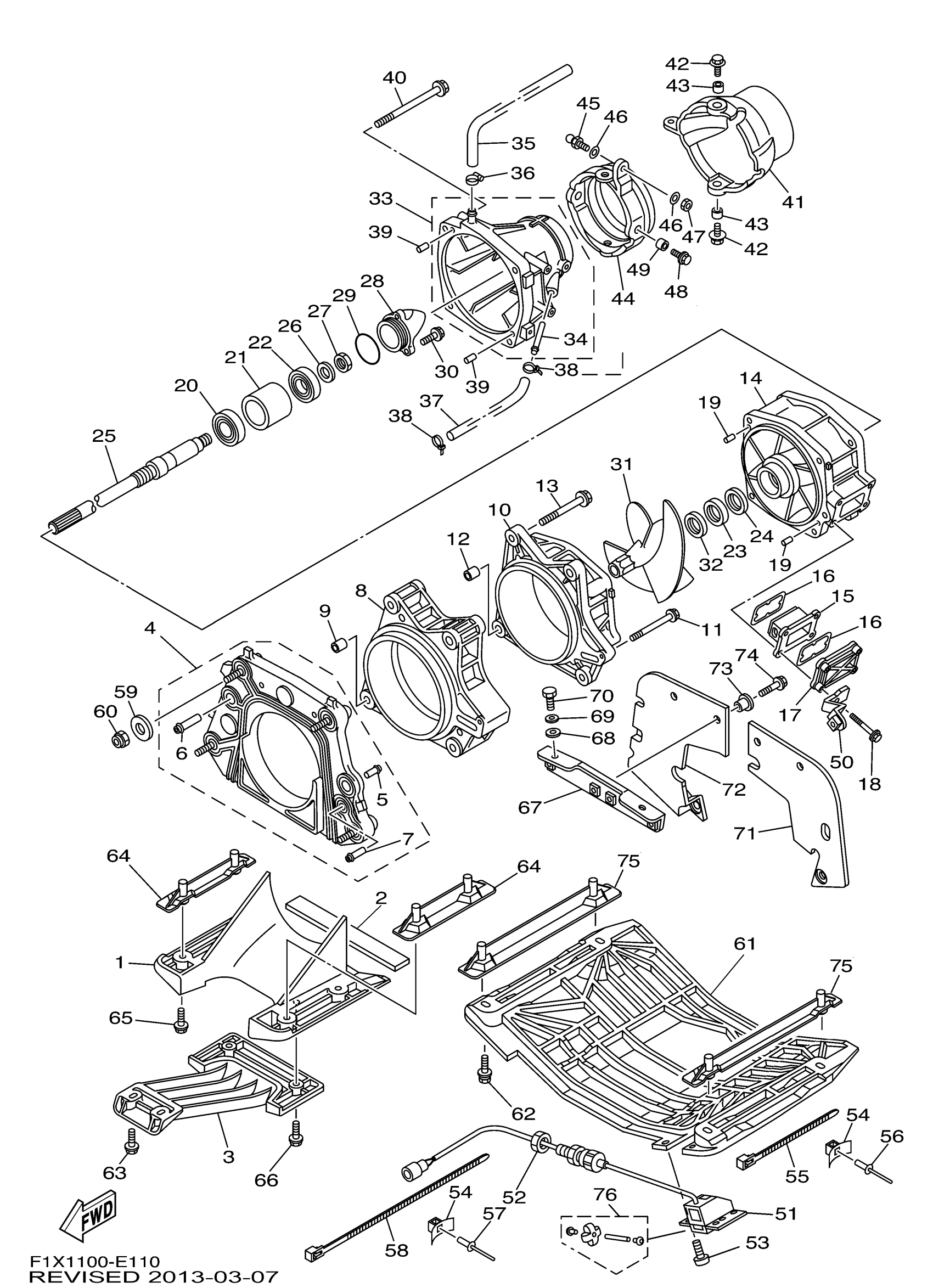

Yamaha FX1100E (FX High Output) F1X4 2006 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

60E-R1311-00-00

Unavailable

2

FELT, PACKING

66V-R1367-00-00

Unavailable

3

SCREEN, INTAKE

60E-R1333-00-00

Unavailable

4

PLATE, TRANSOM

60E-G5831-01-00

Unavailable

5

. NIPPLE

65A-R1129-00-00

Unavailable

6

. NIPPLE

66V-51129-10-00

$15.89

7

. NIPPLE

60E-51129-30-00

Unavailable

8

HOUSING, IMPELLER 2

60E-51317-00-00

Unavailable

9

PIN, DOWEL(4JT)

99590-14016-00

$3.41

10

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

11

BOLT, WITH WASHER

90119-06859-00

Unavailable

12

PIN, DOWEL(4JT)

99590-14016-00

$3.41

13

BOLT, WITH WASHER

90119-10813-00

Unavailable

14

DUCT, IMPELLER SET

99999-04430-00

Unavailable

15

FILTER

66V-46882-00-00

$5.91

16

. O-RING

66V-42414-00-00

$5.18

17

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

18

BOLT,WITH WASHER

90119-06898-00

$3.43

19

PIN, DOWEL (614)

93606-12019-00

Unavailable

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

SPACER 1

65V-45538-00-00

$29.88

22

BEARING

93306-304XB-00

$17.22

23

OIL SEAL

93101-28M66-00

Unavailable

24

OIL SEAL

93101-28002-00

$13.40

25

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

26

WASHER

9299R-16600-00

Unavailable

27

NUT

95317-16700-00

$4.55

28

CAP

6B6-51326-10-00

$40.89

29

. O-RING

93210-464A3-00

$2.95

30

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

31

IMPELLER

6B6-R1321-00-00

$120.43

32

SPACER

66V-R1348-10-00

$12.91

33

NOZZLE

6B6-51318-00-94

Unavailable

34

. NIPPLE,HOSE

63M-51334-00-00

$21.95

35

HOSE (L310)

90445-16M09-00

Unavailable

36

BAND, HOSE 18

90601-118UF-00

$2.07

37

HOSE (L330)

90445-14804-00

$1.52

38

CLAMP

90465-10098-00

$1.68

39

PIN, DOWEL (614)

93606-12019-00

Unavailable

40

BOLT, WITH WASHER

90119-10807-00

$5.44

41

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

42

BOLT, WITH WASHER

90119-08852-00

$3.79

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

RING,TRIM

60T-51190-00-94

$127.26

45

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

46

WASHER,PLATE

90201-068M4-00

Unavailable

47

NUT

9538R-06700-00

$1.01

48

BOLT, WITH WASHER

90119-08852-00

$3.79

49

COLLAR(6R7)

90387-08M06-00

Unavailable

50

BRACKET 2

6B6-51342-00-00

Unavailable

51

SENSOR SPEED

F1S-U8K31-03-00

$142.18

51

SENSOR SPEED

F1X-U8K31-02-00

$160.59

52

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

53

SCREW, ROUND HEAD

90150-05807-00

$0.79

54

CLAMP COMP (EU0)

90600-91736-00

Unavailable

55

CLAMP

90464-32801-00

$1.23

56

RIVET, BLIND

90267-48802-00

$1.98

57

RIVET, BLIND

90267-489U6-00

$1.37

58

CLAMP

90464-99801-00

$2.73

59

WASHER

F1S-U725E-01-00

$7.89

60

NUT, NYLON

9572R-10300-00

$3.37

61

PLATE 2

F1S-U273B-01-00

Unavailable

62

BOLT, WITH WASHER

90119-08829-00

$3.88

63

BOLT, WITH WASHER

90119-06896-00

$5.03

64

BRACKET 1

F1G-U8571-02-00

$15.07

65

BOLT, WITH WASHER

90119-08829-00

$3.88

66

BOLT,WITH WASHER

90119-06890-00

$1.07

67

BRACKET

F1B-67557-00-00

Unavailable

68

GASKET

90430-12002-00

$1.81

69

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

70

BOLT

90109-08043-00

$4.09

71

PLATE, RUBBER 1

F1S-U757E-02-00

Unavailable

72

PLATE, RUBBER 2

F1S-U757F-02-00

Unavailable

73

COLLAR

90387-06080-00

$7.27

74

BOLT, WITH WASHER

90119-06827-00

Unavailable

75

BRACKET 2

F1B-U8572-01-00

$15.14

76

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63
