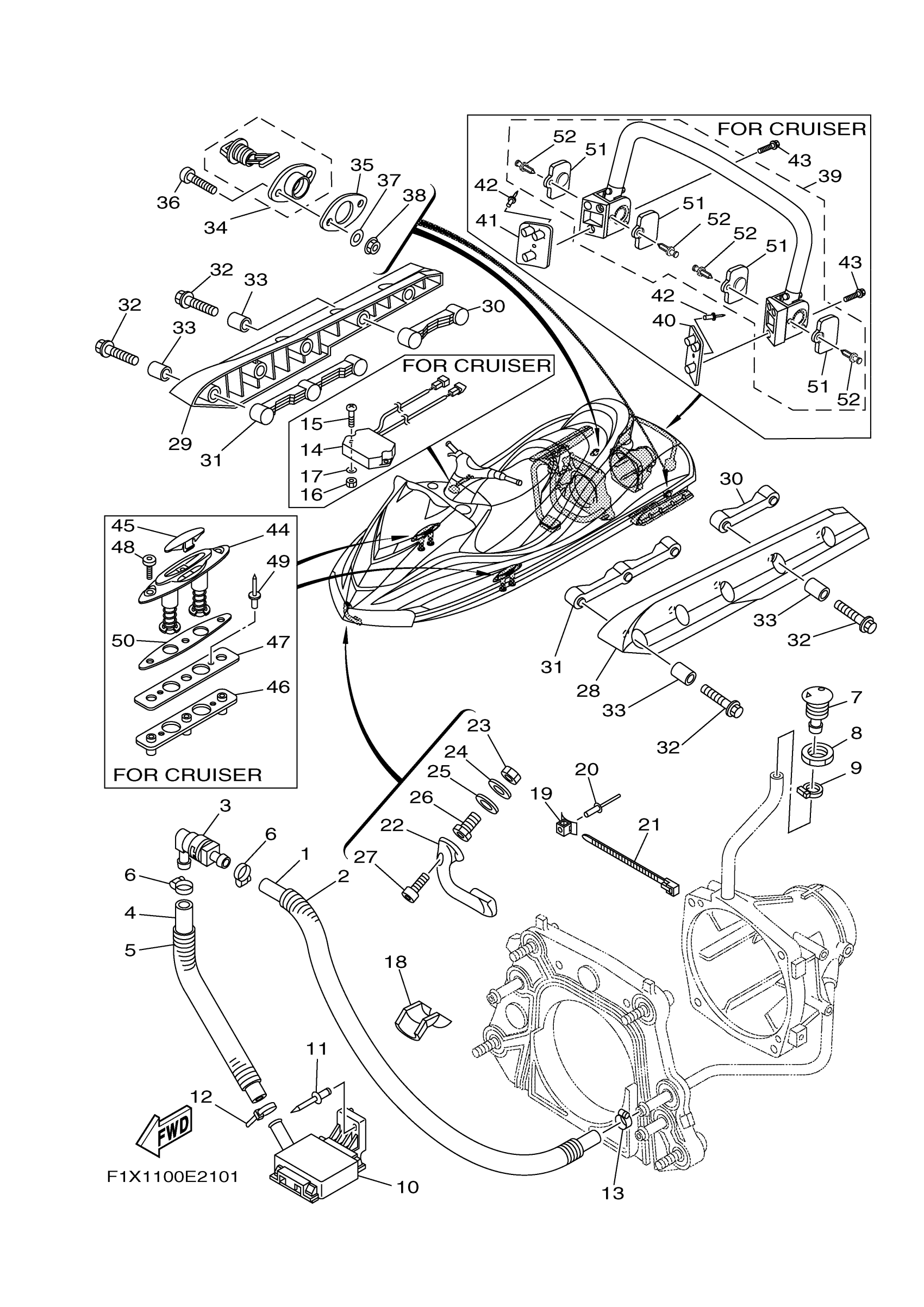

Yamaha FX1100E (FX High Output) F1X4 2006 HULL DECK Diagram
#
1
HOSE (L860)
90445-20804-00
Unavailable
2
HOSE
90446-27M73-00
$21.99
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
HOSE (L500)
90445-20800-00
Unavailable
5
HOSE(63M)
90446-27M55-00
$16.99
6
BAND, HOSE 18
90601-118UF-00
Unavailable
7
SPOUT
FN8-6269B-00-00
Unavailable
8
NUT
EU0-61652-00-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
11
RIVET, BLIND
90267-489U8-00
Unavailable
12
BAND
90601-200U1-00
Unavailable
13
CLIP
90467-200A0-00
Unavailable
14
SENSOR, COMPASS
F1X-U8K22-01-00
Unavailable
15
SCREW, PAN HEAD
9788R-05025-00
Unavailable
16
NUT, FLANGE
9572R-05300-00
Unavailable
17
WASHER
9299R-05200-00
Unavailable
18
TRIM, 1
F1S-U828H-01-00
Unavailable
19
CLAMP COMP (EU0)
90600-91736-00
Unavailable
20
RIVET, BLIND
90267-48802-00
Unavailable
21
CLAMP
90464-32801-00
Unavailable
22
BOW EYE 1
F1K-61624-00-00
Unavailable
23
NUT.HEX.(COARS)
99780-12600-00
Unavailable
24
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
25
WASHER
F0X-61637-00-00
Unavailable
26
NUT
F0X-61652-01-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
28
STABILIZER LH
F1S-U883N-01-00
Unavailable
29
STABILIZER RH
F1S-U883P-01-00
Unavailable
30
BRACKET,STABILIZER
F1F-U883T-02-00
Unavailable
31
BRACKET,STABILIZER
F1B-U883T-02-00
Unavailable
32
BOLT,WASHER BASED
90105-088F9-00
Unavailable
33
SPACER
F1K-U8169-00-00
Unavailable
34
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
35
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
36
SCREW, PAN HEAD
9788R-05025-00
Unavailable
37
WASHER
9299R-05200-00
Unavailable
38
NUT, FLANGE
9572R-05300-00
Unavailable
39
LADDER, STEP ASSY
F1X-U278A-00-00
Unavailable
40
BRACKET, LADDER LH
F1X-U278F-01-00
Unavailable
41
BRACKET, LADDER RH
F1X-U278G-01-00
Unavailable
42
RIVET, BLIND
90267-489U8-00
Unavailable
43
BOLT
90111-08803-00
Unavailable
44
CLEAT ASSY.
F4G-U163A-02-00
Unavailable
45
COVER
F1X-U826D-01-00
Unavailable
46
BRACKET
F1X-U826C-10-00
Unavailable
47
PACKING
F1X-U2157-00-00
Unavailable
48
BOLT
F1W-U2624-00-00
Unavailable
49
RIVET, BLIND
90267-489U6-00
Unavailable
50
PACKING
F4G-U2284-10-00
Unavailable
51
. INNER, COVER SIDE 1
F2C-U377H-00-00
Unavailable
52
. PIN
F2C-U1414-00-00
Unavailable
