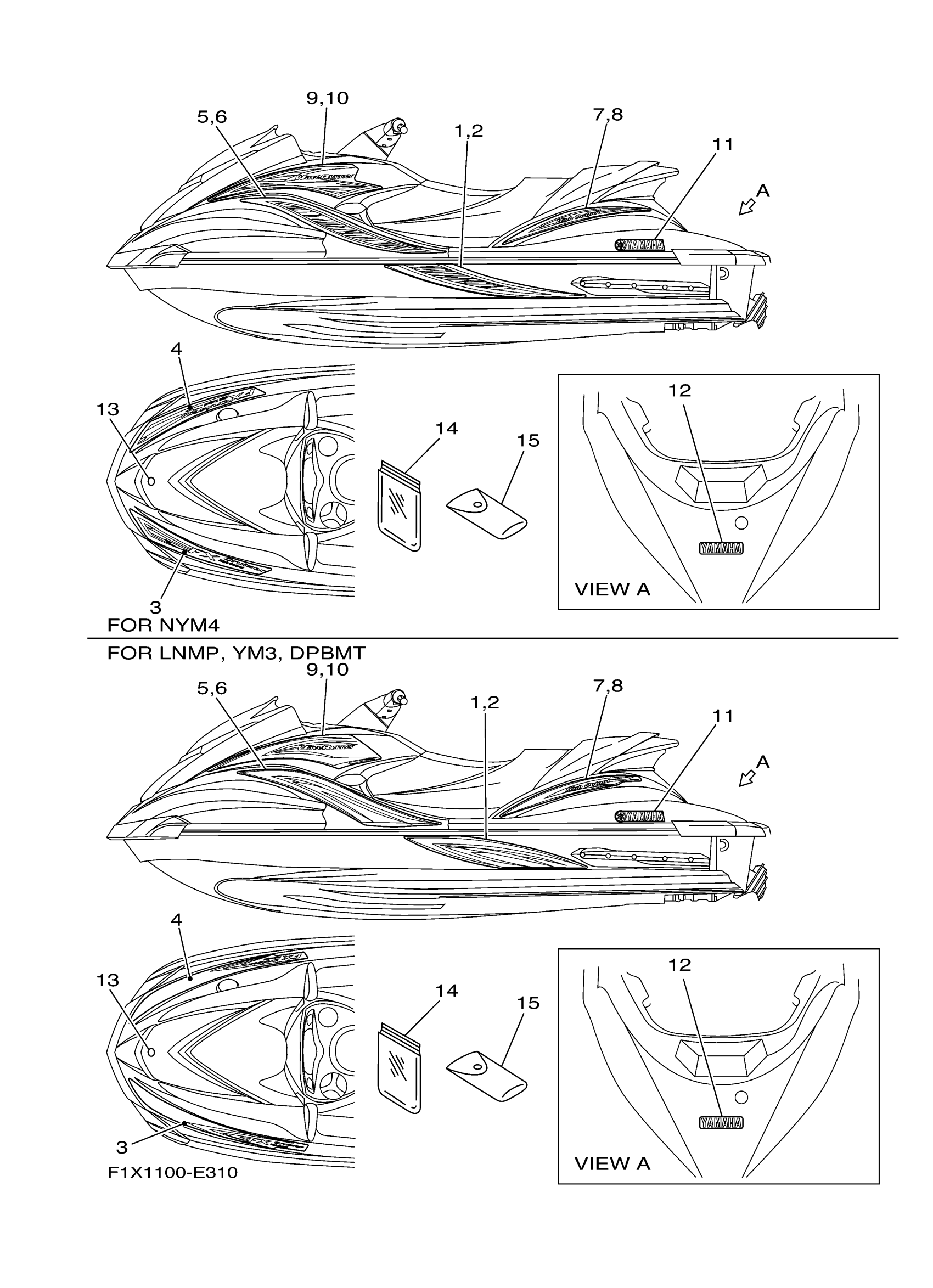

Yamaha FX1100E (FX High Output) F1X4 2006 GRAPHICS Diagram
#
1
GRAPHIC 1 (LH)
F1X-U417B-00-00
Unavailable
1
GRAPHIC 1 (LH)
F1X-U417B-10-00
Unavailable
1
GRAPHIC 1 (LH)
F1X-U417B-20-00
Unavailable
1
GRAPHIC 1 (LH)
F1X-U417B-30-00
Unavailable
2
GRAPHIC 2 (RH)
F1X-U417C-00-00
Unavailable
2
GRAPHIC 2 (RH)
F1X-U417C-10-00
Unavailable
2
GRAPHIC 2 (RH)
F1X-U417C-20-00
Unavailable
2
GRAPHIC 2 (RH)
F1X-U417C-30-00
Unavailable
3
GRAPHIC 3 (LH)
F1X-U417D-00-00
Unavailable
3
GRAPHIC 3 (LH)
F1X-U417D-10-00
Unavailable
3
GRAPHIC 3 (LH)
F1X-U417D-20-00
Unavailable
3
GRAPHIC 3 (LH)
F1X-U417D-30-00
Unavailable
4
GRAPHIC 4 (RH)
F1X-U417E-00-00
Unavailable
4
GRAPHIC 4 (RH)
F1X-U417E-10-00
Unavailable
4
GRAPHIC 4 (RH)
F1X-U417E-20-00
Unavailable
4
GRAPHIC 4 (RH)
F1X-U417E-30-00
Unavailable
5
GRAPHIC 5 (LH)
F1X-U417F-00-00
Unavailable
5
GRAPHIC 5 (LH)
F1X-U417F-10-00
Unavailable
5
GRAPHIC 5 (LH)
F1X-U417F-20-00
Unavailable
5
GRAPHIC 5 (LH)
F1X-U417F-30-00
Unavailable
6
GRAPHIC 6 (RH)
F1X-U417G-00-00
Unavailable
6
GRAPHIC 6 (RH)
F1X-U417G-10-00
Unavailable
6
GRAPHIC 6 (RH)
F1X-U417G-20-00
Unavailable
6
GRAPHIC 6 (RH)
F1X-U417G-30-00
Unavailable
7
GRAPHIC 7 (LH)
F1X-U417H-00-00
Unavailable
7
GRAPHIC 7 (LH)
F1X-U417H-10-00
Unavailable
7
GRAPHIC 7 (LH)
F1X-U417H-20-00
Unavailable
7
GRAPHIC 7 (LH)
F1X-U417H-30-00
Unavailable
8
GRAPHIC 8 (RH)
F1X-U417J-00-00
Unavailable
8
GRAPHIC 8 (RH)
F1X-U417J-10-00
Unavailable
8
GRAPHIC 8 (RH)
F1X-U417J-20-00
Unavailable
8
GRAPHIC 8 (RH)
F1X-U417J-30-00
Unavailable
9
GRAPHIC 9 (LH)
F1X-U417K-00-00
Unavailable
9
GRAPHIC 9 (LH)
F1X-U417K-10-00
Unavailable
9
GRAPHIC 9 (LH)
F1X-U417K-20-00
Unavailable
9
GRAPHIC 9 (LH)
F1X-U417K-30-00
Unavailable
10
GRAPHIC B (RH)
F1X-U417L-00-00
Unavailable
10
GRAPHIC B (RH)
F1X-U417L-10-00
Unavailable
10
GRAPHIC B (RH)
F1X-U417L-20-00
Unavailable
10
GRAPHIC B (RH)
F1X-U417L-30-00
Unavailable
11
EMBLEM, YAMAHA
F0V-U411C-10-00
Unavailable
11
EMBLEM, YAMAHA
F1G-U411C-30-00
Unavailable
11
EMBLEM, YAMAHA
F1X-U411C-10-00
Unavailable
12
EMBLEM, YAMAHA
F1B-U411C-02-00
Unavailable
12
MARK, YAMAHA A
F1G-U4114-30-00
Unavailable
12
EMBLEM, YAMAHA
F1X-U411C-20-00
Unavailable
13
EMBLEM, TUNING FORK
F1K-U411H-00-00
Unavailable
14
TOOL SET
F1B-65986-03-00
Unavailable
15
BAG, VINYL
EU0-65901-03-00
Unavailable
