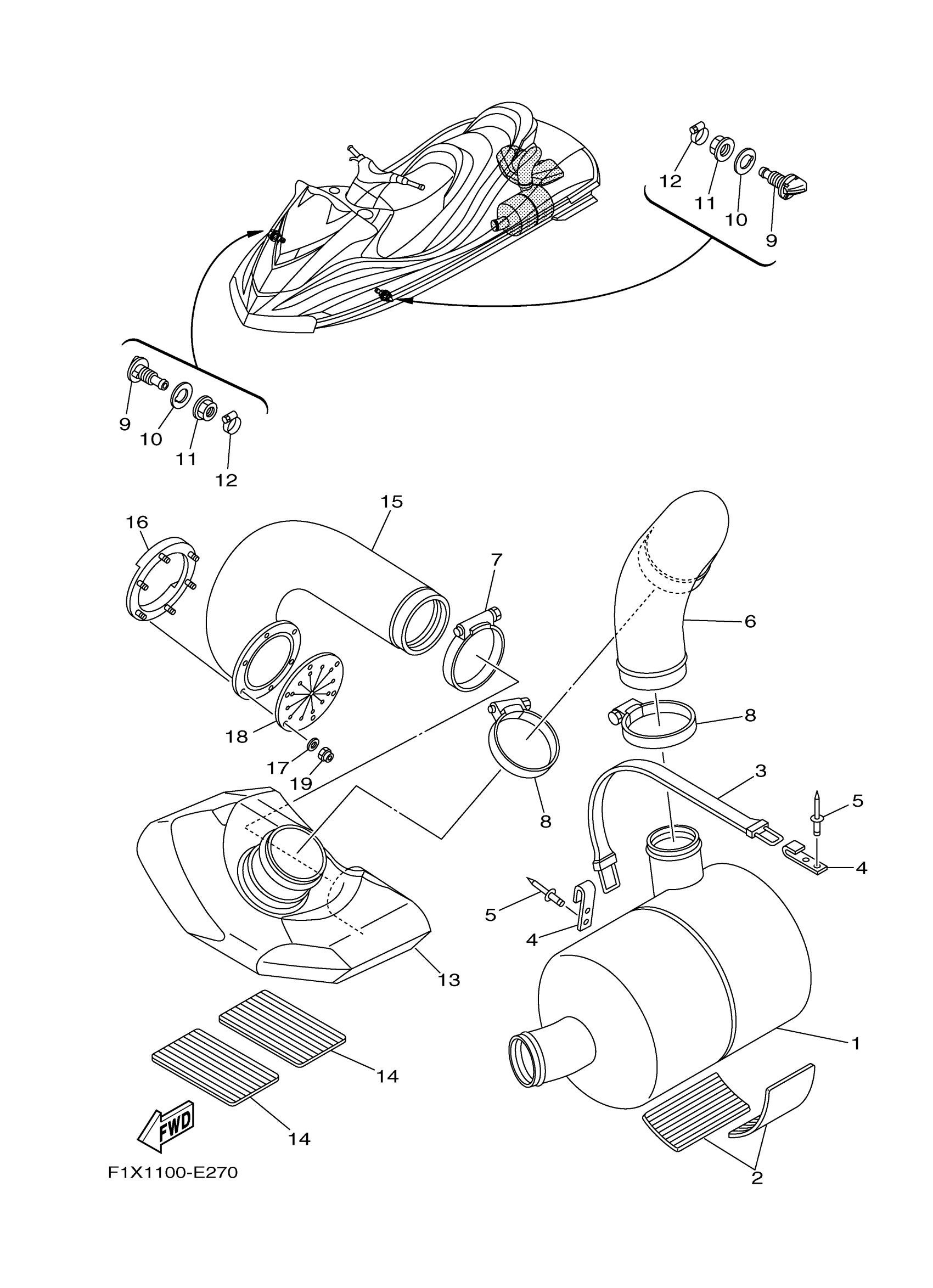

Yamaha FX1100E (FX High Output) F1X4 2006 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F1S-67550-00-00

$657.56

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOSE, EXHAUST

F1B-U7555-02-00

Unavailable

7

BAND, HOSE 95

90601-195UD-00

Unavailable

8

HOSE CLAMP ASSY

90450-99801-00

$3.79

9

PILOT, WATER

F1B-6753B-00-00

$19.68

10

GASKET

F1B-67564-00-00

$3.64

11

NUT

F0X-62733-00-00

$11.35

12

BAND, HOSE 18

90601-118UF-00

$2.07

13

TANK, WATER

F0X-U4261-13-00

Unavailable

14

PAD, BATTERY

F1S-U8221-00-00

$2.75

15

HOSE,EXHAUST 3

F1B-U758D-03-00

$75.74

16

PLATE

F1S-U757B-01-00

$22.97

17

WASHER

9299R-06200-00

$0.43

18

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

19

NUT, NYLON

9572R-06300-00

$2.80
