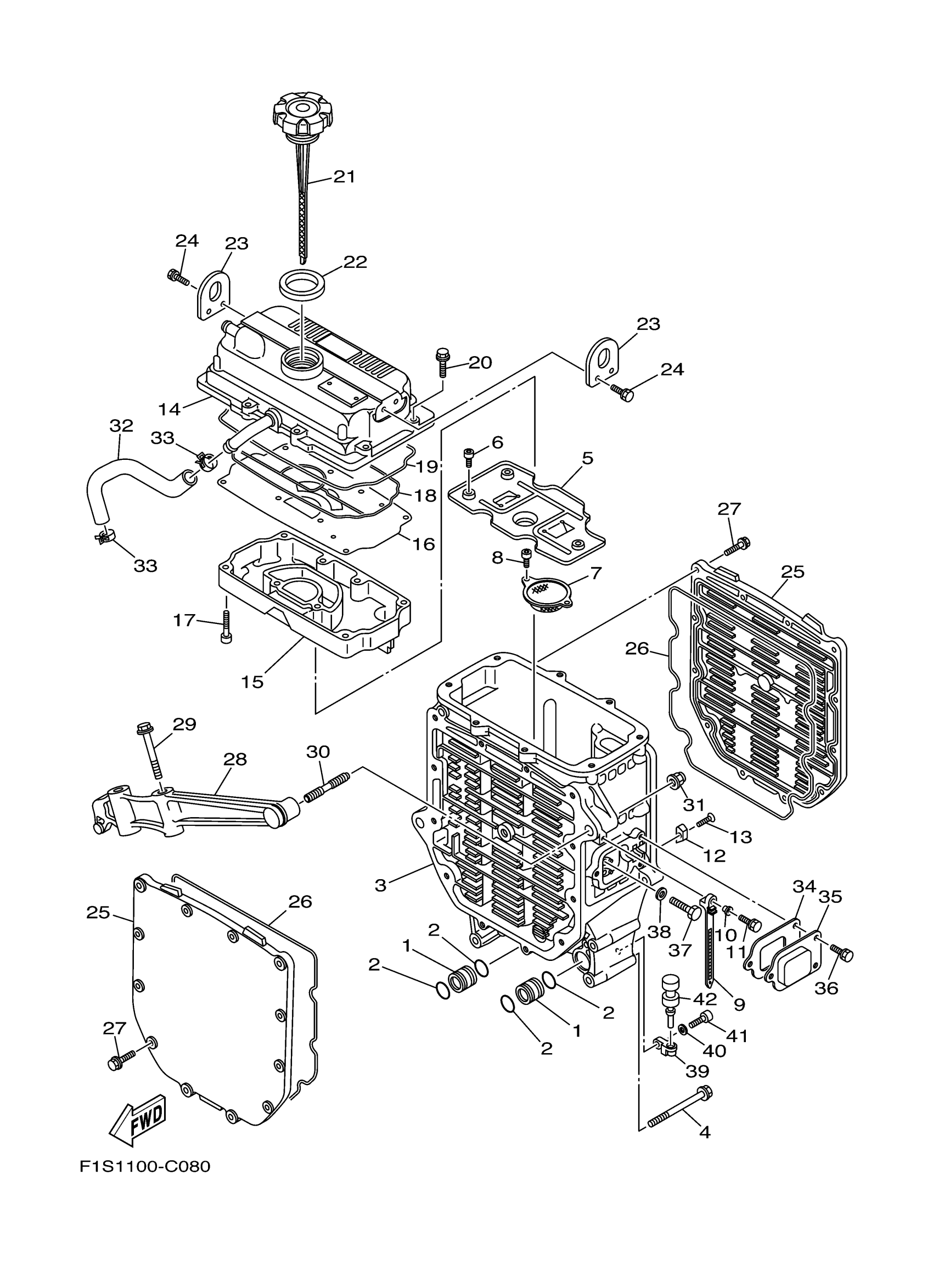

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 OIL COOLER Diagram
#
1
CONNECTOR
60E-13446-00-00
Unavailable
2
O-RING (1L9)
93210-18322-00
$5.60
3
CASE, OIL COOLER
6B6-13462-00-94
Unavailable
4
BOLT, WITH WASHER
90119-10020-00
Unavailable
5
PLATE, BAFFLE
6B6-13317-00-00
Unavailable
6
BOLT,SOCKET
91317-05014-00
$8.49
7
STRAINER 2
60E-13421-00-00
Unavailable
8
BOLT,SOCKET
91317-06014-00
$9.49
9
CLAMP
90465-12M53-00
Unavailable
10
COLLAR
90387-06M05-00
Unavailable
11
BOLT, HEXAGON W/W DEEP RECESS
97E95-06520-00
Unavailable
12
ANODE
6E5-11325-00-00
Unavailable
13
SCREW, FLAT HEAD(GA5)
98780-04014-00
$3.29
14
COVER, OIL COOLER
60E-13463-10-94
Unavailable
15
PLATE, BREATHER
6B6-11165-00-00
Unavailable
16
PLATE, BREATHER 2
6B6-11145-00-00
Unavailable
17
BOLT,SOCKET
91317-05035-00
Unavailable
18
GASKET
60E-13477-00-00
Unavailable
19
GASKET
60E-13475-00-00
Unavailable
20
BOLT, FLANGE
90105-06036-00
Unavailable
21
PLUG, OIL LEVEL
6BU-15362-A0-00
Unavailable
22
O-RING
60E-13473-00-00
Unavailable
23
HANGER, ENGINE
6B6-11119-00-00
Unavailable
24
BOLT, WITH WASHER
90119-06023-00
Unavailable
25
COVER, OIL COOLER
6D3-13443-00-94
Unavailable
26
GASKET
60E-13476-10-00
Unavailable
27
BOLT (689)
90105-06M07-00
Unavailable
28
STAY
6B6-13151-00-94
Unavailable
29
BOLT, WITH WASHER
90119-10M23-00
Unavailable
30
BOLT, STUD
90116-10016-00
Unavailable
31
NUT, CAP
90176-10001-00
Unavailable
32
PIPE, BREATHER 2
6B6-11167-00-00
Unavailable
33
CLIP
90467-170A0-00
Unavailable
34
GASKET
60E-13567-00-00
Unavailable
35
COVER 2
60E-13882-00-00
Unavailable
36
BOLT, WITH WASHER
97580-06516-00
Unavailable
37
BOLT (661)
97013-06012-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
Unavailable
39
BRACKET 1
60E-51341-00-94
Unavailable
40
WASHER, PLAIN (646)
92990-06600-00
Unavailable
41
. BOLT
91380-06020-00
Unavailable
42
GROMMET(6R7)
90480-06M46-00
Unavailable
