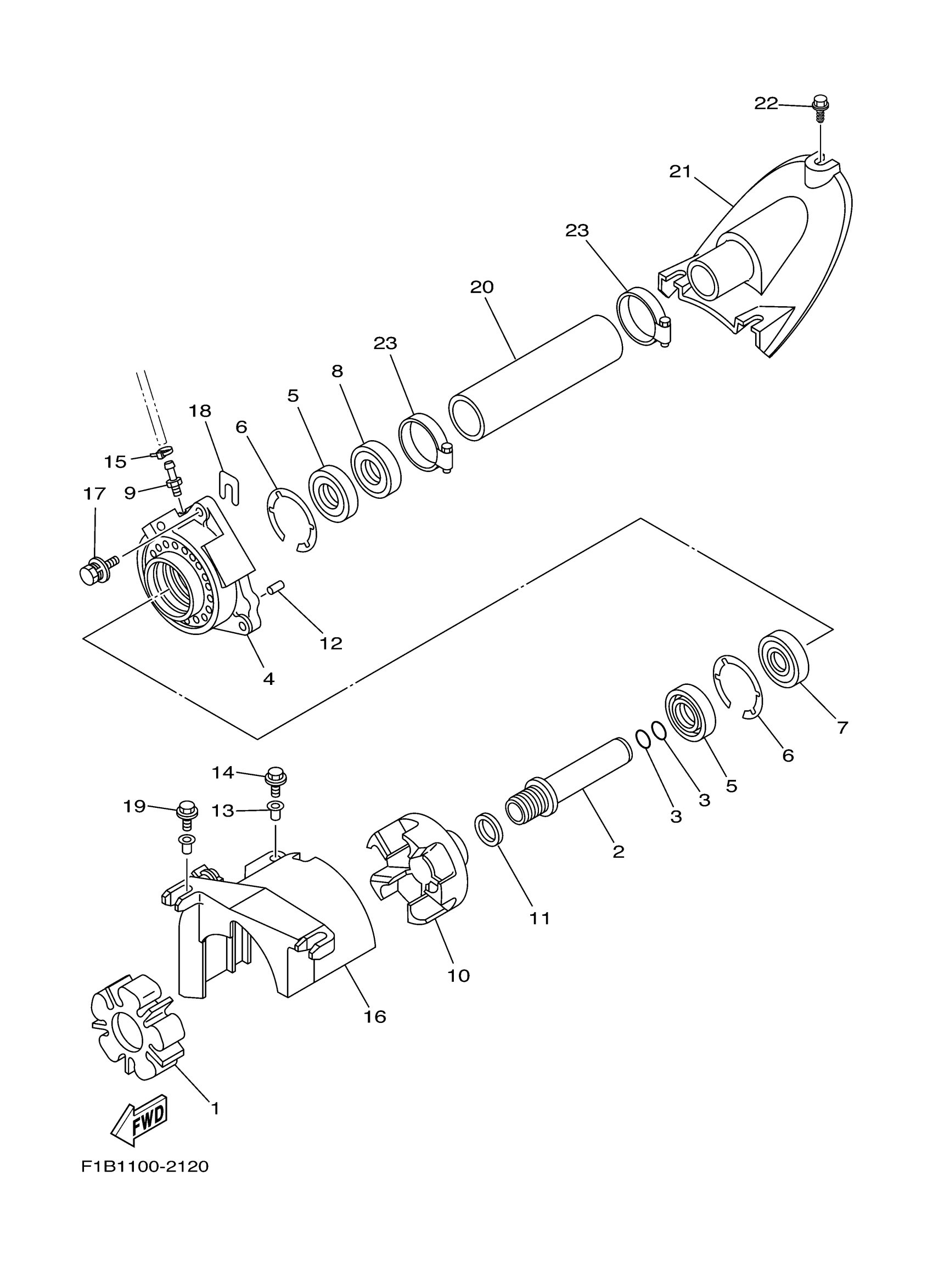

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPLING

66E-4581J-00-00

Unavailable

2

SHAFT, COUPLER

60E-R1323-01-00

Unavailable

3

O-RING

93210-19001-00

Unavailable

4

HOUSING, BEARING

61X-G5332-00-00

Unavailable

5

OIL SEAL(62T)

93101-25M55-00

$30.99

6

CIRCLIP

93430-47M04-00

Unavailable

7

BEARING(62G)

93306-205U6-00

Unavailable

8

. OIL SEAL

93102-25009-00

Unavailable

9

NIPPLE, HOSE

61L-45378-00-00

Unavailable

10

FLANGE, COUPLING

66E-45813-10-94

Unavailable

11

WASHER, PLATE

90201-27008-00

Unavailable

12

PIN, DOWEL (614)

93606-12019-00

$4.24

13

COLLAR

90387-06M60-00

Unavailable

14

BOLT, WITH WASHER

90119-06892-00

Unavailable

15

CLAMP

90465-10098-00

Unavailable

16

COVER

60E-R1381-01-00

Unavailable

17

BOLT, WITH WASHER

90119-08907-00

Unavailable

18

SHIM (0.5)

GD0-U7249-00-05

Unavailable

19

BOLT, WITH WASHER

90119-06892-00

Unavailable

20

PIPE, 1

F0D-U883B-01-00

Unavailable

21

JOINT, PIPE

F1B-U883E-00-00

Unavailable

22

SCREW

90149-069UA-00

Unavailable

23

BAND, HOSE 52

90601-152U3-00

Unavailable
