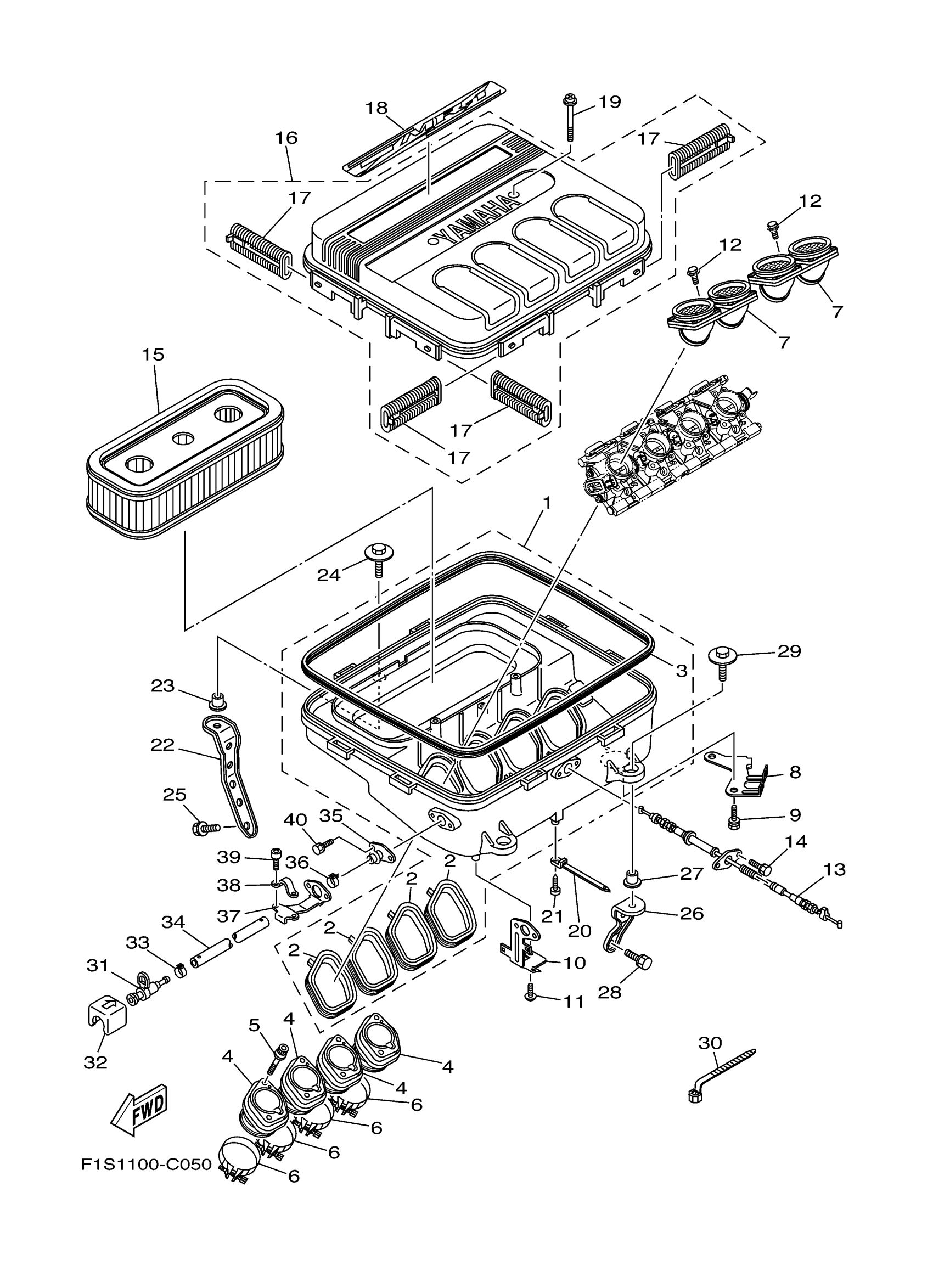

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 INTAKE Diagram

#

Description
Price

1

AIR CLEANER ASSY.

6B6-14410-02-00

$227.93

2

SEAL

6B6-14239-01-00

Unavailable

3

. SEAL

60E-14457-00-00

$23.51

4

JOINT, THROTTLE BODY 1

6B6-13795-00-00

$79.40

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

$3.97

6

HOSE CLAMP ASSY

90450-57002-00

$17.95

7

RIBBON, SUB ASSY

6B6-1440A-00-00

$330.87

8

BRACKET 3

6B6-14869-00-00

Unavailable

9

BOLT, WITH WASHER(61B)

97513-06516-00

$1.55

10

BRACKET

60E-14867-00-00

Unavailable

11

SCREW, ROUND TAPPING

90160-05003-00

$5.31

12

BOLT

90109-06053-00

$3.79

13

CABLE, THROTTLE 1

6B6-26311-02-00

Unavailable

14

BOLT, WITH WASHER

90119-06078-00

$2.21

15

ELEMENT, AIR CLEANER

6B6-14451-01-00

$169.28

16

AIR CLEANER ASSY 2

6B6-14420-00-00

$130.87

17

. HOLDER

66V-13898-00-00

$8.73

18

GRAPHIC 2

6B6-2339F-00-00

$60.28

19

SCREW, WITH WASHER

90159-05006-00

Unavailable

20

CLAMP

90465-12M53-00

$4.85

21

SCREW, ROUND TAPPING

90160-05003-00

$5.31

22

STAY

60E-14413-00-00

$18.37

23

COLLAR

60E-14449-00-94

$13.24

24

BOLT, WITH WASHER

90119-08050-00

$5.29

25

BOLT, WITH WASHER

90119-08032-00

$3.97

26

STAY 2

60E-14414-00-00

$15.43

27

COLLAR

60E-14449-00-94

$13.24

28

BOLT, WITH WASHER

90119-08050-00

$5.29

29

BOLT, WITH WASHER

90119-08032-00

$3.97

30

CLAMP

90464-20005-00

$2.13

31

FUEL PIPE JOINT

60E-24300-01-00

$25.02

32

COVER

60E-24474-00-00

$3.53

33

HOSE CLAMP ASSY

90450-17M17-00

$7.59

34

HOSE

60E-14294-03-00

Unavailable

35

SEAL

60E-24329-00-00

$5.74

36

CLIP

90467-09120-00

Unavailable

37

STAY

60E-24364-00-00

Unavailable

38

CLAMP, FUEL PIPE 1

60E-24366-00-00

Unavailable

39

BOLT

91380-04008-00

$5.29

40

BOLT, WITH WASHER(61B)

97513-06516-00

$1.55
