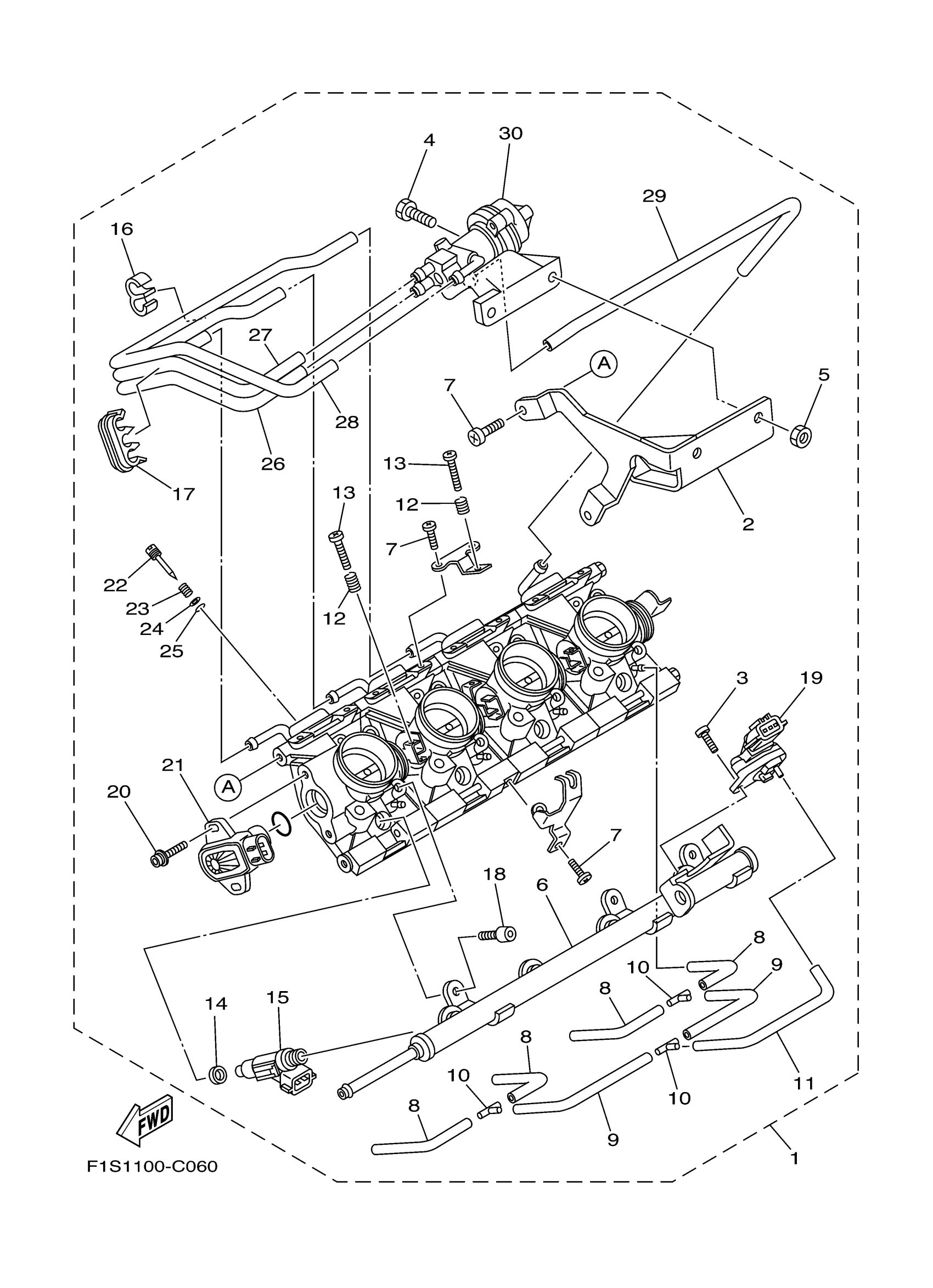

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 INJECTION PUMP Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6B6-13750-01-00

Unavailable

2

. BRACKET 1

6B6-14291-00-00

$286.35

3

. SCREW 3

68V-81147-00-00

$6.29

4

. BOLT

63P-14446-00-00

$9.27

5

. NUT

6B6-14358-00-00

$4.55

6

. DELIVERY PIPE

60E-12880-10-00

$595.44

7

. SCREW

60E-14216-00-00

Unavailable

8

HOSE

5FL-14987-10-00

Unavailable

9

PIPE

5FL-14349-10-00

$6.85

10

NIPPLE

4N0-14251-00-00

Unavailable

11

PIPE

5PW-14396-00-00

$8.67

12

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

13

. SCREW, THROTTLE

69J-14321-00-00

$13.56

14

GASKET

90430-09002-00

$9.00

15

. INJECTOR

60E-13761-10-00

$210.59

16

. CLIP

6B6-12486-00-00

$7.27

17

. CLIP 2

6B6-12487-00-00

$17.99

18

. BOLT

6B6-14446-00-00

$3.64

19

. SENSOR ASSY

6B6-83688-00-00

$283.32

20

. SCREW 1

68V-81145-01-00

$6.14

21

. THROTTLE SENSOR ASSY

60E-85885-10-00

$195.44

22

. SCREW, PILOT

4BH-14923-00-00

$5.45

23

. SPRING, AIR ADJUSTING

4BH-14134-00-00

$2.56

24

WASHER

3L5-14962-00-00

Unavailable

25

O-RING, PILOT SCREW

3H1-14147-00-00

Unavailable

26

. HOSE 1

6B6-13545-00-00

$87.86

27

. HOSE 2

6B6-13546-00-00

$71.20

28

. HOSE 3

6B6-13547-00-00

Unavailable

29

. HOSE, AIR 4

6B6-13548-00-00

Unavailable

30

. BY-PASS VALVE MOTOR ASSY

6B6-13660-00-00

Unavailable
