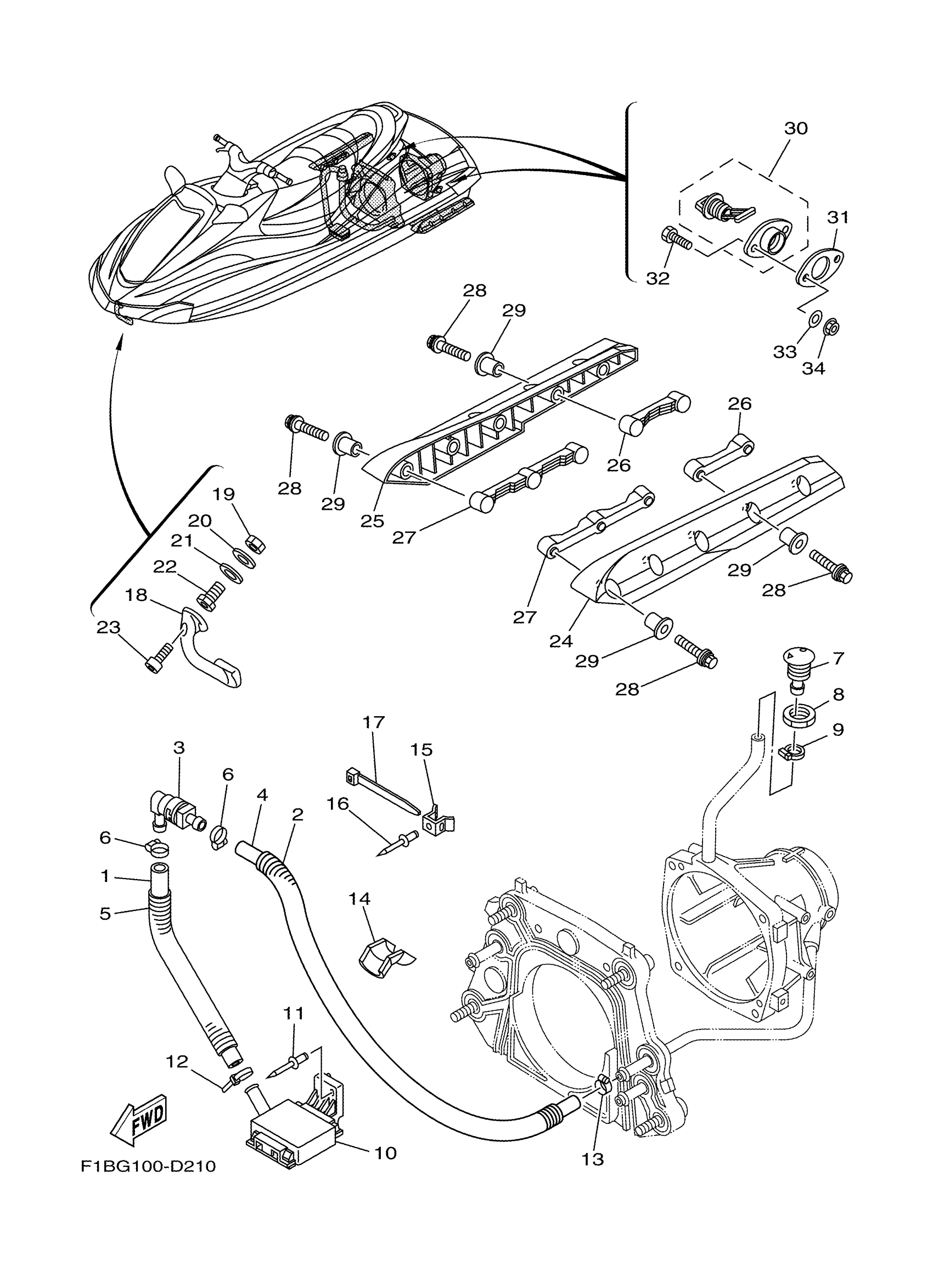

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 HULL DECK Diagram
#
1
HOSE (L860)
90445-20804-00
Unavailable
2
HOSE
90446-27M73-00
$21.99
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
HOSE (L500)
90445-20800-00
Unavailable
5
HOSE(63M)
90446-27M55-00
$16.99
6
BAND, HOSE 18
90601-118UF-00
Unavailable
7
SPOUT
FN8-6269B-00-00
Unavailable
8
NUT
EU0-61652-00-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
11
RIVET, BLIND
90267-489U8-00
Unavailable
12
BAND
90601-200U1-00
Unavailable
13
CLIP
90467-200A0-00
Unavailable
14
TRIM, 1
F1S-U828H-01-00
Unavailable
15
CLAMP COMP (EU0)
90600-91736-00
$8.49
16
RIVET, BLIND
90267-48802-00
Unavailable
17
CLAMP
90464-32801-00
Unavailable
18
BOWEYE 1
F0X-61624-00-00
Unavailable
19
NUT.HEX.(COARS)
99780-12600-00
Unavailable
20
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
21
WASHER
F0X-61637-00-00
Unavailable
22
NUT
F0X-61652-01-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
24
STABILIZER LH
F1S-U883N-01-00
Unavailable
25
STABILIZER RH
F1S-U883P-01-00
Unavailable
26
BRACKET,STABILIZER
F1F-U883T-02-00
Unavailable
27
BRACKET,STABILIZER
F1B-U883T-02-00
Unavailable
28
BOLT, WITH WASHER
90119-08844-00
Unavailable
29
SPACER
F1K-U8169-00-00
Unavailable
30
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
31
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
32
SCREW, PAN HEAD
9788R-05025-00
Unavailable
33
WASHER
9299R-05200-00
Unavailable
34
NUT, FLANGE
9572R-05300-00
Unavailable
