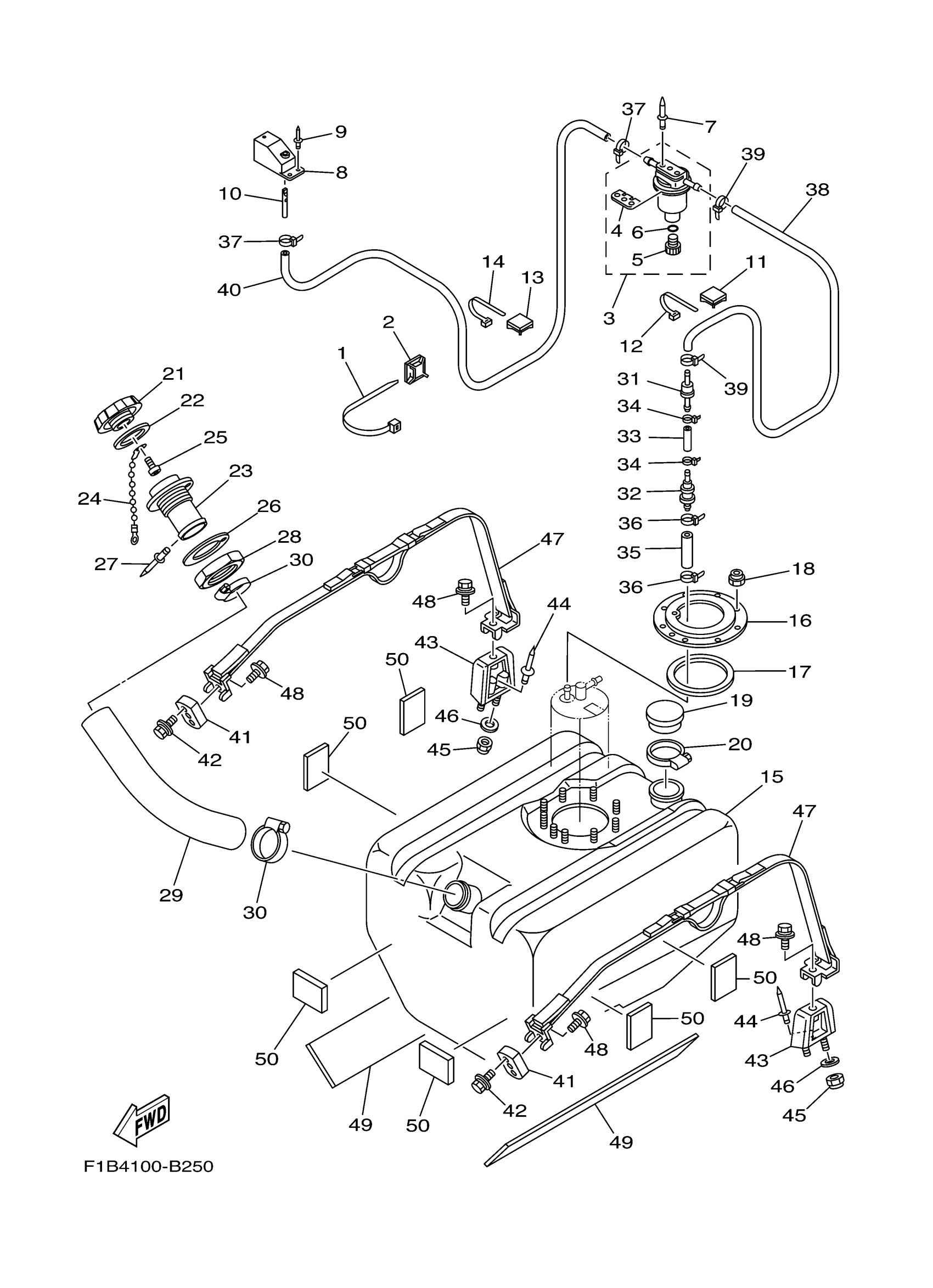

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 FUEL TANK Diagram

#

Description
Price

1

CLAMP

90464-99804-00

$4.17

2

BASE, CLAMP

90600-900U6-00

Unavailable

3

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

4

. PLATE, FILTER

EW2-62142-00-00

$44.99

5

. PLUG, DRAIN

70R-24543-00-00

$9.08

6

. O-RING

70R-24489-00-00

$5.00

7

RIVET, BLIND

90267-489U2-00

$1.43

8

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

9

RIVET, BLIND

90267-489U6-00

$1.37

10

PIPE, VENTILATION 1

EW2-62149-00-00

$7.27

11

BASE, CLAMP

90600-900U6-00

Unavailable

12

CLAMP(JN6)

90464-40825-00

$1.63

13

BASE, CLAMP

90600-900U6-00

Unavailable

14

CLAMP(JN6)

90464-40825-00

$1.63

15

TANK, FUEL

F1B-U7711-01-00

Unavailable

16

RING

F1B-U7773-00-00

$20.81

17

PACKING, SEAL

F1B-67747-00-00

$16.66

18

NUT, NYLON

9572R-06300-00

$2.80

19

COVER

FN8-6771K-00-00

$11.85

20

BAND, HOSE 62

90601-162U5-00

$6.17

21

CAP, FUEL FILLER

GP7-U7831-01-00

$25.11

21

CAP, FUEL FILLER

GP7-U7831-11-00

$34.30

22

PACKING

GP7-U7832-01-00

$5.35

23

SOCKET

GP7-U7833-00-00

$35.88

23

SOCKET

GP7-U7833-11-00

$10.75

24

CHAIN BALL

GP7-U7835-00-00

$4.51

25

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

26

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

27

RIVET, BLIND

90267-329UR-00

$1.15

28

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

29

HOSE

F1B-U7844-01-00

Unavailable

30

BAND, HOSE 55

90601-155U4-00

$5.87

31

. CHECK VALVE

F1B-67767-00-00

Unavailable

32

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

33

HOSE

90699-50100-00

$26.99

34

CLAMP

90465-10098-00

$1.68

35

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

36

CLAMP

90465-10098-00

$1.68

37

CLAMP

90465-10098-00

$1.68

38

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

39

CLAMP

90465-10098-00

$1.68

40

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

41

NUT, SPECIAL

F1B-U2873-00-00

Unavailable

42

BOLT, WITH WASHER

90119-08800-00

$4.09

43

BRKT, BAND

F1B-6774J-00-00

$156.05

44

RIVET, BLIND

90267-489UE-00

Unavailable

45

NUT, NYLON

9572R-06300-00

$2.80

46

WASHER

9299R-06200-00

$0.43

47

BELT, TANK 1

F1B-67743-03-00

Unavailable

48

BOLT, WITH WASHER

90119-08800-00

$4.09

49

MAT 1

F1B-U759B-00-00

Unavailable

50

MAT 2

F1B-U759C-00-00

Unavailable
