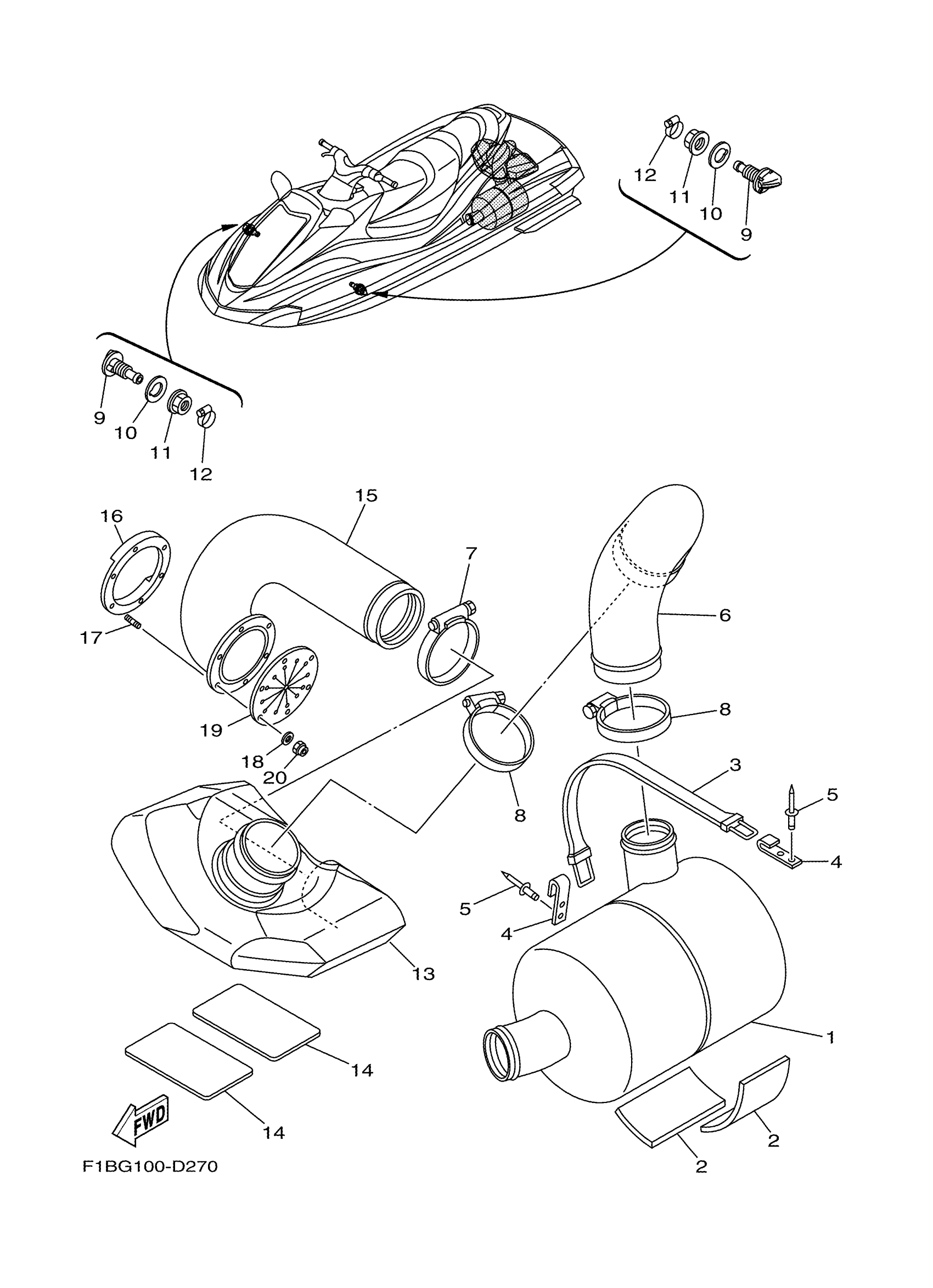

Yamaha FX1100D (WaveRunner FX High Output) F1S7 2005 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F1S-67550-00-00

Unavailable

2

MAT,WATER LOCK

F1B-U755J-01-00

Unavailable

3

BAND, FUEL TANK

EW2-67821-00-00

Unavailable

4

HOOK A

GA7-65772-00-00

Unavailable

5

RIVET (EU0)

90267-48938-00

Unavailable

6

HOSE, EXHAUST

F1B-U7555-02-00

Unavailable

7

BAND, HOSE 95

90601-195UD-00

Unavailable

8

HOSE CLAMP ASSY

90450-99801-00

Unavailable

9

PILOT, WATER

F1B-6753B-00-00

Unavailable

10

GASKET

F1B-67564-00-00

Unavailable

11

NUT

F0X-62733-00-00

Unavailable

12

BAND, HOSE 18

90601-118UF-00

Unavailable

13

TANK, WATER

F0X-U4261-13-00

Unavailable

14

PAD, BATTERY

F1S-U8221-00-00

Unavailable

15

HOSE,EXHAUST 3

F1B-U758D-03-00

Unavailable

16

PLATE

F1S-U757B-01-00

Unavailable

17

BOLT,STUD

90116-06822-00

Unavailable

18

WASHER

9299R-06200-00

Unavailable

19

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

20

NUT, NYLON

9572R-06300-00

Unavailable
