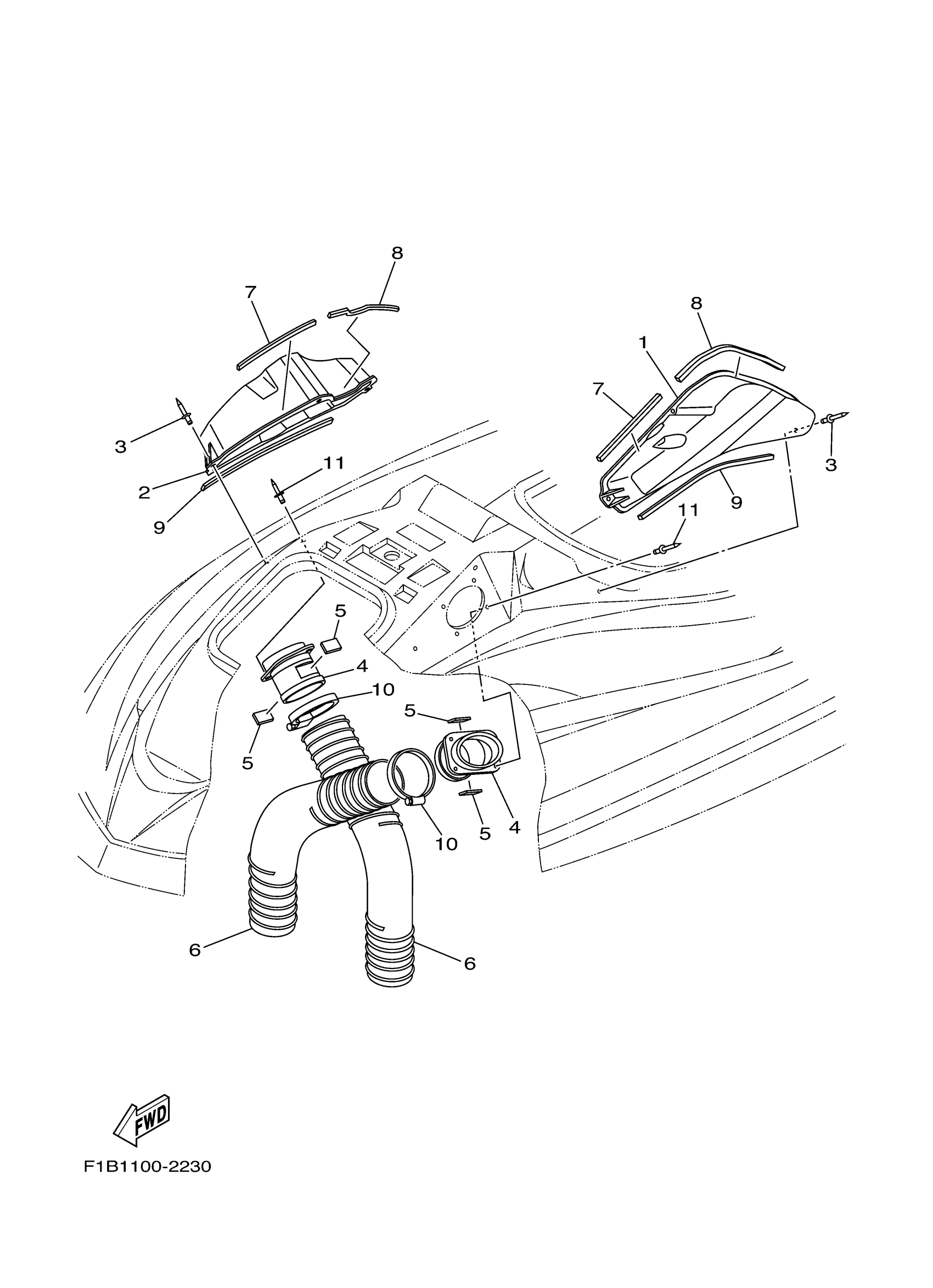

Yamaha FX1100CC (FX High Output (Cali.)) F1S11 2004 VENTILATION Diagram

#

Description
Price

1

BOX, INDUCTION 1

F1B-U2187-01-00

Unavailable

2

BOX, INDUCTION 2

F1B-U2188-00-00

Unavailable

3

RIVET, BLIND

90267-48806-00

$2.16

4

BASE, AIR INTAKE

F1B-62127-00-00

$69.10

5

PACKING

F1B-62157-00-00

$6.18

6

HOSE, VENTILATOR 2

F0X-U213G-01-00

Unavailable

7

PACKING 6

F1B-6266E-00-00

$8.07

8

PACKING 7

F1B-6266F-00-00

$8.07

9

PACKING 8

F1B-6266G-00-00

$11.75

10

BAND

90601-200U7-00

$3.01

11

RIVET, BLIND

90267-48806-00

$2.16
