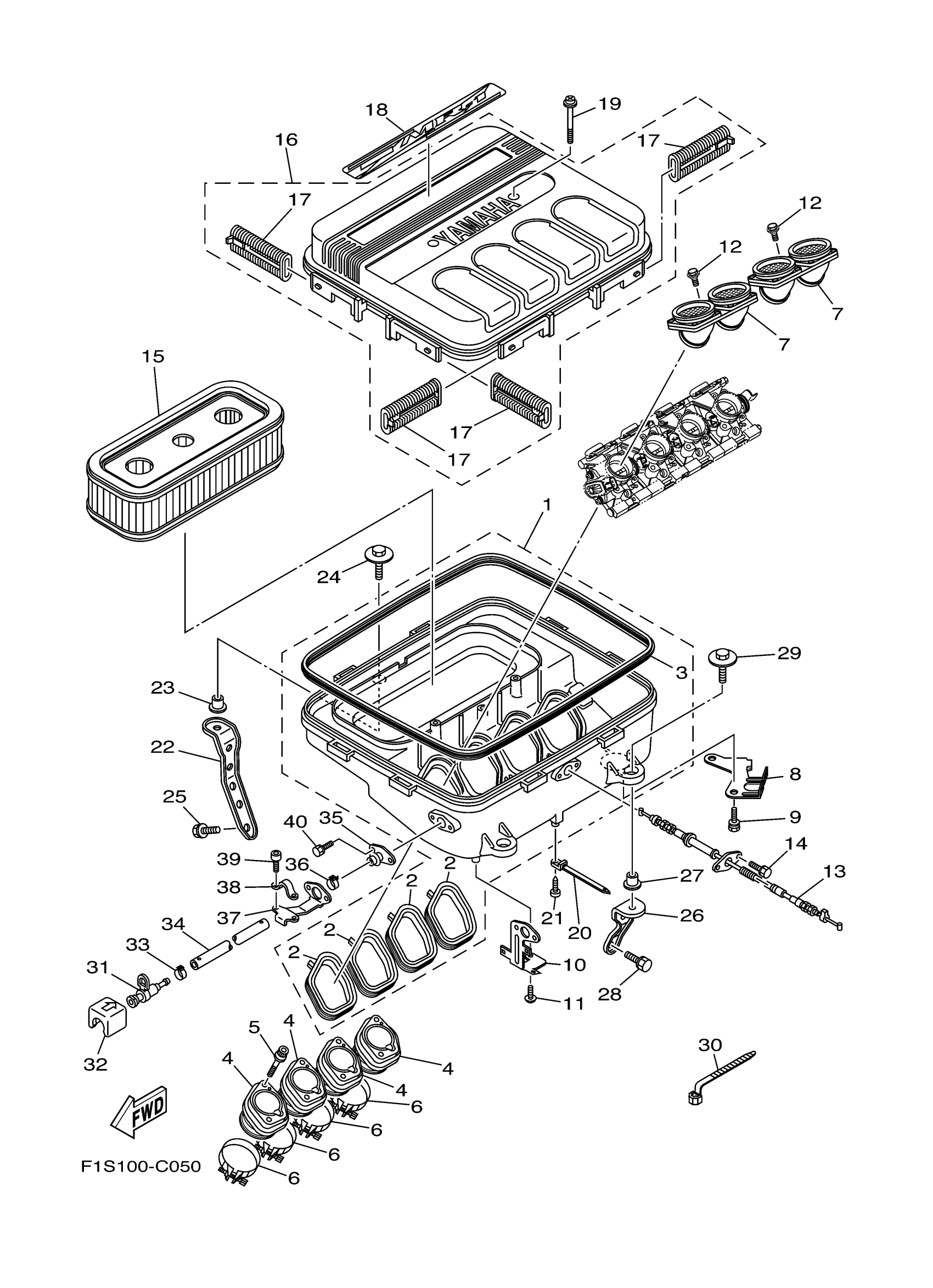

Yamaha FX1100CC (FX High Output (Cali.)) F1S11 2004 INTAKE Diagram

#

Description
Price

1

AIR CLEANER ASSY.

6B6-14410-02-00

$234.83

2

SEAL

6B6-14239-01-00

Unavailable

3

. SEAL

60E-14457-00-00

$24.23

4

JOINT, THROTTLE BODY 1

6B6-13795-00-00

$81.80

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

$4.09

6

HOSE CLAMP ASSY

90450-57002-00

$17.95

7

RIBBON, SUB ASSY

6B6-1440A-00-00

$340.89

8

BRACKET 3

6B6-14869-00-00

Unavailable

9

BOLT, WITH WASHER(61B)

97513-06516-00

$1.55

10

BRACKET

60E-14867-00-00

Unavailable

11

SCREW, ROUND TAPPING

90160-05003-00

$6.99

12

BOLT

90109-06053-00

$3.70

13

CABLE, THROTTLE 1

6B6-26311-02-00

Unavailable

14

BOLT, WITH WASHER

90119-06078-00

$2.27

15

ELEMENT, AIR CLEANER

6B6-14451-01-00

$72.50

16

AIR CLEANER ASSY 2

6B6-14420-00-00

$134.83

17

. HOLDER

66V-13898-00-00

$8.51

18

GRAPHIC 1

6B6-2339E-00-00

$66.65

19

SCREW, WITH WASHER

90159-05006-00

Unavailable

20

CLAMP

90465-12M53-00

$5.00

21

SCREW, ROUND TAPPING

90160-05003-00

$6.99

22

STAY

60E-14413-00-00

$18.49

23

COLLAR

60E-14449-00-94

$15.00

24

BOLT, WITH WASHER

90119-08050-00

$4.44

25

BOLT, WITH WASHER

90119-08032-00

$4.09

26

STAY 2

60E-14414-00-00

$15.89

27

COLLAR

60E-14449-00-94

$15.00

28

BOLT, WITH WASHER

90119-08050-00

$4.44

29

BOLT, WITH WASHER

90119-08032-00

$4.09

30

CLAMP

90464-20005-00

$2.11

31

FUEL PIPE JOINT

60E-24300-01-00

$30.99

32

COVER

60E-24474-00-00

$3.64

33

HOSE CLAMP ASSY

90450-17M17-00

$7.40

34

HOSE

60E-14294-03-00

Unavailable

35

SEAL

60E-24329-00-00

$5.91

36

CLIP

90467-09120-00

Unavailable

37

STAY

60E-24364-00-00

Unavailable

38

CLAMP, FUEL PIPE 1

60E-24366-00-00

Unavailable

39

BOLT

91380-04008-00

$5.45

40

BOLT, WITH WASHER(61B)

97513-06516-00

$1.55
